Side View Mirror

REMOVAL

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.




1. Disconnect the negative battery cable.
2. Remove the door interior trim panel.
3. Disconnect the sideview mirror harness connector.

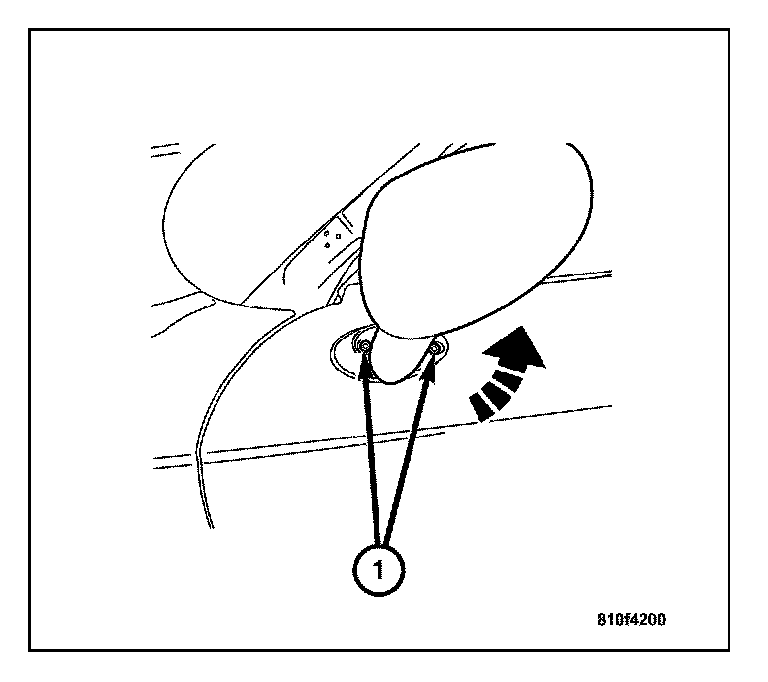

4. Rotate the sideview mirror upward in order to expose the attaching screws.
5. Remove the two screws attaching the mirror to the door and remove the mirror.

INSTALLATION

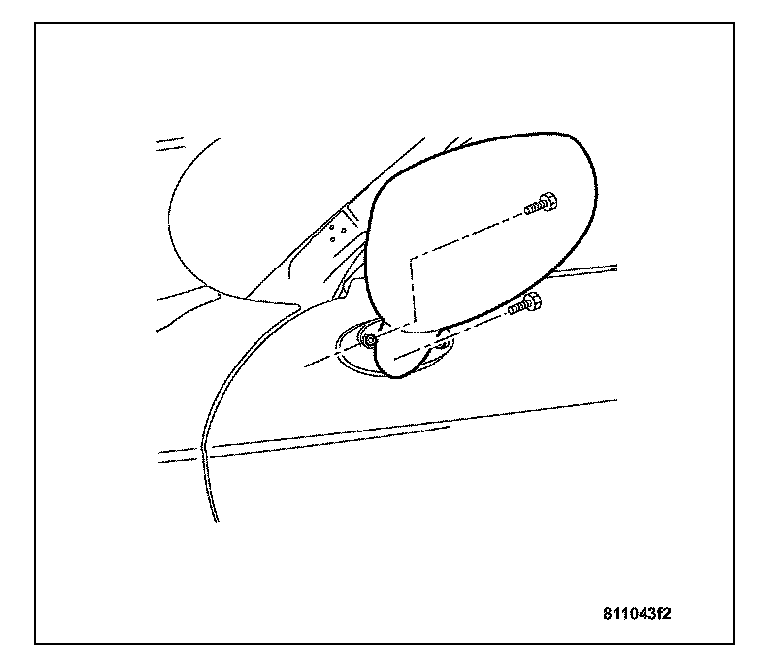

1. Install the two screws (1) attaching the mirror to the door.
2. Connect the sideview mirror harness connector.
3. Install the door interior trim panel.
4. Rotate the mirror back to its rest position.
5. Connect the negative battery cable.
