Roadster



REMOVAL

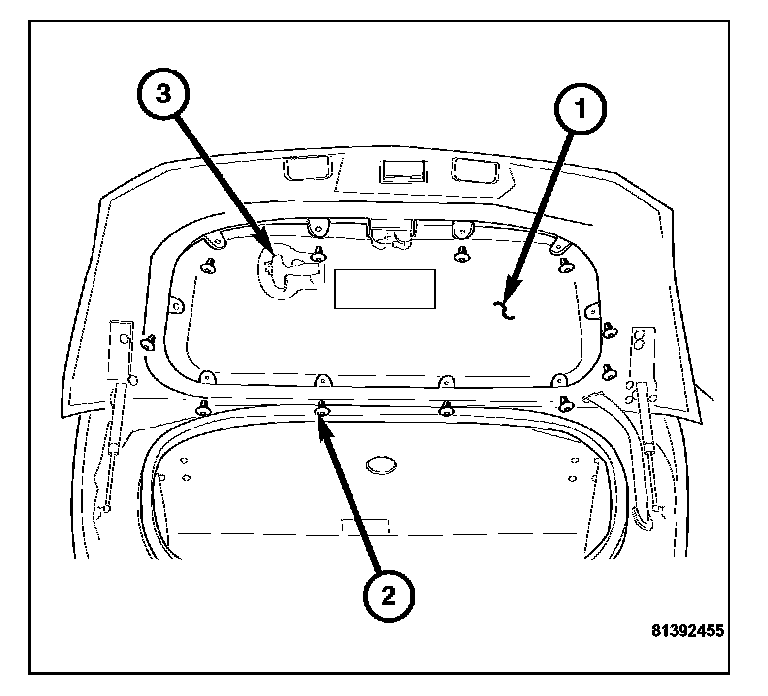

1. Remove the decklid trim fasteners (2).
2. Disconnect the emergency release cable (3) and remove from the trim panel (1).

INSTALLATION

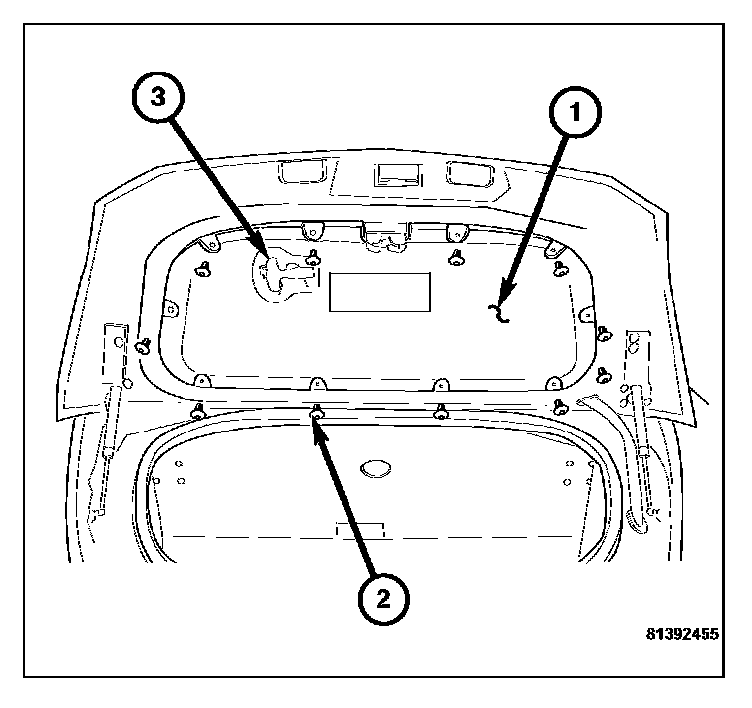

1. Install the emergency release handle (3) into the trim panel (1).
2. Connect the emergency release cable and install the trim panel (1) to the decklid using the fasteners (2).
