Headliner: Service and Repair

HEADLINER

REMOVAL

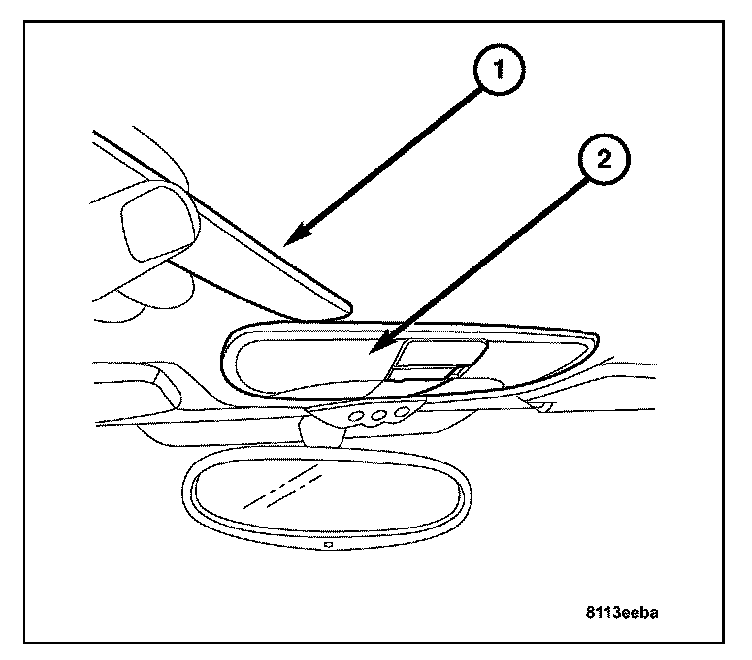

1. Remove the dome lamp assembly (2) by gently prying off the lens using a trim stick (1) or equivalent.

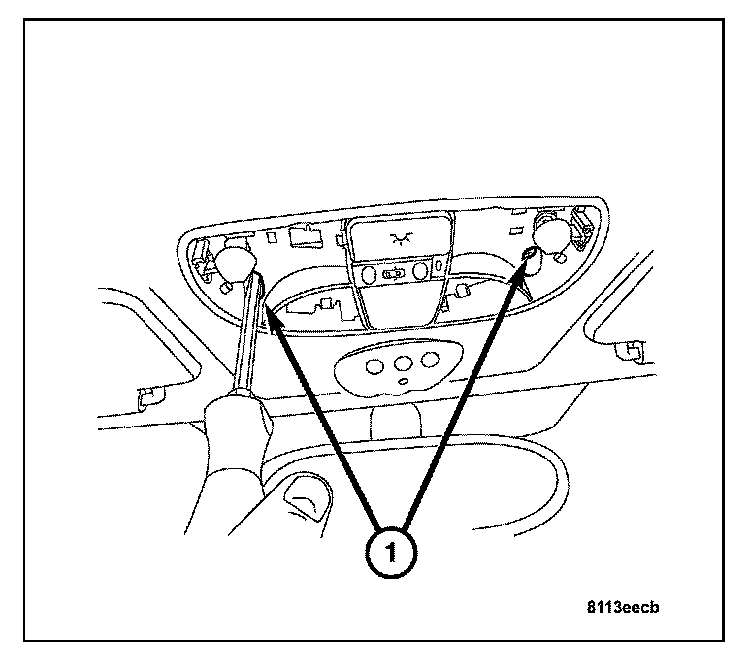

2. Remove the two retaining screws (1) and pull the dome lamp assembly from the headliner.

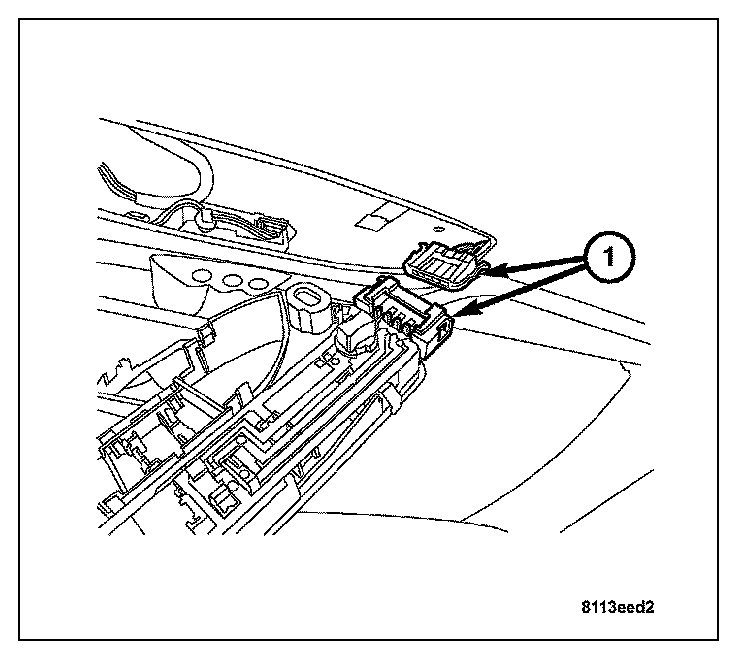

3. Disconnect the dome lamp assembly harness connector (1) and remove the dome lamp assembly.

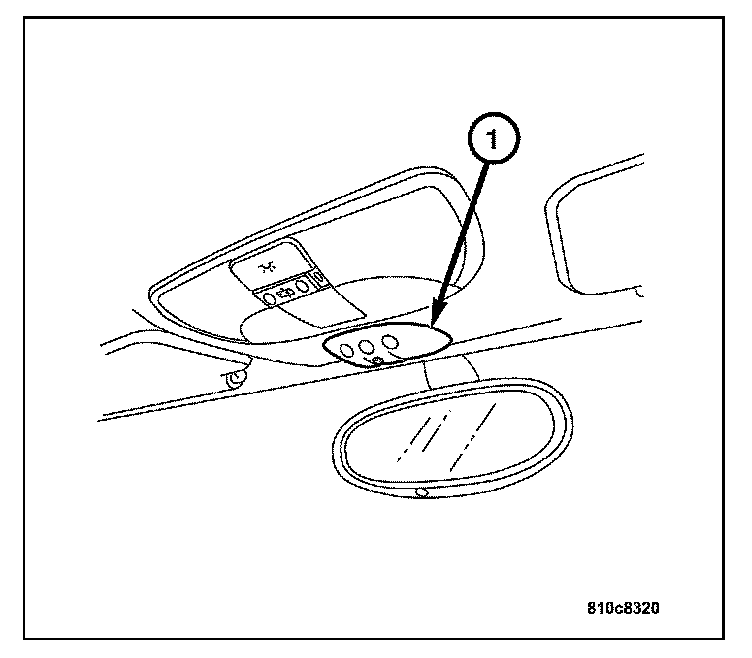

4. Remove the universal garage door opener/TPM module (1) from the headliner using a trim stick or equivalent. Pull the module from the headliner and disconnect the harness connector.
5. Remove both the right and left sun visor assemblies.




6. Remove the right and left A-pillar trim panels.
7. Tilt both seats all the way forward and all the way down.

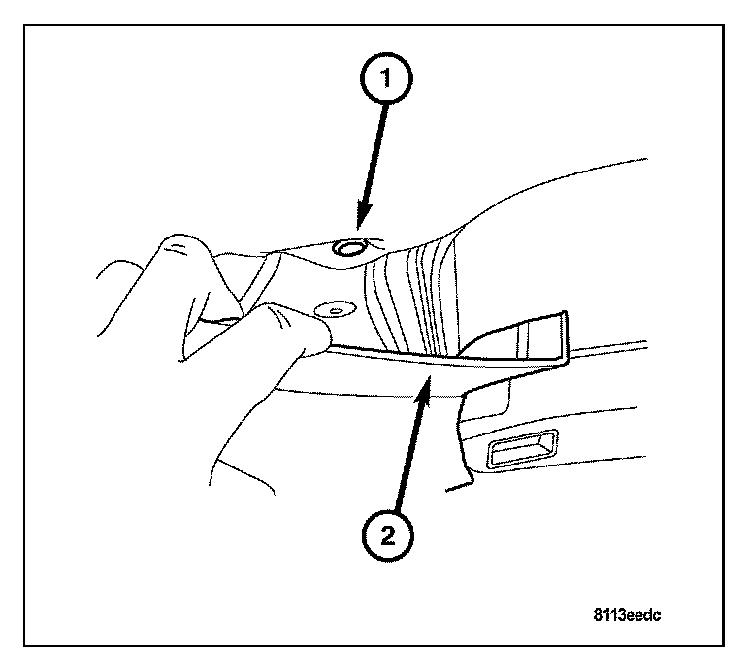

8. Disengage rear interior trim panel (2) retaining clips near headliner.
9. Remove the rear headliner retaining clips (1).
10. Remove the headliner from the passenger door opening.

INSTALLATION

1. Install the headliner through the passenger door opening.
2. Install the sun visor assemblies. This will hold the headliner into the correct position.




3. Install the rear headliner retainers (2).

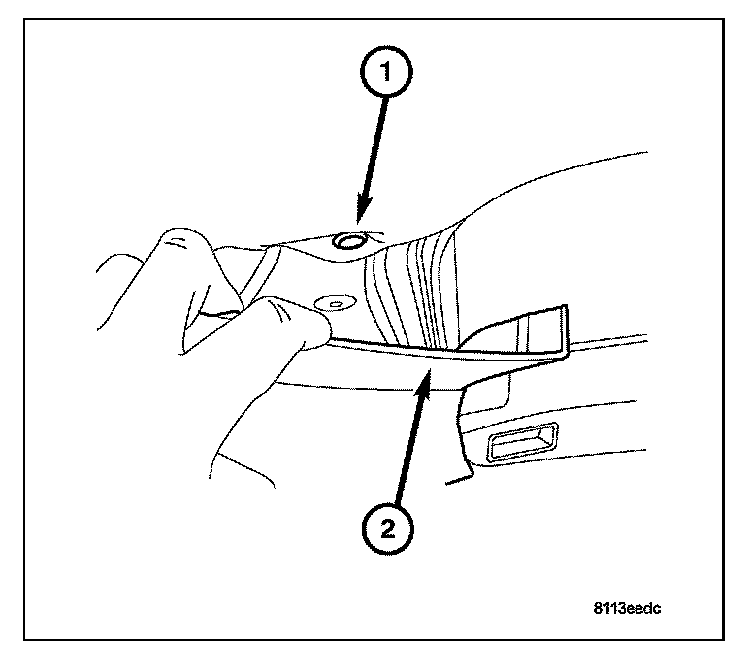

4. Connect the rear interior trim panel retaining clips (1) near headliner.

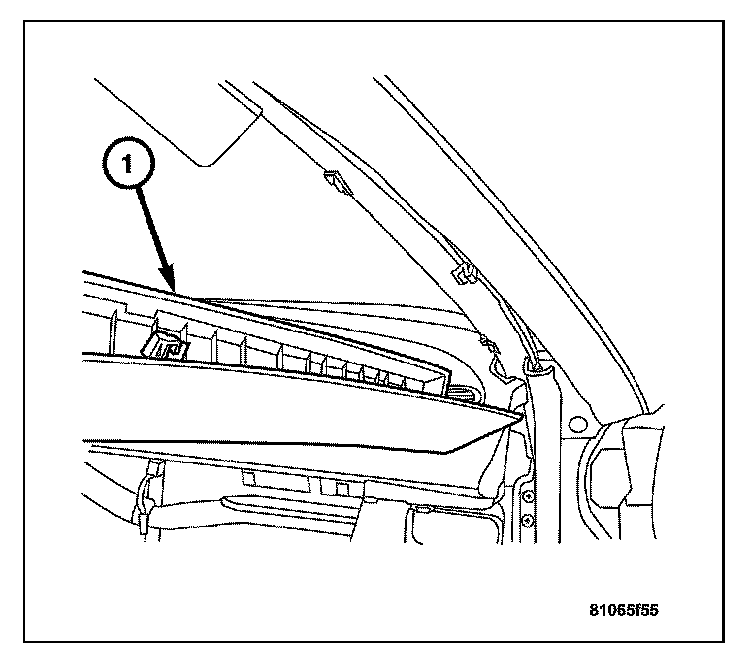

5. Install the right and left A-pillar trim panels (1).
6. Using a trim stick, reinstall head liner into upper window weather strips.




7. Connect the universal garage door opener/TPM module (1) harness connector and install into the headliner.

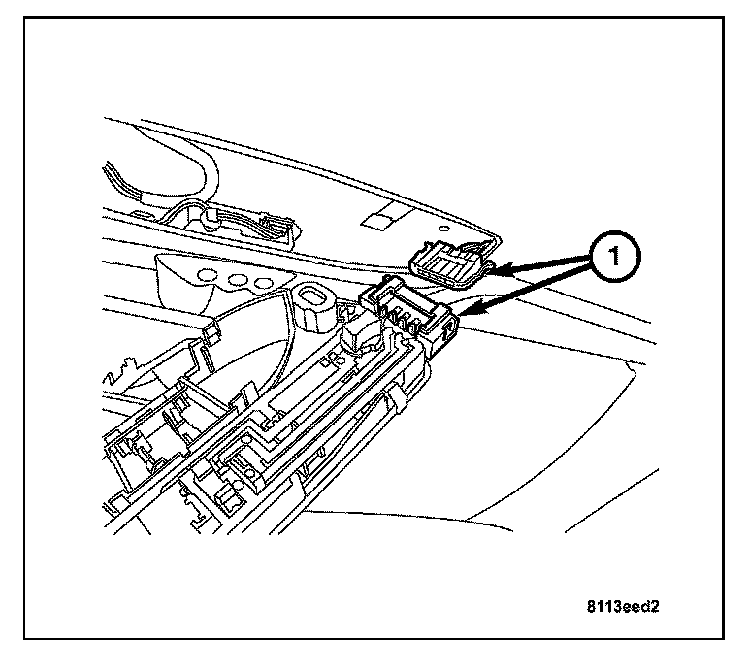

8. Connect the dome lamp assembly harness connector (1) and install into the headliner.




9. Install the retaining screws (1).
10. Install the dome lamp assembly lens.
