Disassembly & Assembly

DISASSEMBLY

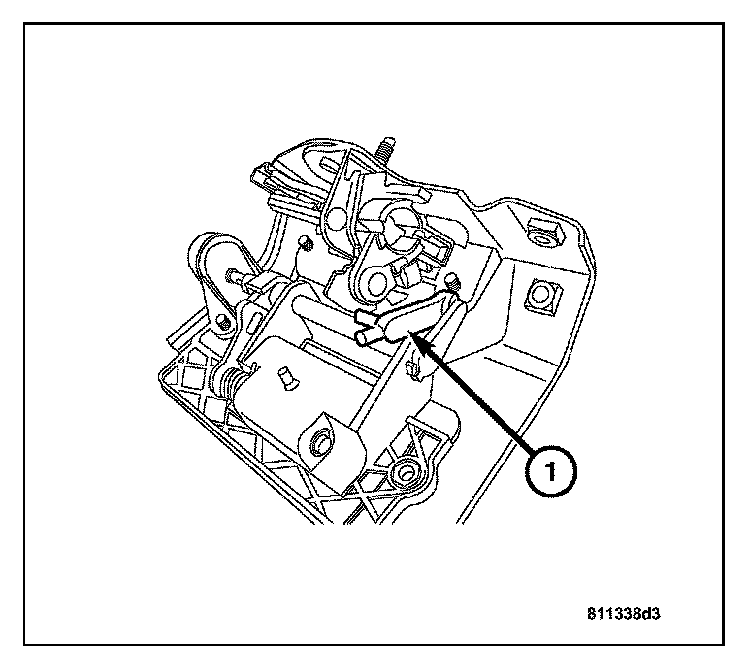

1. Disconnect the rear liftgate release handle linkage by pushing the arm (1) up off the linkage and then pulling the linkage out of the latch.

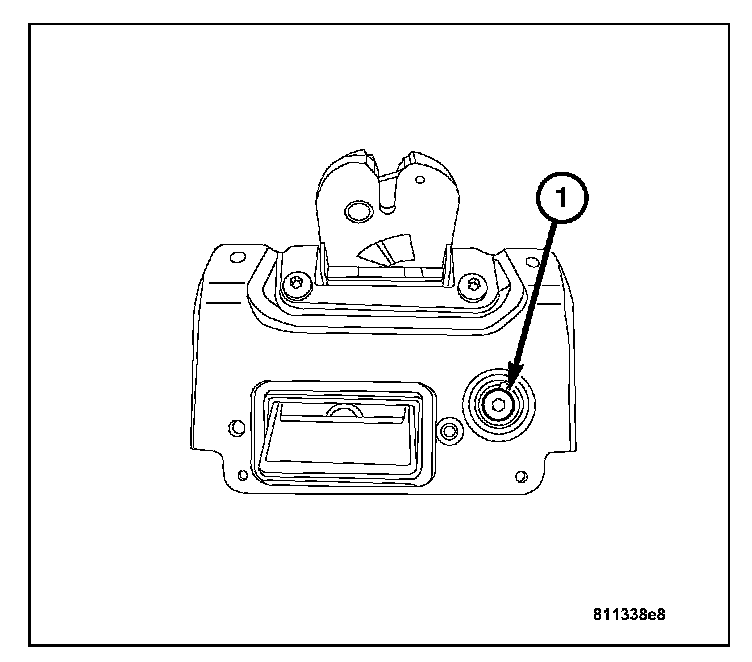

2. Remove the remaining handle retaining bolt (1) and remove the handle assembly from the latch assembly bracket.

ASSEMBLY

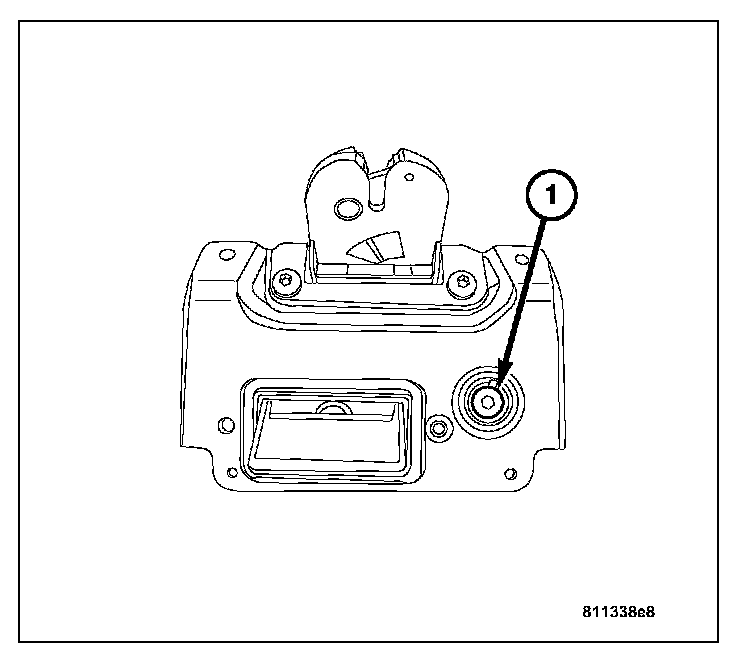

1. Install the liftgate release handle assembly on the latch bracket. Install the retaining bolt (1). Tighten to 8 N.m (71 in. lbs.).

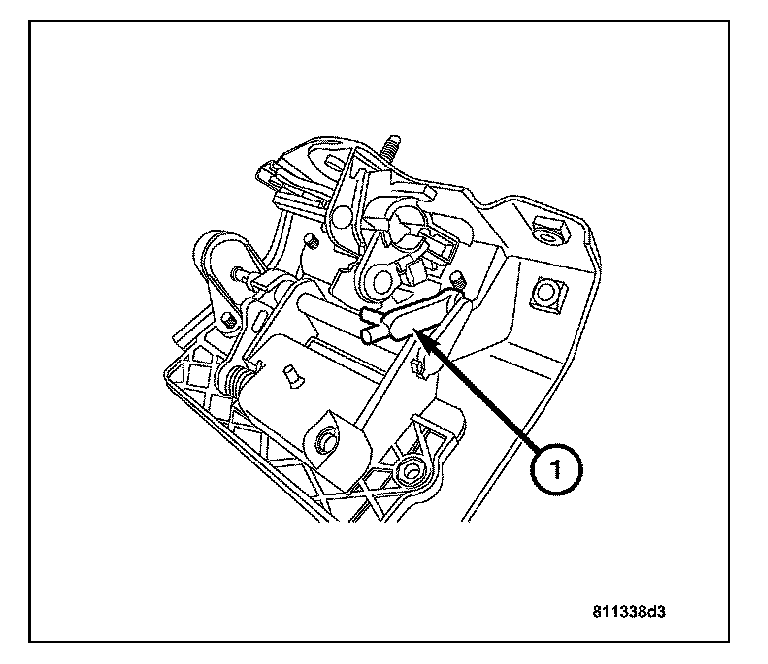

2. Connect the rear liftgate release handle linkage (1).
