Trunk / Liftgate Interior Trim Panel: Service and Repair

TRIM PANEL

REMOVAL

REMOVAL - COUPE

LOWER LIFTGATE TRIM PANEL

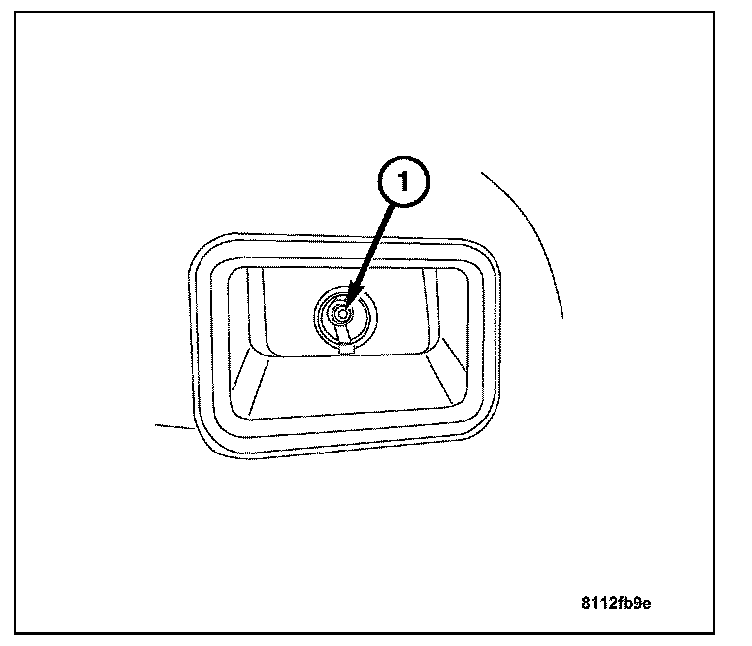

1. Remove the handle trim screw (1).

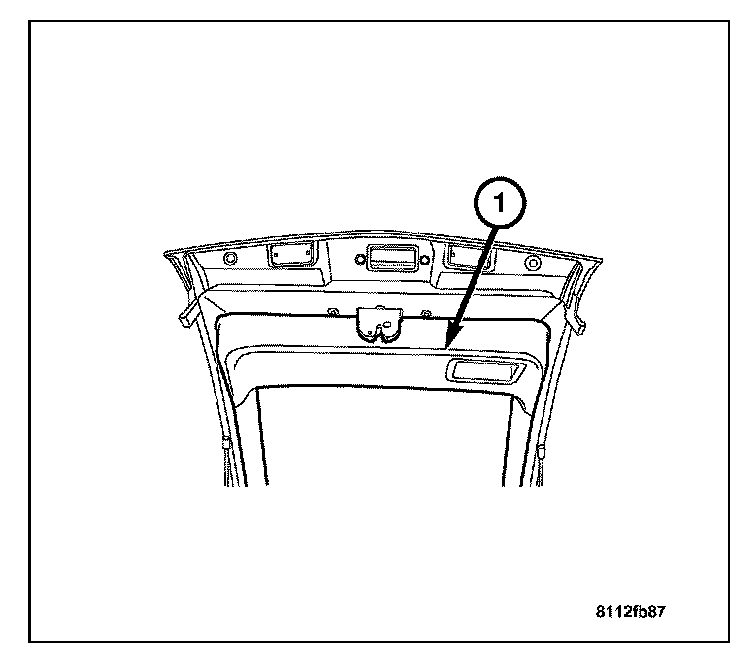

2. Pull down on the lower liftgate trim panel (1) to release it from the liftgate.

UPPER LIFTGATE TRIM PANEL

1. Remove the lower trim panel.

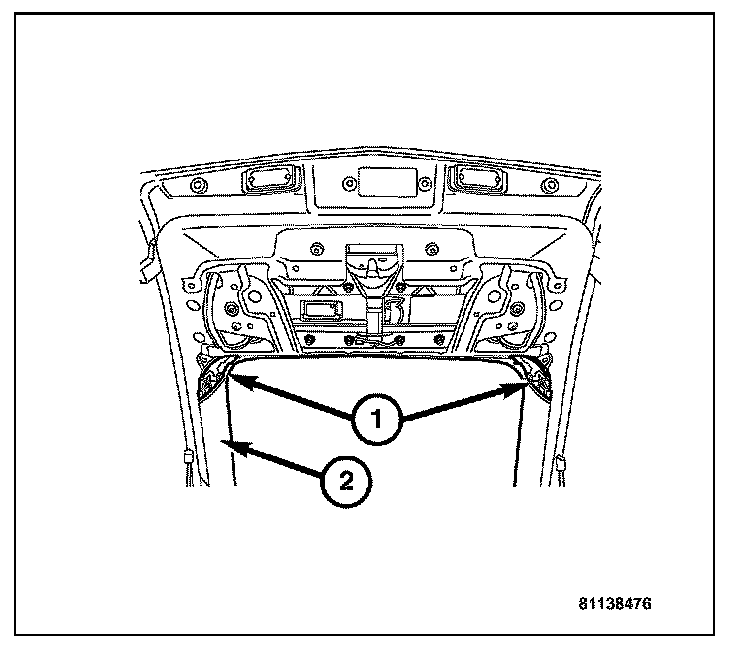

2. Remove the two screws (1) attaching the upper liftgate trim panel (2) to the liftgate.
3. Pull down on the upper liftgate trim panel (2) to release it from the liftgate.

REMOVAL - ROADSTER

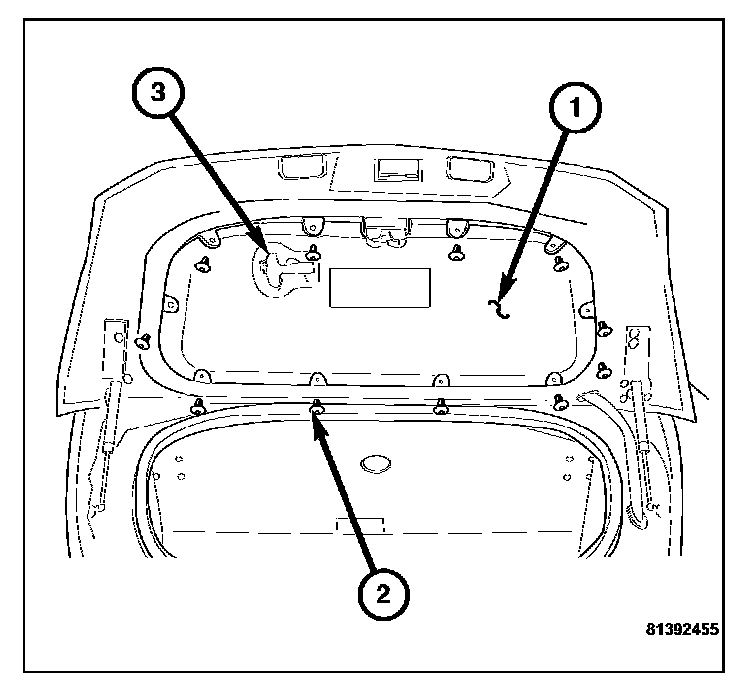

1. Remove the decklid trim fasteners (2).
2. Disconnect the emergency release cable (3) and remove from the trim panel (1).

INSTALLATION

INSTALLATION - COUPE

UPPER LIFTGATE TRIM PANEL




1. Push up on the upper liftgate trim panel (2) to attach it to the liftgate.

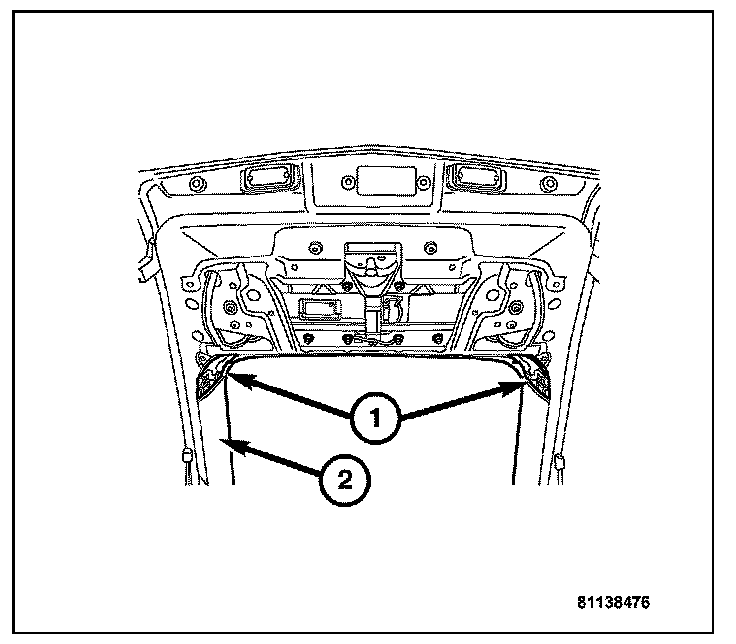

2. Install the two screws (1) attaching the upper liftgate trim panel (2) to the liftgate.
3. Install the lower trim panel.

LOWER LIFTGATE TRIM PANEL




1. Push on the lower liftgate trim panel (1) to attach the retainers to the liftgate.




2. Install the handle trim screw (1).

INSTALLATION - ROADSTER

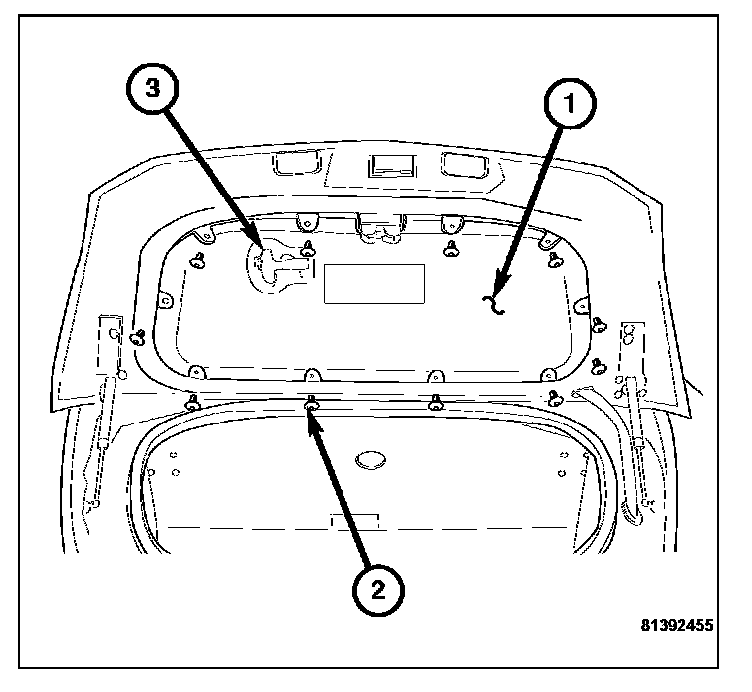

1. Install the emergency release handle (3) into the trim panel (1).
2. Connect the emergency release cable and install the trim panel (1) to the decklid using the fasteners (2).
