Liftgate Bumper

REMOVAL




1. Open the liftgate.

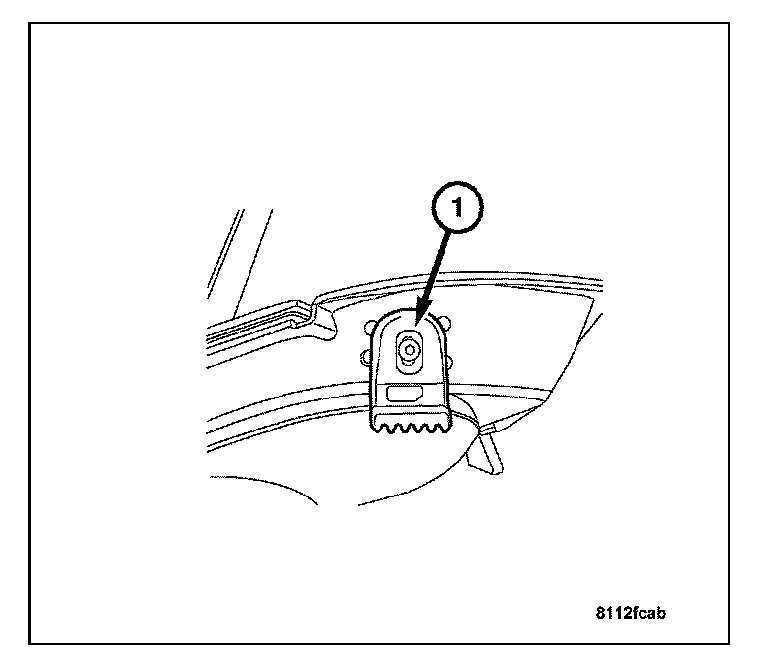

2. Remove the bolt (1) attaching the bumper to the liftgate.

INSTALLATION
1. Position the bumper, then install the bolt attaching the bumper to the liftgate. Do not tighten the bolt at this time.
2. Close the liftgate and align it with the quarter panels.
3. Tighten the liftgate bumper bolt.
