Fuel Door: Service and Repair

FUEL FILL DOOR

REMOVAL

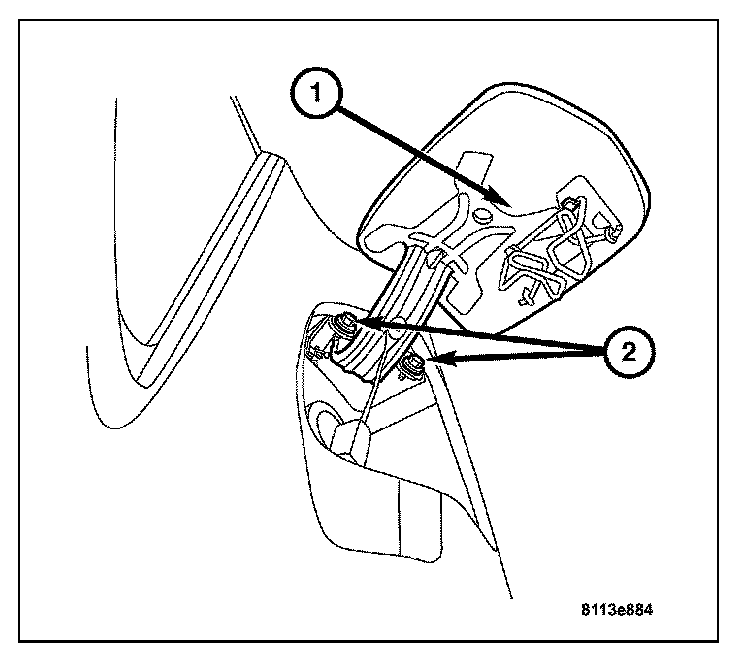

1. Open the fuel filler door (1).
2. Remove the two bolts (2).
3. Remove the fuel filler door.

INSTALLATION

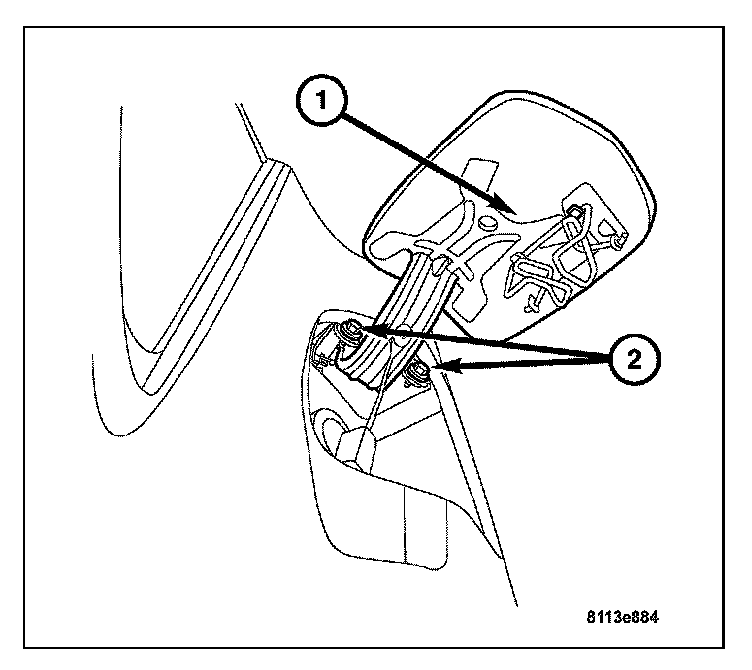

1. Install the fuel filler door (1) to the vehicle.
2. Install the two bolts (2).
3. Verify correct alignment of the fuel filler door and the body. Refer to Body and Frame / Specifications / Dimensions.
