Tow Sensor: Service and Repair

REMOVAL
1. Remove the right side trunk inner trim panel.

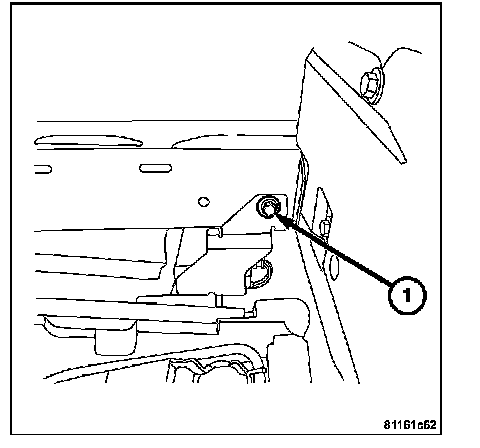

2. Remove the bolt (1) from the anti-theft tow sensor bracket.

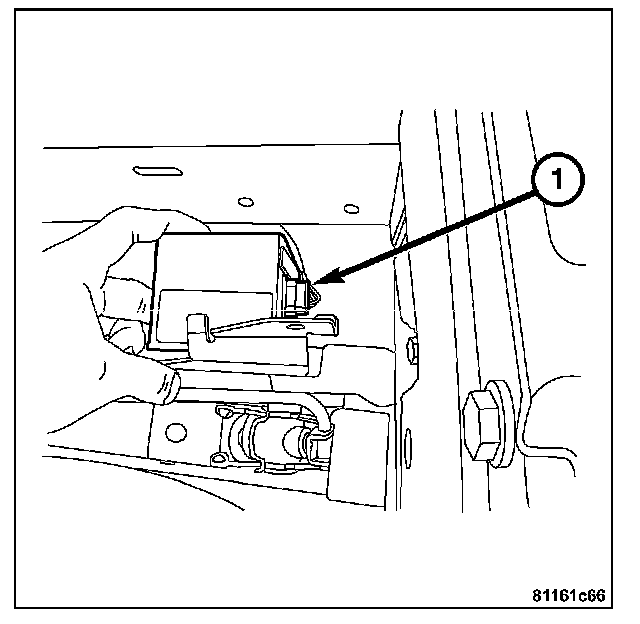

3. Disconnect the anti-theft tow sensor electrical connector (1).

INSTALLATION

NOTE: Install the anti-theft tow sensor with the "UP" mark properly positioned.




1. Connect the anti-theft tow sensor electrical connector (1).

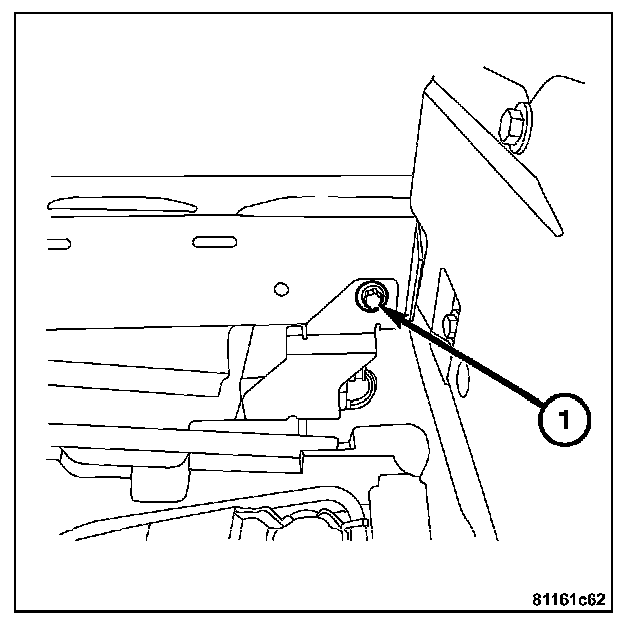

2. Install the bolt (1) to the anti-theft tow sensor bracket.
3. Install the right side trunk inner trim panel.
