Home >> Chrysler >> 2005 >> Crossfire SRT-6 V6-3.2L SC VIN N >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Entry Relay >> Locations

Keyless Entry Relay: Locations

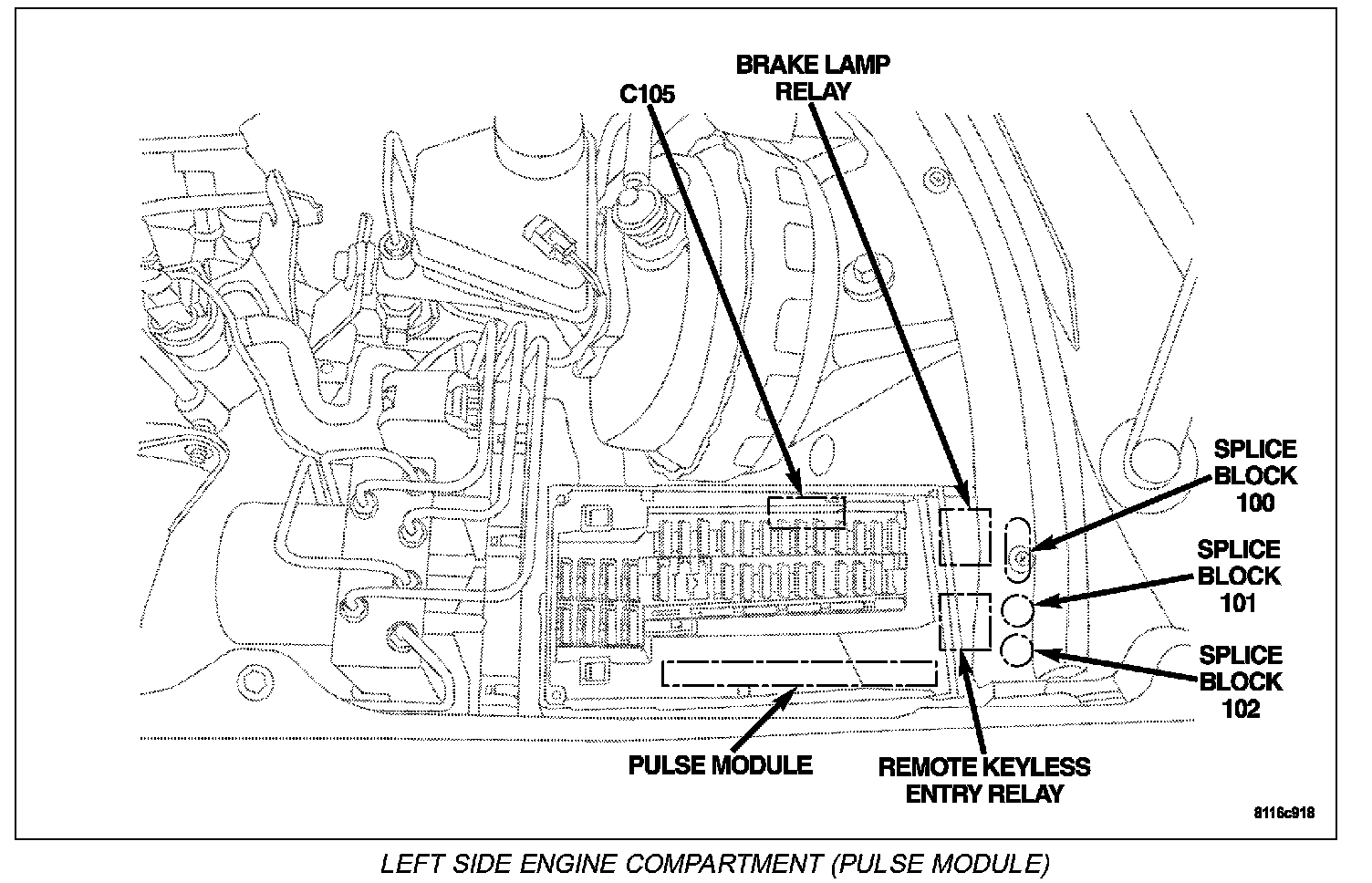

Left Side Engine Compartment (Pulse Module):
