Arm/Disarm Switch: Service and Repair

REMOVAL
1. Remove the heated seat switches.

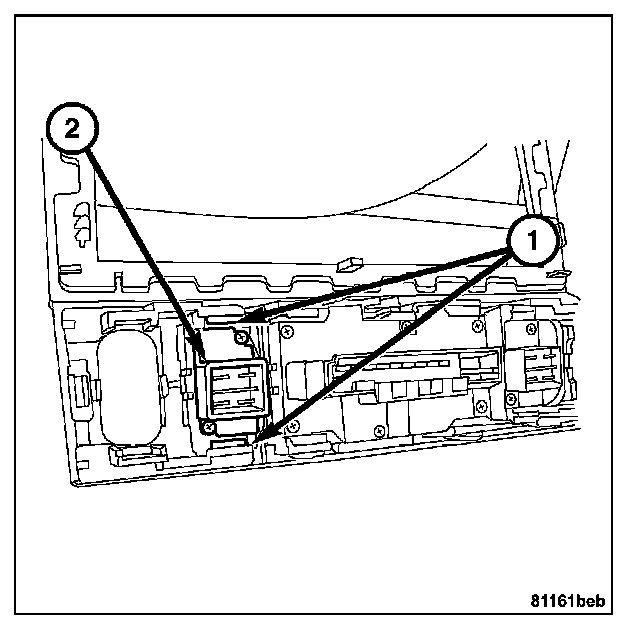

2. Carefully depress tabs (1) inward to remove the tow-away alarm switch (2).

INSTALLATION
1. Install the tow-away alarm switch (2) and secure it by snapping the retaining tabs (1) into place.




2. Install the heated seat switches.
