Alarm Horn: Service and Repair

SIREN

REMOVAL
1. Remove the cowl grille.

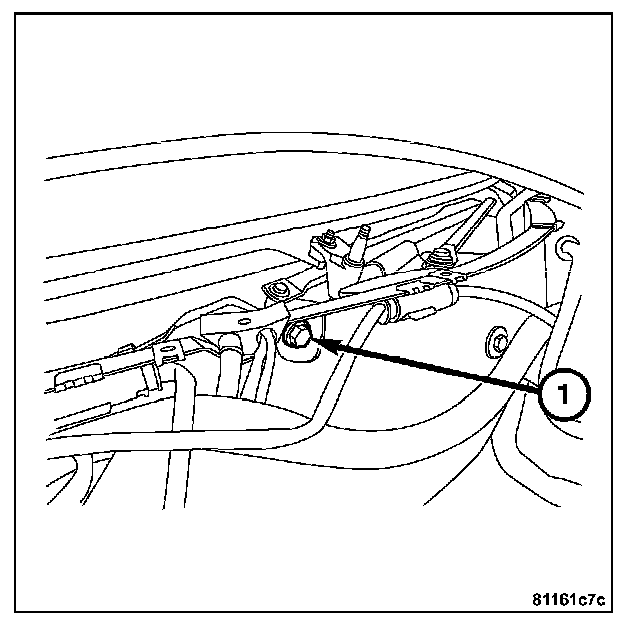

2. Remove the bolt (1) from the siren bracket.

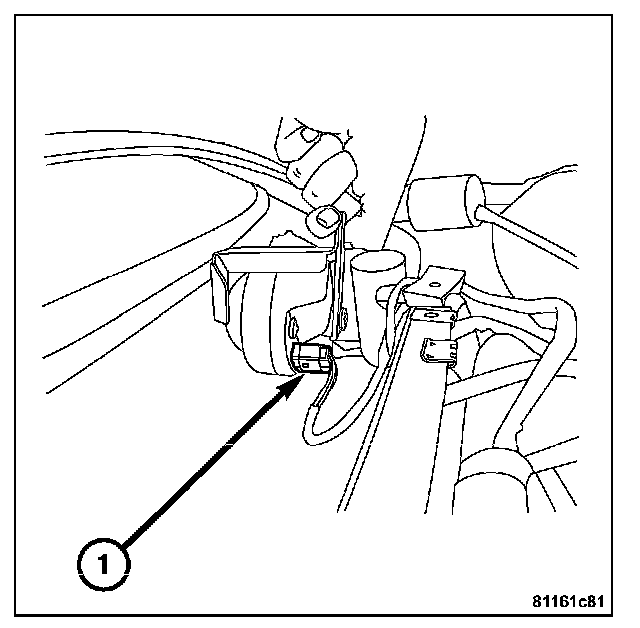

3. Disconnect the siren electrical connector (1).

INSTALLATION




1. Connect the siren electrical connector (1).




2. Install the bolt (1) to the siren bracket.
3. Install the cowl grille..
