Antenna Body and Cable - Convertible

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Pull the left side trunk liner aside.

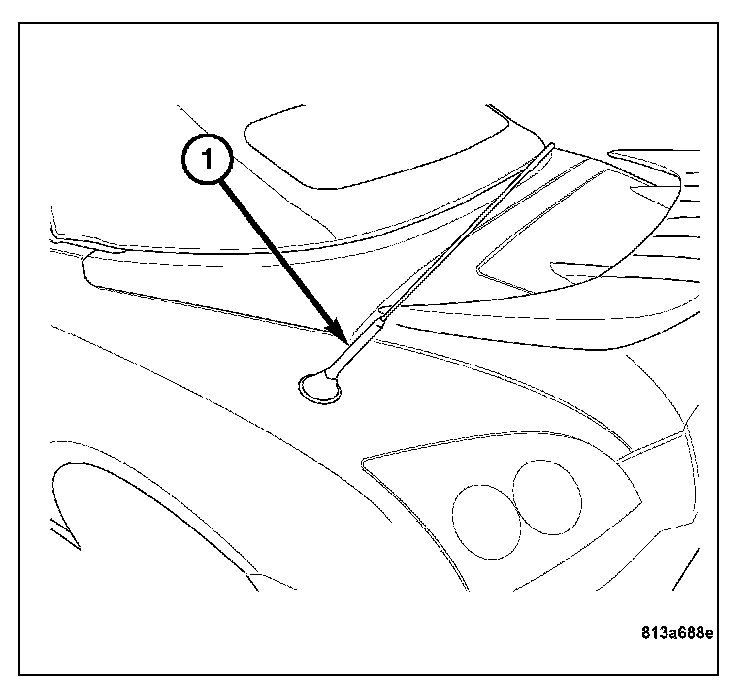

3. Remove antenna mast (1) by unscrewing mast from antenna body.
4. Remove the retaining nut from the underside of the mounting bracket.
5. Pull antenna body up through the rubber grommet.
6. Unplug antenna lead from base of antenna body.

INSTALLATION




1. Insert antenna lead to base of antenna body.
2. Push antenna body down through the rubber grommet.
3. Install the nut onto the mounting bracket and tighten.
4. Install antenna mast (1). Tighten to 12 N.m (106 in. lbs.). Ensure that the antenna mast is fully seated on antenna base and that there is no gap between the mast and base.
5. Install trunk liner.
6. Connect battery negative cable.
