Enhanced Accident Report Driver Circuit Low

(P2513) ENHANCED ACCIDENT REPORT DRIVER CIRCUIT LOW





When Monitored and Set Condition
^ When Monitored: ignition on.
^ Set Condition: The Occupant Restraint Controller (ORC) periodically sends out a signal to the Powertrain Control Module (PCM). If the PCM does not receive the signal from the ORC, the PCM will set this DTC.

POSSIBLE CAUSES
- ENHANCED ACCIDENT REPORT DRIVER CIRCUIT SHORT TO GROUND
- ENHANCED ACCIDENT REPORT DRIVER CIRCUIT OPEN
- OCCUPANT RESTRAINT CONTROLLER
- POWERTRAIN CONTROL MODULE



Diagnostic Test
1. CHECK FOR CURRENT DTC





Turn the ignition on. With the DRBIII, read PCM DTCs.
Is this DTC present?
Yes >> For complete diagnosis of this DTC, refer to (P2513) ENHANCED ACCIDENT REPORT DRIVER CIRCUIT HIGH. Enhanced Accident Report Driver Circuit High
No >> Go To 2

2. INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.

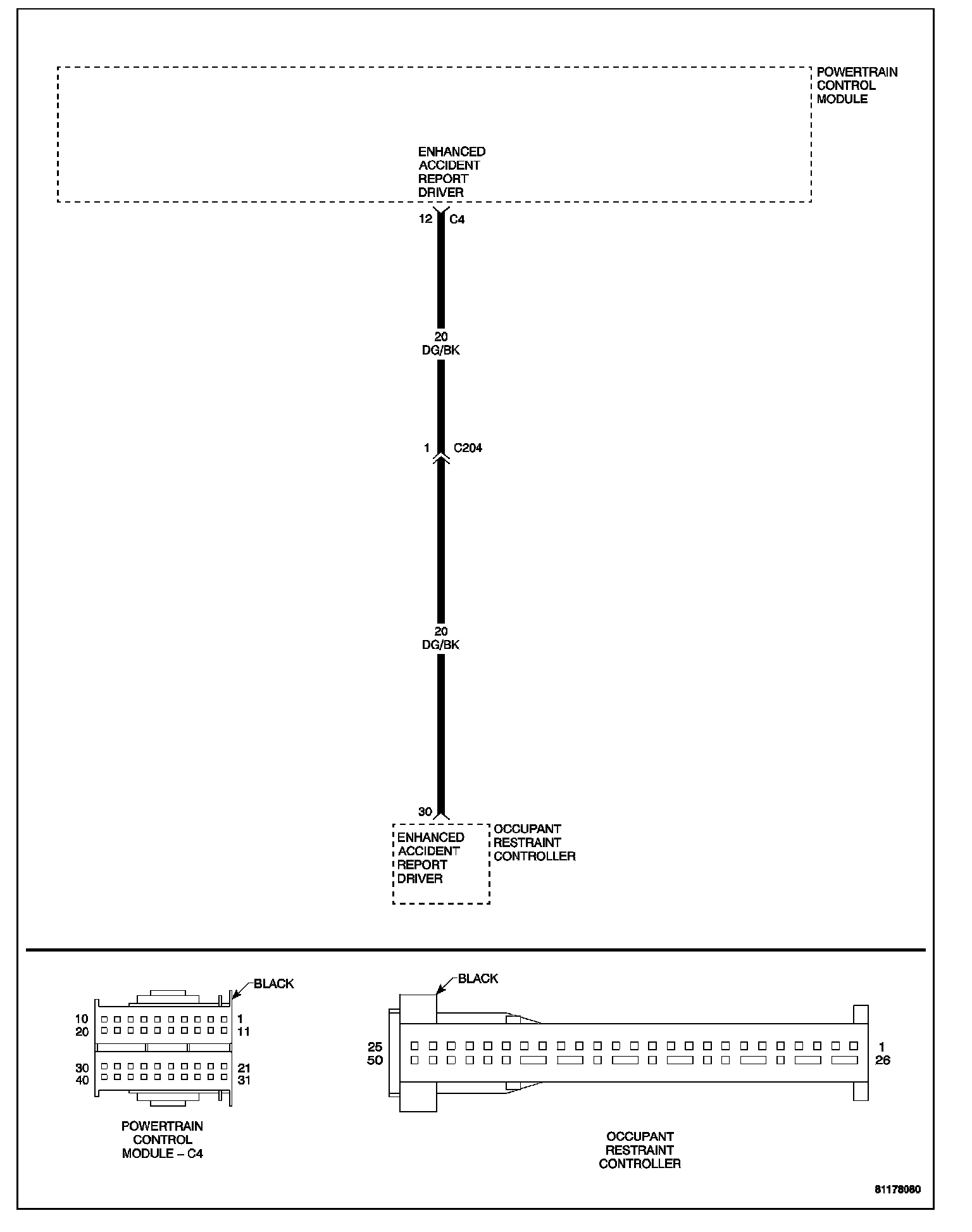

Note: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors specific to this DTC. Wiggle the wires while checking for shorts and open circuits.

Note: Check for any Technical Service Bulletins that may apply.

Were there any problems found?
Yes >> Repair as necessary. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.
No >> The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition.
