2-3 Solenoid Circuit Short to Ground

(P0758) 2-3 SOLENOID CIRCUIT SHORT TO GROUND





When Monitored and Set Condition
- When Monitored: Always monitored with system active at each ignition cycle.
- Set Condition: If the TCM detects a short to ground on the solenoid control circuit or solenoid control circuit shorted to ground in the TCM.

POSSIBLE CAUSES
- 2-3 SOLENOID CONTROL CIRCUIT SHORTED TO GROUND
- 2-3 SOLENOID CONTROL CIRCUIT SHORTED TO ANOTHER CIRCUIT
- 2-3 SOLENOID
- TRANSMISSION CONTROL MODULE

Diagnostic Test
1. CHECK FOR CURRENT DTC

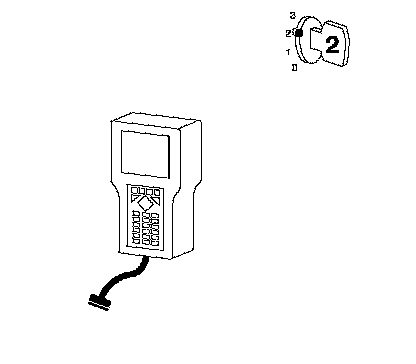

Turn the ignition on.
With the DRB III*, read the TCM DTCs.
Is this DTC preset?
Yes>>For complete diagnosis of this DTC, refer to (P0758) 2-3 SOLENOID CIRCUIT. 2-3 Solenoid Circuit
No>>Go To 2

2. INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.

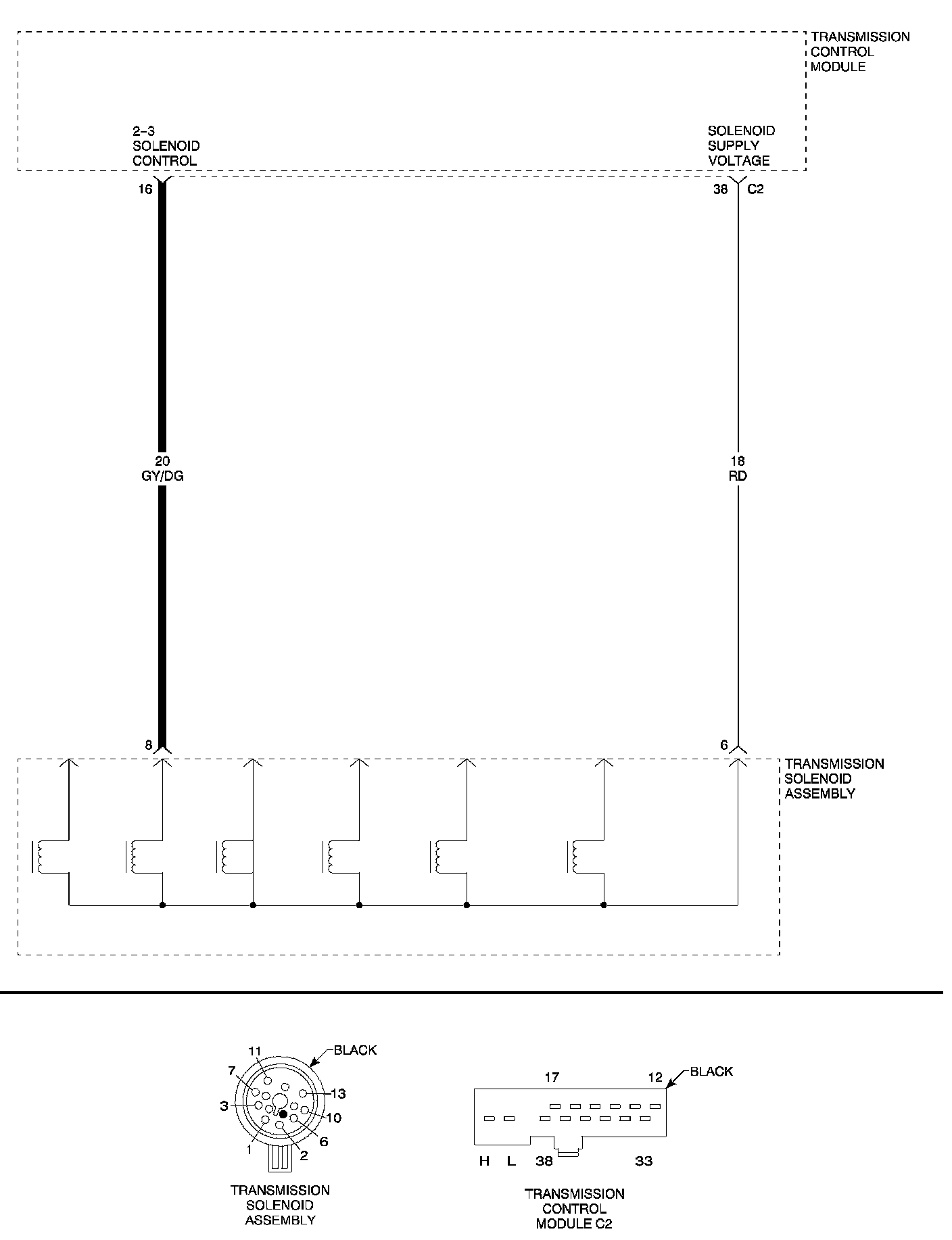

Note: Check connectors-Clean/repair as necessary. Poor pin to terminal connections can set DTCs. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors specific to this DTC. Wiggle the wires while checking for shorts and open circuits.

Note: Check for any Technical Service Bulletins that may apply.

Were there any problems found?
Yes>>Repair as necessary.
Perform NAG1 TRANSMISSION VERIFICATION TEST. Verification Tests
No>>The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition.
