ABS CAN Message Incorrect

(P0600) ABS CAN MESSAGE INCORRECT





When Monitored and Set Condition
- When Monitored: ABS CAN messages received at least once and CAN Bus Circuit is not active.
- Set Condition: DTC Detected if the number of bytes incorrect for CAN ID.

POSSIBLE CAUSES
- CONTROLLER ANTILOCK BRAKE MODULE
- TRANSMISSION CONTROL MODULE

Diagnostic Test
1. PRE-DIAGNOSTIC CHECK OUT





Note: Low fluid level can be the cause of many transmission problems. If the fluid level is low, locate and repair the leak then check and adjust the fluid level in accordance with the Service Information.

Note: Always perform diagnostics with a fully charged battery to avoid false symptoms.

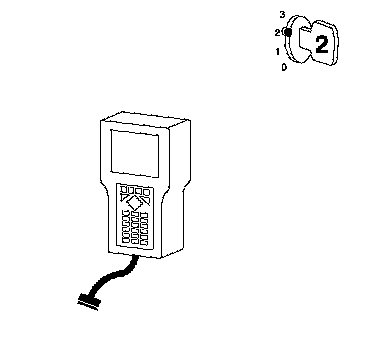

With the DRB III*, read the engine DTCs. Check and repair all engine DTCs prior to performing transmission symptom diagnostics.
With the DRB III*, read and record all Transmission DTCs.

Note: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs.

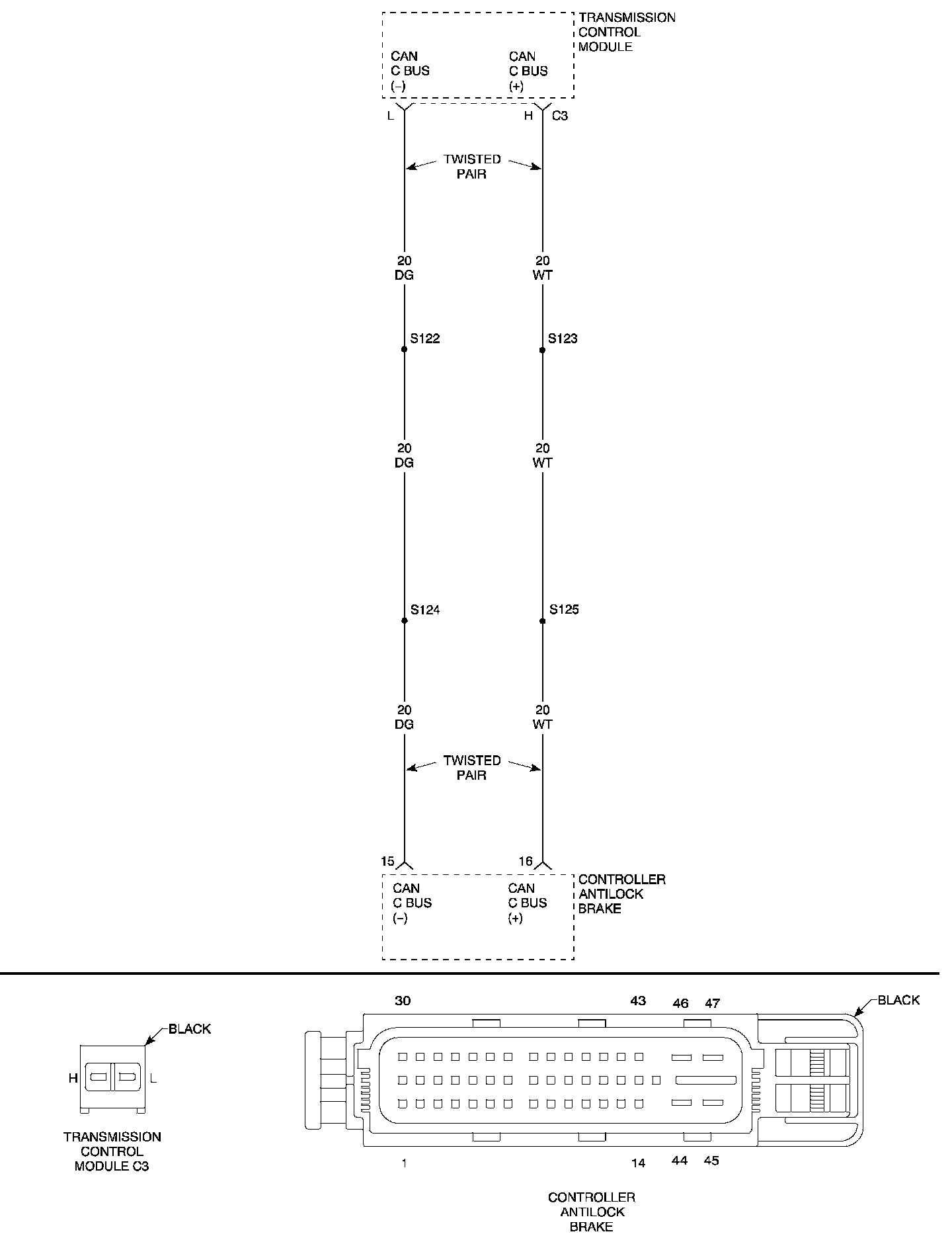

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Repair as necessary.
Most DTCs set on start up but some must be set by driving the vehicle such that all diagnostic monitors have run.

Note: Verify flash level of transmission controller. Some problems are corrected by software upgrades to the transmission controller.

Note: Check for any Technical Service Bulletins that may apply.

Perform this procedure prior to Symptom diagnosis.
Continue
Go To 2

2. CAB - INTERNAL

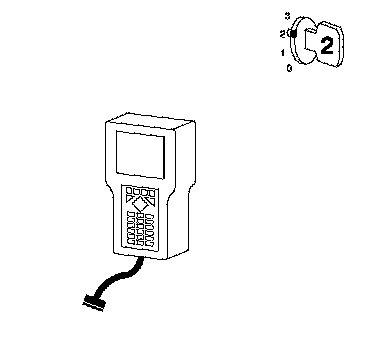

Turn the ignition off.
Replace the Controller Antilock Brake Module.
Turn the ignition on.
With the DRB III*, erase Transmission DTCs.
Start the engine and with the brakes firmly applied place the gear selector into Drive.
With the DRB III*, read Transmission DTCs.
Did DTC (P0600) ABS CAN MESSAGE INCORRECT set again?
Yes>>Replace the Transmission Control Module. Perform NAG1 TRANSMISSION VERIFICATION TEST. Verification Tests
No>>Test Complete.
