Camshaft Position Timing Over-Advanced

(P0341) CAMSHAFT POSITION TIMING OVER-ADVANCED





When Monitored and Set Condition
^ When Monitored: Engine cranking and engine running
^ Set Condition: If the Camshaft Position Signal (angular variation) is more than 150 of the Crankshaft Position Signal, this DTC is set.

POSSIBLE CAUSES
- CAMSHAFT POSITION SENSOR WIRE HARNESS
- TONE WHEEL/PULSE RING
- CAMSHAFT POSITION SENSOR
- TIMING CHAIN



Diagnostic Test
1. CHECK FOR CURRENT DTC





Turn the ignition on. With the DRBIII, read PCM DTCs.
Is this DTC present?
Yes >> For complete diagnosis of this DTC, refer to (P0341) CAMSHAFT POSITION TIMING OVER-RETARDED. Camshaft Position Timing Over-Retarded
No >> Go To 2

2. INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.

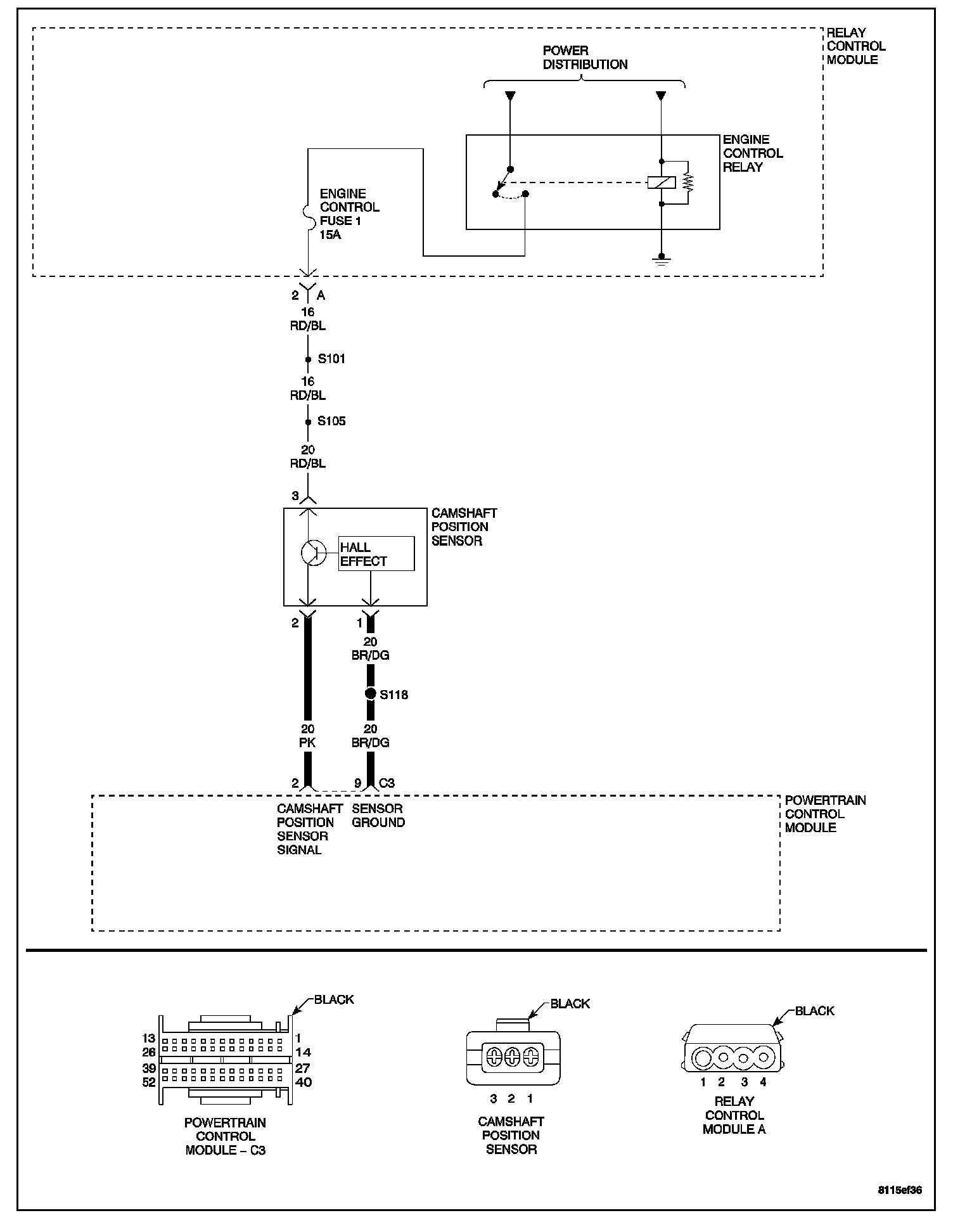

Note: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors specific to this DTC. Wiggle the wires while checking for shorts and open circuits.

Note: Check for any Technical Service Bulletins that may apply.

Were there any problems found?
Yes >> Repair as necessary. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.
No >> The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition.
