Knock Sensor 1 Circuit High

(P0325) KNOCK SENSOR 1 CIRCUIT HIGH





When Monitored and Set Condition
^ When Monitored: With the Engine at operating temperature, engine speed greater than 2000 RPM, load greater than 40%, and Anti-Knock control not active.
^ Set Condition: Knock Sensor voltage is greater than 4.98 volts.

POSSIBLE CAUSES
- KNOCK SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
- SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE
- KNOCK SENSOR
- POWERTRAIN CONTROL MODULE



Diagnostic Test
1. CHECK FOR CURRENT DTC

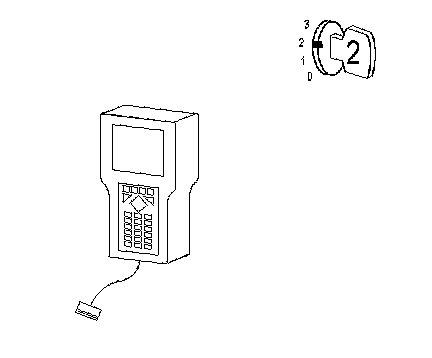

Turn the ignition on. With the DRBIII, read PCM DTCs.
Is this DTC present?
Yes >> For complete diagnosis of this DTC, refer to (P0325) KNOCK SENSOR 1 CIRCUIT LOW. Knock Sensor 1 Circuit Low
No >> Go To 2

2. INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.

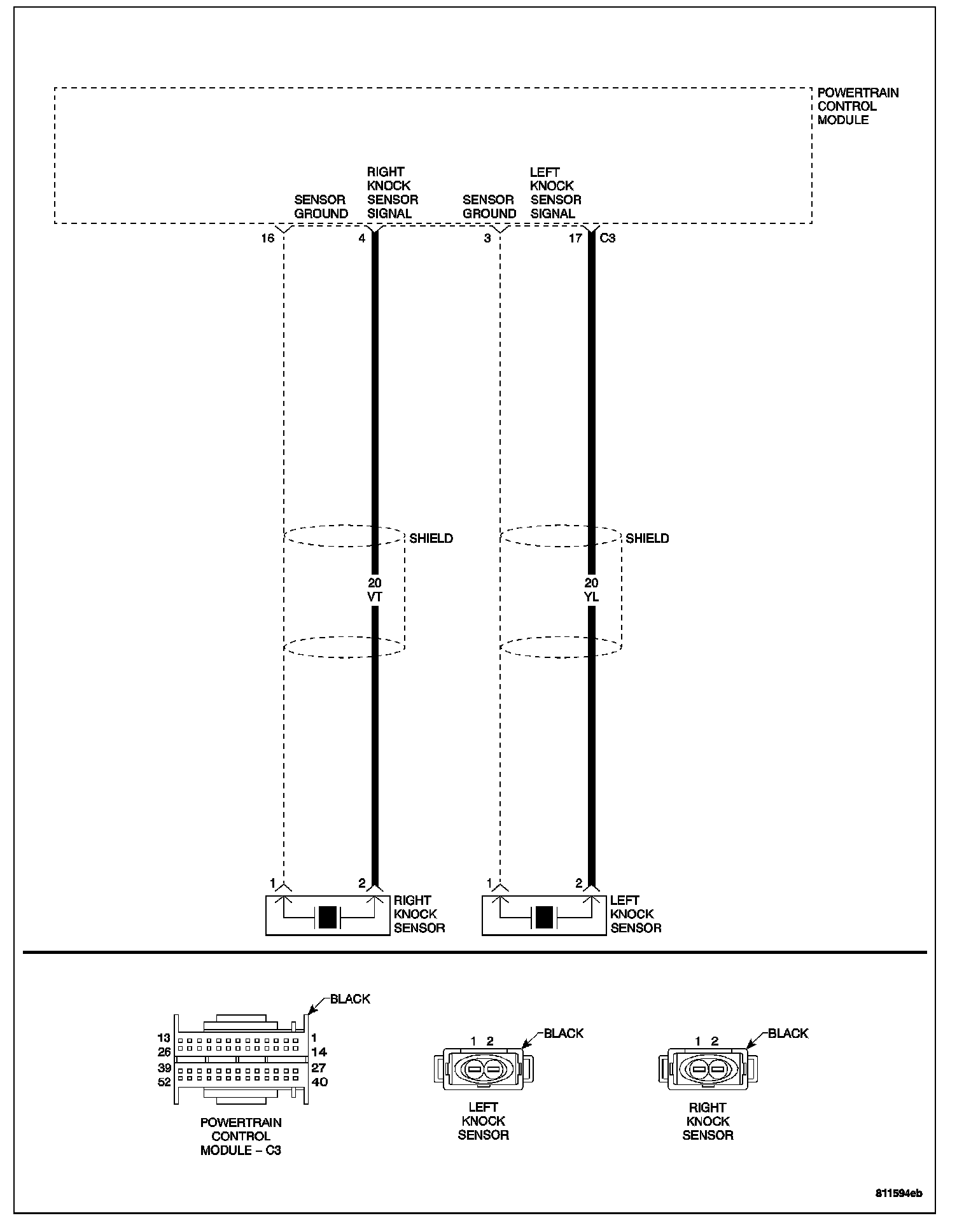

Note: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors specific to this DTC. Wiggle the wires while checking for shorts and open circuits.

Note: Check for any Technical Service Bulletins that may apply.

Were there any problems found?
Yes >> Repair as necessary. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.
No >> The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition.
