P0121

(P0121) APPS 5-VOLT SUPPLY CIRCUIT





When Monitored and Set Condition
^ When Monitored: ignition on.
^ Set Condition: When the PCM recognizes the APP Sensor 5-Volt Supply circuit voltage is below 1.0 volt or higher than 5.2 volts.

POSSIBLE CAUSES
- APP SENSOR 5-VOLT SUPPLY CIRCUIT SHORT TO VOLTAGE
- APP SENSOR 5-VOLT SUPPLY CIRCUIT SHORT TO GROUND
- APP SENSOR 5-VOLT SUPPLY CIRCUIT SHORT TO SENSOR GROUND CIRCUIT(S)
- APP SENSOR 5-VOLT SUPPLY CIRCUIT OPEN
- TP SENSOR 5-VOLT SUPPLY CIRCUIT SHORT TO VOLTAGE
- TP SENSOR 5-VOLT SUPPLY CIRCUIT SHORT TO GROUND
- TP SENSOR 5-VOLT SUPPLY CIRCUIT SHORT TO SENSOR GROUND CIRCUIT(S)
- ACCELERATOR PEDAL POSITION SENSOR
- POWERTRAIN CONTROL MODULE



Diagnostic Test
1. PRE-DIAGNOSTIC CHECK OUT





Note: Always perform diagnostics with a fully charged battery.

Note: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs.

Note: Check for applicable TSBs related to the problem. Turn the ignition on. With the DRBIII, read PCM DTCs. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Repair as necessary. Perform this procedure prior to symptom diagnosis.

Continue
Go To 2

2. CHECK FOR CURRENT DTC





Note: If the PCM detects and stores a DTC, the PCM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on the DRBIII at the same time the DTC is displayed.

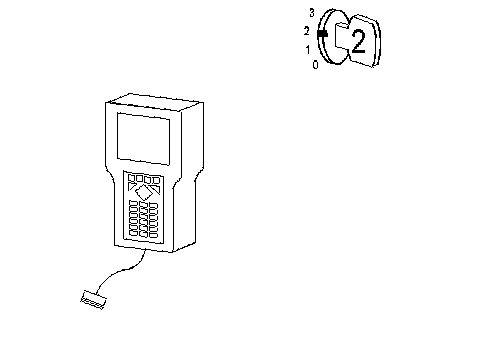

Note: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when checking for a DTC. Turn the ignition on. With the DRBIII, clear PCM DTCs.

Note: It maybe necessary to road test the vehicle for this DTC to set. With the DRBIII, read PCM DTCs.

Did this DTC set again?
Yes >> Go To 3
No >> Go To 11

3. CHECK THE APP SENSOR 5-VOLT SUPPLY CIRCUIT VOLTAGE





Turn the ignition off. Disconnect the APP Sensor harness connector.

Note: Check connectors - Clean/repair as necessary.

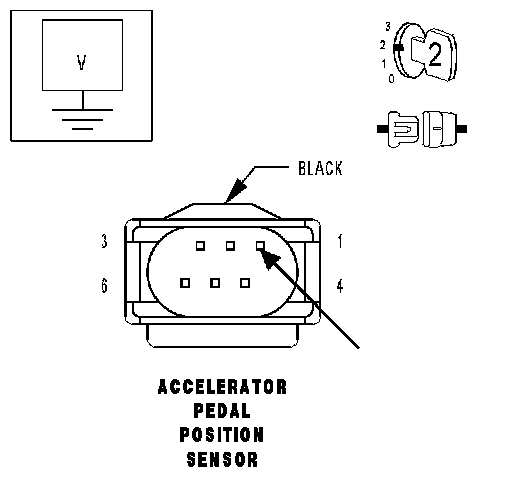

Turn the ignition on. Measure the voltage of the APP Sensor 5-Volt Supply circuit at the APP Sensor harness connector.
Is the voltage between 4.7 and 5.2 volts?
Yes >> Go To 4
No >> If the voltage is above 5.2 volts, Go To 5 If the voltage is below 4.7 volts, Go To 7

4. CHECK THE APPS





With the ignition on. With the DRBIII, clear PCM DTCs.

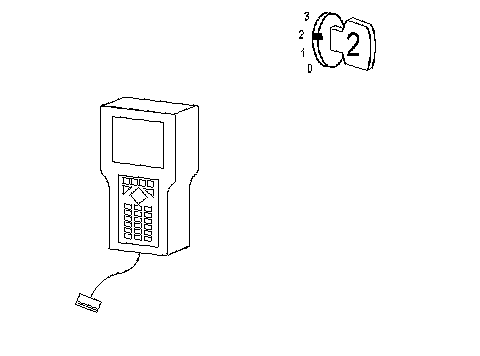

Note: It maybe necessary to road test the vehicle for this DTC to set. With the DRBIII, read the PCM DTCs.

Did this DTC set again?
Yes >> Go To 9
No >> Replace the Accelerator Pedal Position Sensor. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.

5. CHECK THE APP SENSOR 5-VOLT SUPPLY CIRCUIT FOR A SHORT TO VOLTAGE





Turn the ignition off. Disconnect the PCM C4 harness connector.

Note: Check connectors - Clean/repair as necessary.

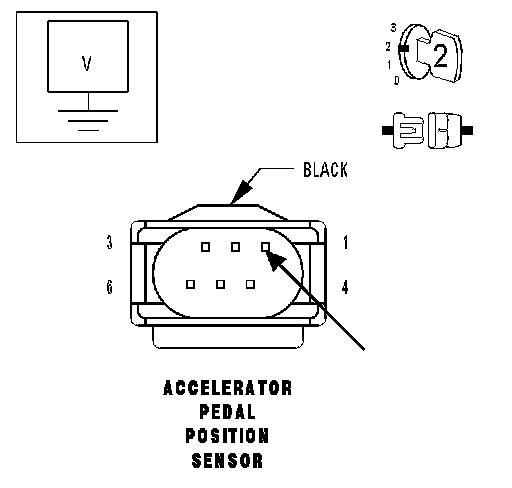

Turn the ignition on. Measure the voltage of the APP Sensor 5-Volt Supply circuit at the APP Sensor harness connector.
Is the voltage below 1.0 volt?
Yes >> Go To 6
No >> Repair the APP Sensor 5-Volt Supply circuit for a short to voltage. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.

6. CHECK THE TP SENSOR 5-VOLT SUPPLY CIRCUIT FOR A SHORT TO VOLTAGE





Turn the ignition off.
Disconnect the PCM C3 harness connector. Disconnect the Throttle Body harness connector.

Note: Check connectors - Clean/repair as necessary.

Turn the ignition on.

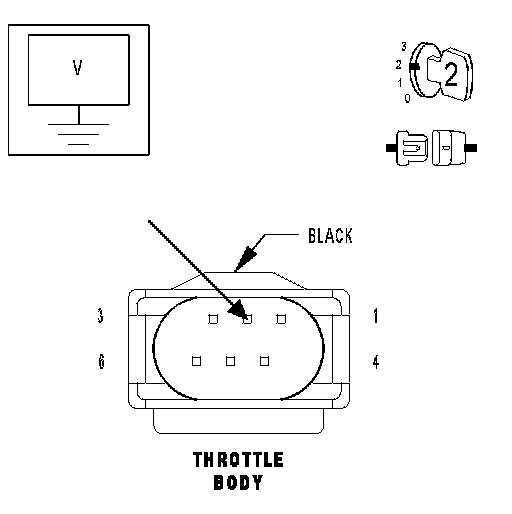

Measure the voltage of the 5-Volt Supply circuit at the Throttle Body harness connector.
Is the voltage below 1.0 volt?
Yes >> Replace and program the Powertrain Control Module. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.
No >> Repair the 5-Volt Supply circuit for a short to voltage. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.

7. MEASURE THE RESISTANCE BETWEEN GROUND AND THE TP SENSOR 5-VOLT SUPPLY CIRCUIT





Turn the ignition off. Disconnect the PCM C3 harness connector. Disconnect the Throttle Body harness connector.

Note: Check connectors - Clean/repair as necessary.

Measure the resistance between ground and the 5-Volt Supply circuit at the Throttle Body harness connector.
Is the resistance above 100 kohms?
Yes >> Go To 8
No >> Repair the 5-Volt Supply circuit for a short to ground. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.

8. MEASURE RESISTANCE BETWEEN THE TP SENSOR 5-VOLT SUPPLY CIRCUIT AND SENSOR GROUND CIRCUITS





With the ignition off.

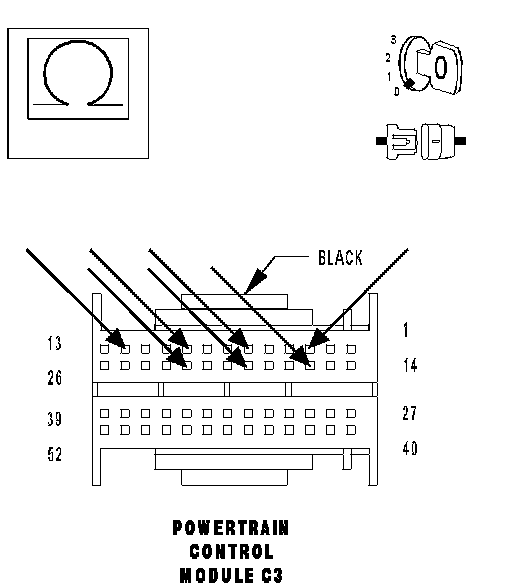

Measure the resistance between the 5-Volt Supply circuit and all Sensor Ground circuits in the PCM C3 harness connector.
Is the resistance above 100 kohms for all measurements?
Yes >> Go To 9
No >> Repair the 5-Volt Supply circuit for a short to the Sensor Ground circuit that measured below 100 kohms. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.

9. MEASURE THE RESISTANCE BETWEEN GROUND AND THE APP SENSOR 5-VOLT SUPPLY CIRCUIT





With the ignition off. Disconnect the PCM C4 harness connector.

Note: Check connectors - Clean/repair as necessary.

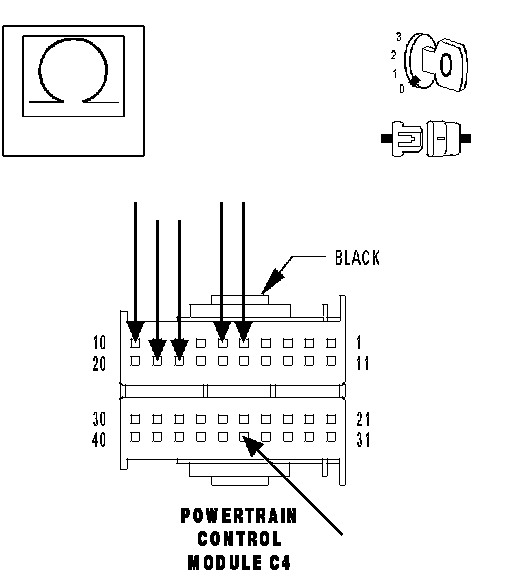

Measure the resistance between ground and the APP Sensor 5-Volt Supply circuit at the PCM C4 harness connector.
Is the resistance above 100 kohms?
Yes >> Go To 10
No >> Repair the APP Sensor 5-Volt Supply circuit for a short to ground. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.

10. MEASURE RESISTANCE BETWEEN THE APP SENSOR 5-VOLT SUPPLY CIRCUIT AND SENSOR GROUND CIRCUITS





With the ignition off.
Measure the resistance between the APP Sensor 5-Volt Supply circuit and all Sensor Ground circuits in the PCM C4 harness connector.
Is the resistance above 100 kohms for all measurements?
Yes >> Replace and program the Powertrain Control Module. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.
No >> Repair the APP Sensor 5-Volt Supply circuit for a short to the Sensor Ground circuit that measured below 100 kohms. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.

11. INTERMITTENT WIRING AND CONNECTORS
The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition.

Note: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs.

Note: Check for any Technical Service Bulletins that may apply.

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors specific to this DTC. Wiggle the wires while checking for shorts and open circuits.
Were there any problems found?
Yes >> Repair as necessary. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.
No >> The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition.
