P0117

(P0117) ENGINE COOLANT TEMPERATURE SENSOR CIRCUIT LOW





When Monitored and Set Condition
^ When Monitored: With the engine running and no fault in the throttle valve actuator.
^ Set Condition: The ECT Sensor value is less than -39°C (-38°F) for more than 1 second.

POSSIBLE CAUSES
- ENGINE COOLANT TEMPERATURE (ECT) SENSOR SIGNAL CIRCUIT OPEN
- ENGINE COOLANT TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO GROUND
- ENGINE COOLANT TEMPERATURE SENSOR
- POWERTRAIN CONTROL MODULE



Diagnostic Test
1. CHECK FOR CURRENT DTC

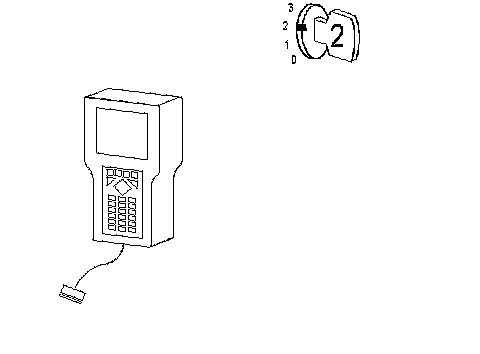

Turn the ignition on. With the DRBIII, read PCM DTCs.
Is this DTC present?
Yes >> For complete diagnosis of this DTC, refer to (P0116) ENGINE COOLANT TEMPERATURE SENSOR PERFORMANCE. P0116
No >> Go To 2

2. INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.

Note: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors specific to this DTC. Wiggle the wires while checking for shorts and open circuits.

Note: Check for any Technical Service Bulletins that may apply.

Were there any problems found?
Yes >> Repair as necessary. Perform POWERTRAIN VERIFICATION TEST - VER 2 Powertrain Verification Test - Ver 2.
No >> The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition.
