Door Lock Switch Sense Circuit

WHEN MONITORED
Continuous.

SET CONDITION
The Sentry Key Remote Entry Module (SKREEM) reports a short to power, ground, or an open circuit failure on the Door Lock Switch Sense circuit.

POSSIBLE CAUSES
- Door lock switch sense circuit shorted to voltage
- Door lock switch sense circuit shorted to ground
- Door lock switch sense circuit open
- Sentry key remote entry module

Diagnostic Test




1. MEASURE THE RESISTANCE OF THE DOOR LOCK SWITCH SENSE CIRCUIT

Turn the ignition off.
Disconnect the BCM harness connector.
Disconnect the SKREEM harness connector.

NOTE: Check connectors - Clean/repair as necessary.

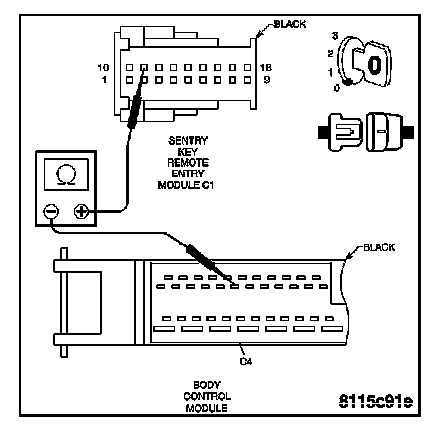

Measure the resistance of the Door Lock Switch Sense circuit from the BCM harness connector to the SKREEM harness connector.

Q: Is the resistance below 5.0 ohms?

YES: Go to 2
NO: Repair the Door Lock Switch Sense circuit for an open. Perform VTSS VERIFICATION TEST. VTSS Verification Test




2. MEASURE THE VOLTAGE OF THE DOOR LOCK SWITCH SENSE CIRCUIT

Turn the ignition on.

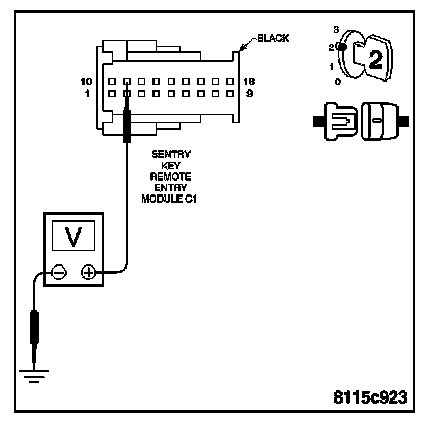

Measure the voltage of the Door Lock Switch Sense circuit at the SKREEM harness connector.

Q: Is voltage present?

YES: Repair the Door Lock Switch Sense circuit for a short to voltage. Perform VTSS VERIFICATION TEST. VTSS Verification Test
NO: Go to 3




3. MEASURE THE RESISTANCE OF THE DOOR LOCK SWITCH SENSE CIRCUIT

Turn the ignition off.

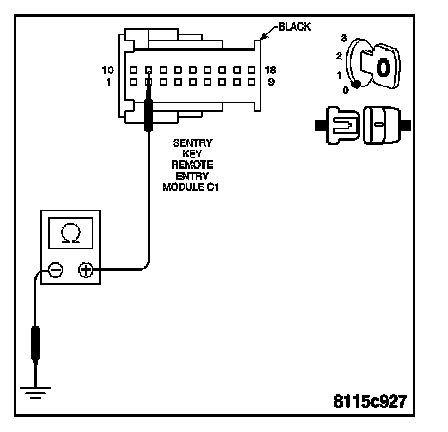

Measure the resistance between ground and the Door Lock Switch Sense circuit at the SKREEM harness connector.

Q: Is the resistance below 10K ohms?

YES: Repair the Door Lock Switch Sense circuit for a short to ground. Perform VTSS VERIFICATION TEST. VTSS Verification Test
NO: Replace the Sentry Key Remote Entry Module. Perform VTSS VERIFICATION TEST. VTSS Verification Test
