PROGRAMMING DOES NOT CORRESPOND TO THE VEHICLE EQUIPMENT

Programming Does Not Correspond To The Vehicle Equipment:

WHEN MONITORED
Ignition on.

SET CONDITION
After the Occupant Restraint Controller (ORC) has been replaced, the Airbag Warning Indicator Light flashes to indicate that the ORC has not been programmed. A DTC is also set at this time.

POSSIBLE CAUSES
- Occupant restraint controller not programmed
- Occupant restraint controller programming error
- Occupant restraint controller

DIAGNOSTIC TEST

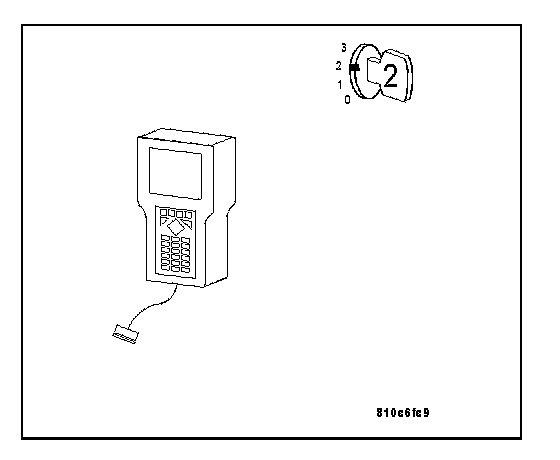

1. PROGRAM THE ORC WITH THE DRB III(R)




Turn the ignition on.
With the DRB III(R), program the ORC.
- On the parts control modules menu, program the side airbag equipment to YES.
- On the parts control modules menu, program the seat belt buckle equipment to YES.
- On the parts control modules menu, program the seat occupied recognition equipment to YES.
- Set the front passenger airbag to YES.

Turn the ignition off.
Turn the ignition on.
Erase DTCs, the Airbag Warning Indicator Light should flash to indicate that the programming procedure was successful.
With the DRB III(R), read DTCs.

Q: Does the DRB III(R) display a Programming Does Not Correspond To The Vehicle Equipment DTC?

YES: Attempt the programming procedure again or replace the Occupant Restraint Controller.

WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED AT ANY TIME,IT MUST BE REPLACED.

Perform AIRBAG VERIFICATION TEST. Airbag System Verification Test
NO: The condition that caused this DTC to set is currently not present.
