Convertible Top: 9651

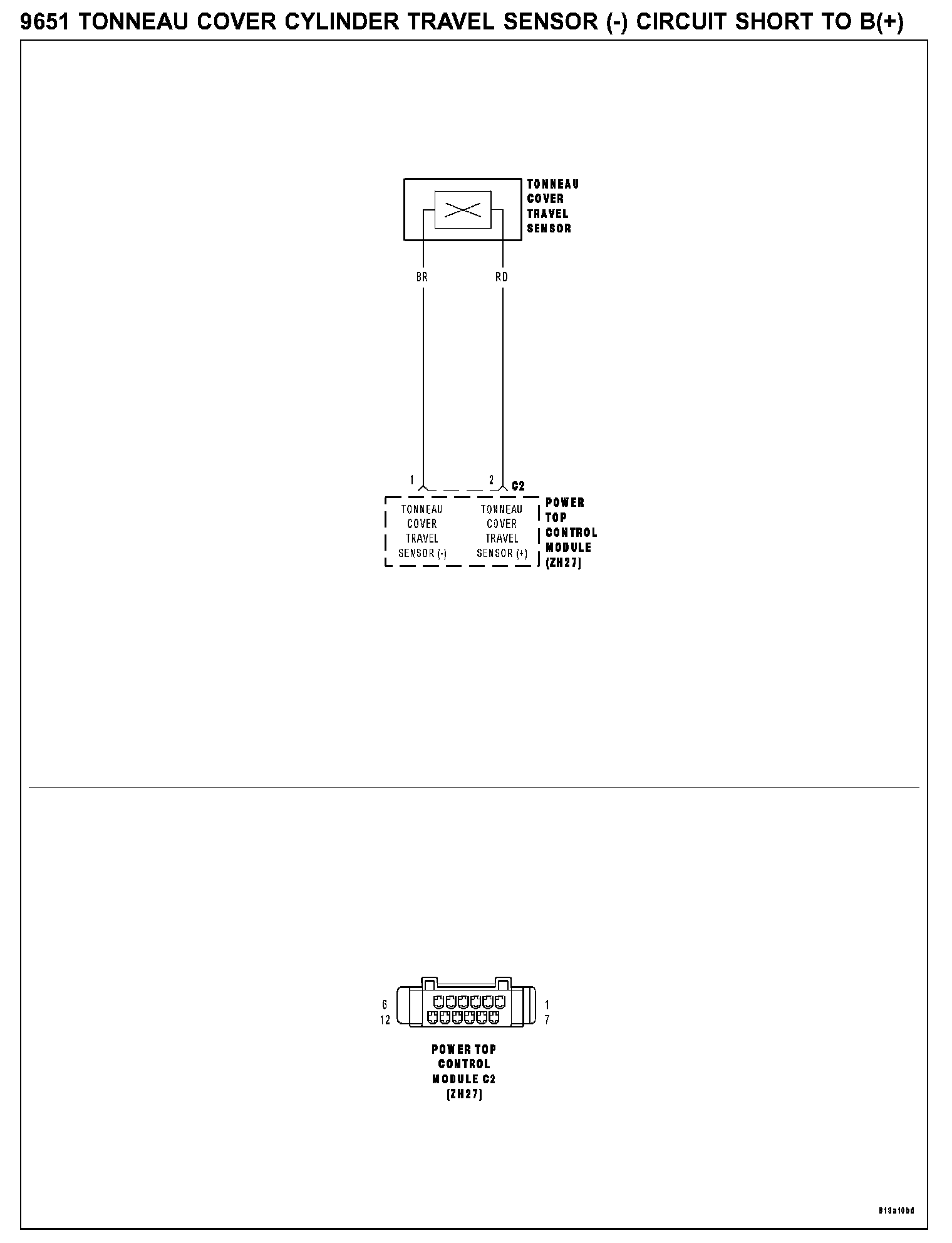

9651 TONNEAU COVER CYLINDER TRAVEL SENSOR (-) CIRCUIT SHORT TO B(+)

9651 Tonneau Cover Cylinder Travel Sensor (-) Circuit Short To B(+):

WHEN MONITORED
Continuous with the ignition on.

SET CONDITION
When the Power Top Control Module senses a short to B(+) on the Tonneau Cover Cylinder Travel Sensor (-) circuit.

POSSIBLE CAUSES
- Travel sensor (-) circuit short to B(+)
- Power top control module

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

DIAGNOSTIC TEST

1. Tonneau Cover Cylinder Travel Sensor (-) Short to B(+)




Turn the ignition off.
Disconnect the Power Top Control Module C2 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Turn the ignition on.
Measure the voltage of the Tonneau Cover Cylinder Travel Sensor (-) circuit at the Power Top Control Module C2 harness connector.

Q: Is the voltage above 1.0 volt?

YES: Repair the Tonneau Cover Cylinder Travel Sensor (-) circuit for a short to B(+). Perform POWER TOP CONTROL MODULE VERIFICATION TEST. Power Top Verification Test
NO: Replace the Power Top Control Module. Perform POWER TOP CONTROL MODULE VERIFICATION TEST. Power Top Verification Test
