Antilock Brake System (ABS): 1150

1150-LATERAL ACCELERATION CIRCUIT





When Monitored and Set Condition
^ When Monitored: With the ignition on. The Controller Antilock Brake (CAB) monitors the status of the ESP Yaw Rate/Lateral Acceleration Sensor.
^ Set Condition: The Controller Antilock Brake (CAB) will set this DTC if the ESP Yaw Rate/Lateral Acceleration Sensor has an internal malfunction.

POSSIBLE CAUSES
- ESP YAW RATE/LATERAL ACCELERATION SENSOR

For a complete Antilock Brake System (ABS) Circuit Diagram, (Refer to - BRAKES/ELECTRICAL - SCHEMATICS AND DIAGRAMS).

1. VISUALLY INSPECT COMPONENTS FOR DAMAGE AND CORRECT INSTALLATION
Visually inspect the Yaw Rate/Acceleration Sensor for damage and correct installation.
Are there any visible Sensor concerns?
Yes >> Correct the sensor concerns as necessary Perform ABS VERIFICATION TEST. ABS Verification Test
No >> Go to 2

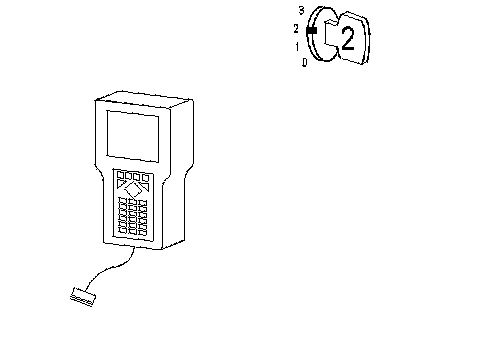

2. MONITOR THE CAB WITH THE DRBIII





With the DRBIII, erase DTCs. Start the engine. With an assistant to drive, use the DRBIII to monitor the CAB module DTCs while performing road test.
Is the Yaw Rate/Acceleration Sensor DTC set?
Yes >> Replace the Yaw Rate/Acceleration Sensor. Perform ABS VERIFICATION TEST. ABS Verification Test
No >> Inspect and repair the related wiring harness for a possible intermittent condition. Perform ABS VERIFICATION TEST. ABS Verification Test
