Home >> Chrysler >> 2004 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Tools and Equipment >> Front Axle

Front Axle

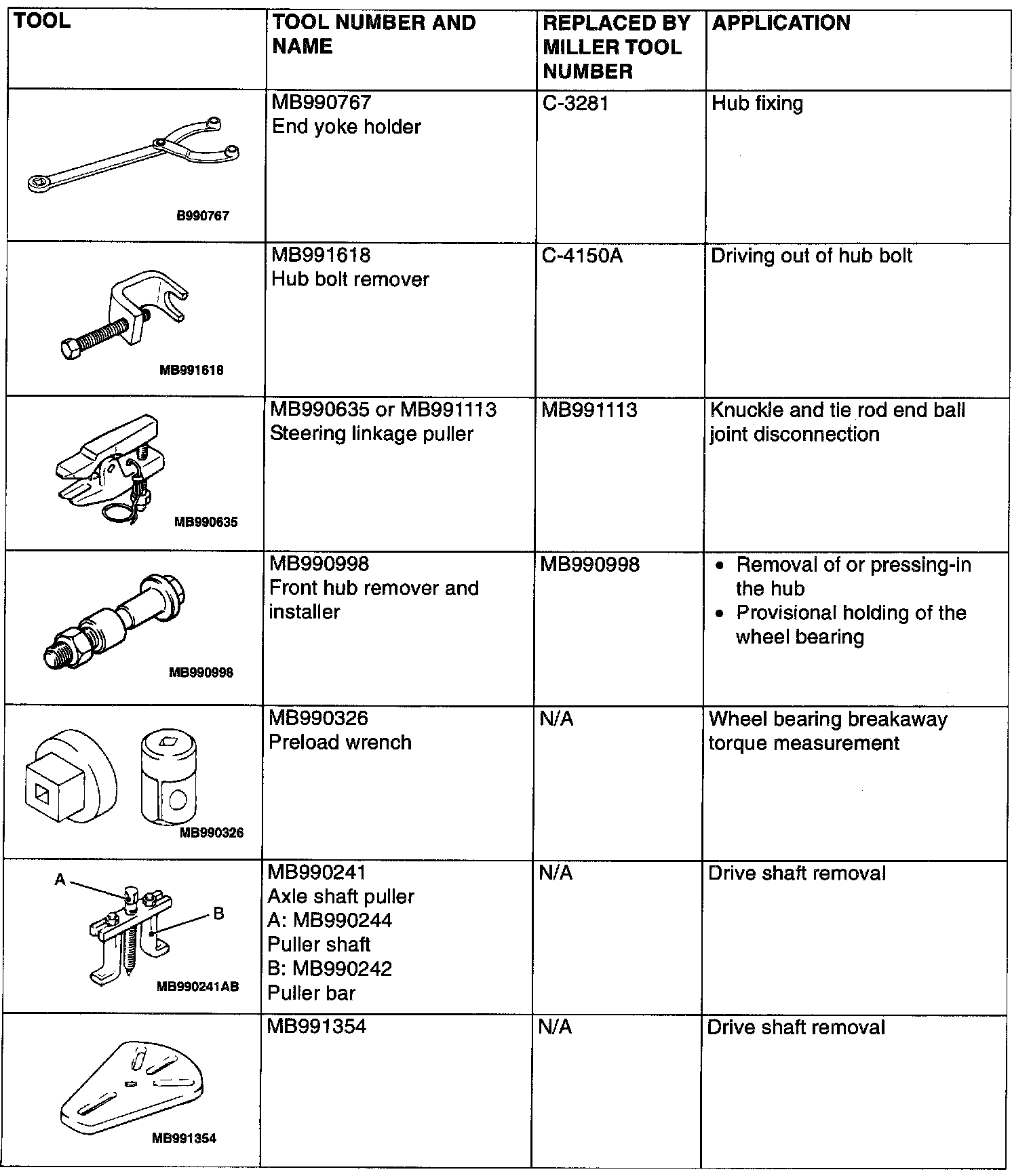

SPECIAL TOOLS Part 1 of 3

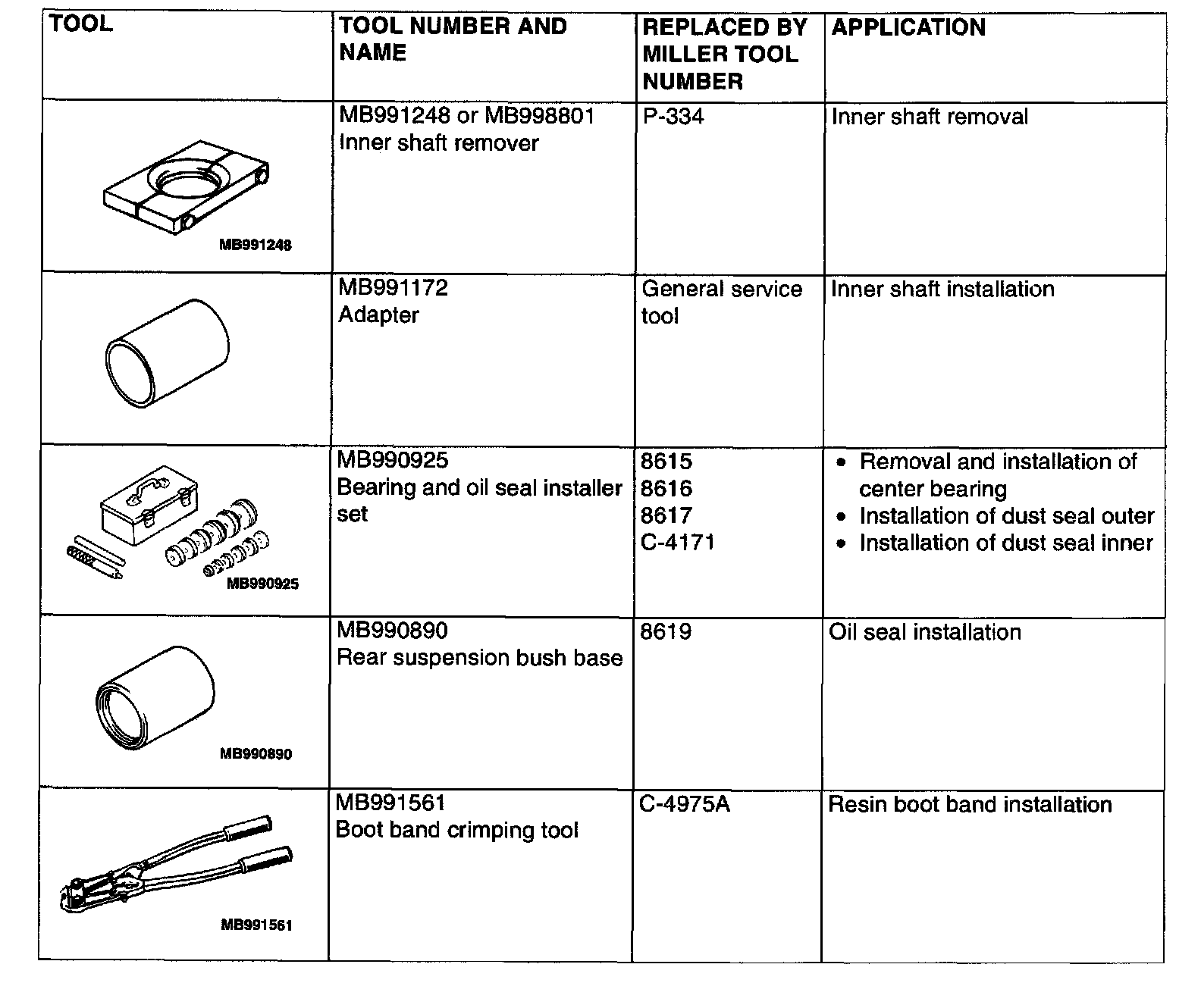

SPECIAL TOOLS Part 2 of 3

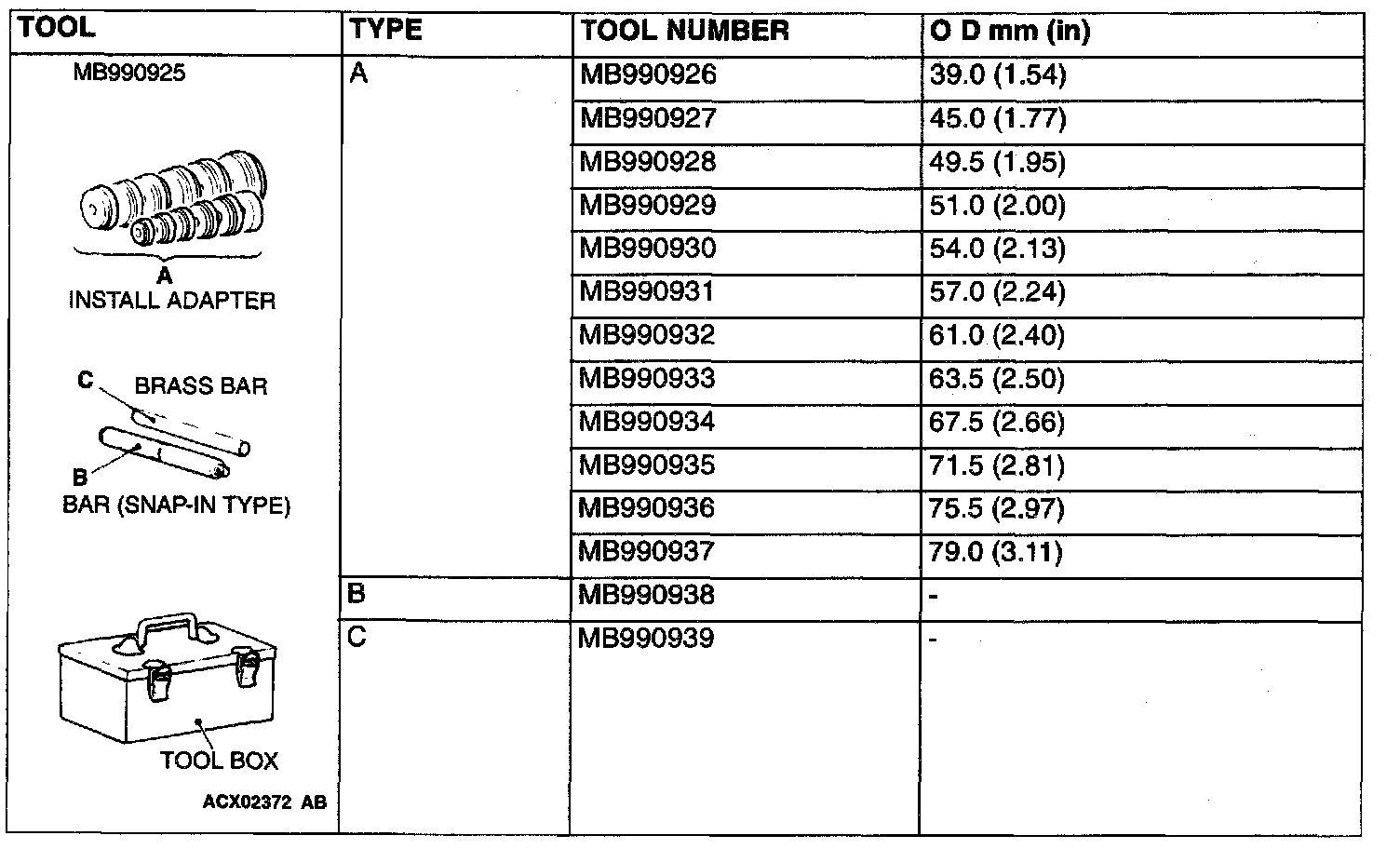

SPECIAL TOOLS Part 3 of 3
