Steering: Description and Operation

STEERING

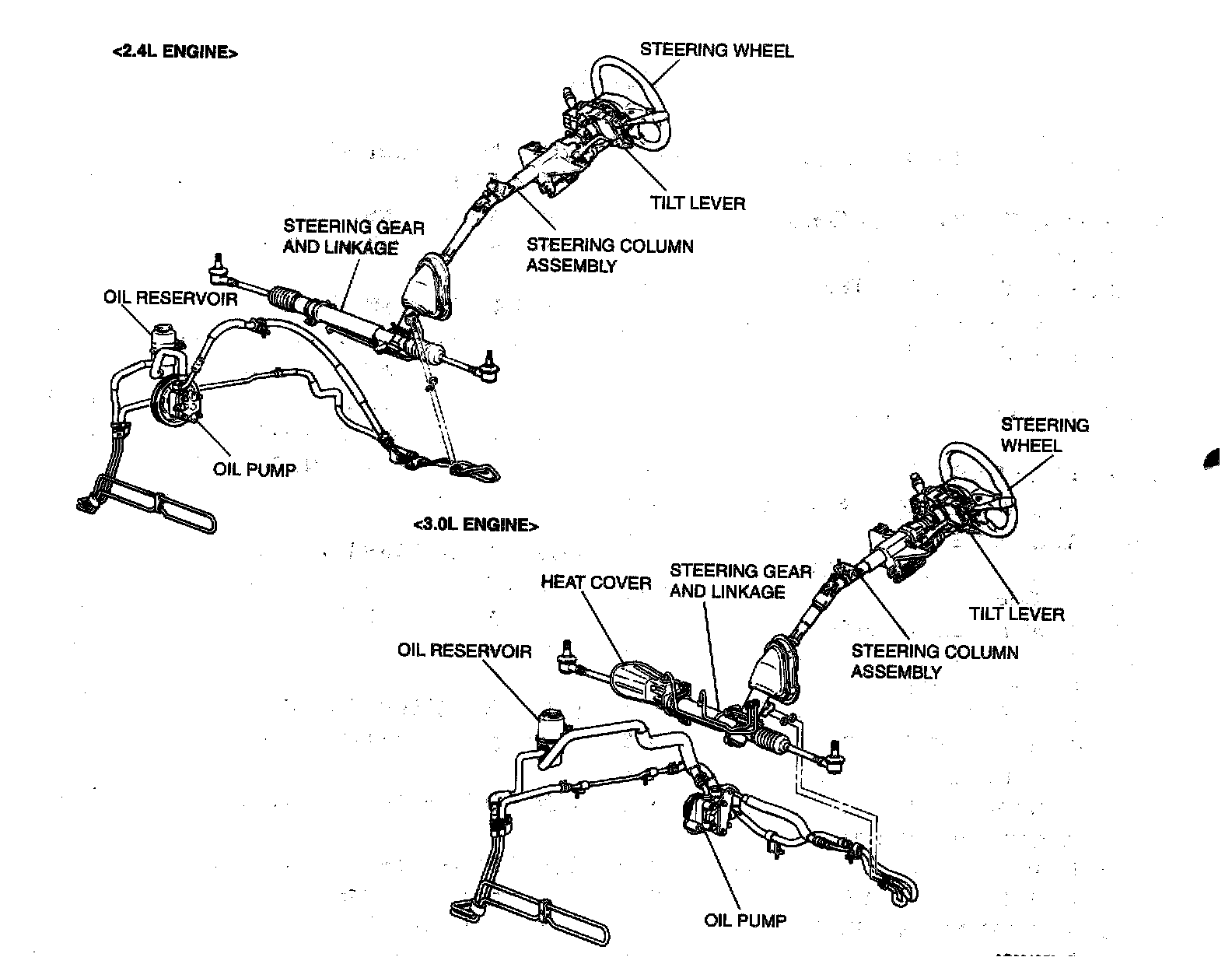

GENERAL DESCRIPTION





The vehicle uses engine speed-responsive hydraulic power steering.

The steering wheel has three spokes. In addition, all vehicles are equipped with SRS (supplemental Restraint System).

The steering column in all vehicles has a shock absorber mechanism and a tilt steering mechanism. A vane-type oil pump with a fluid flow control system has been included.,The steering gear and linkage is rack arm pinion
