Home >> Chrysler >> 2004 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Grounding Point >> Locations

Grounding Point: Locations

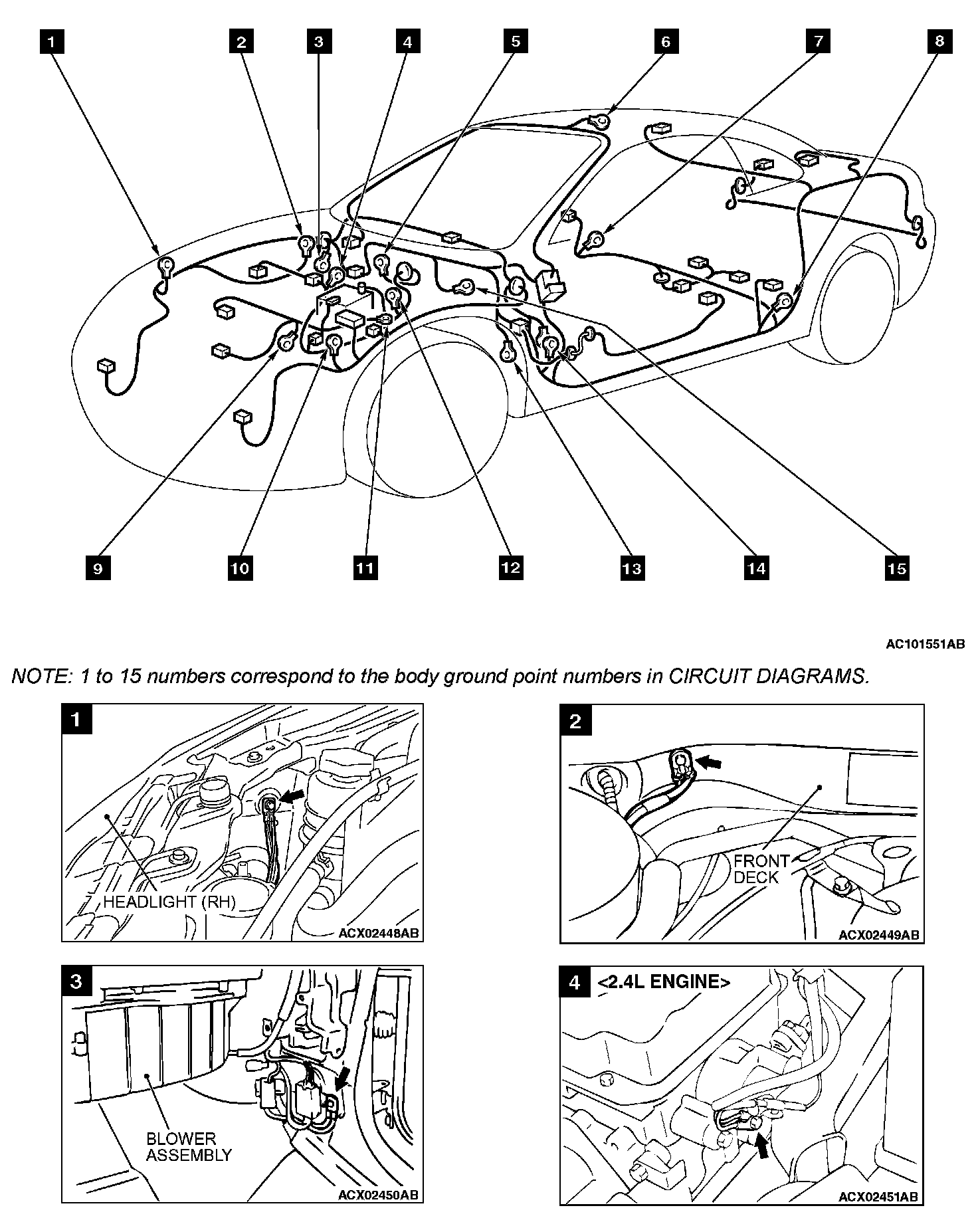

Grounding Overall View And Views 1 - 15:

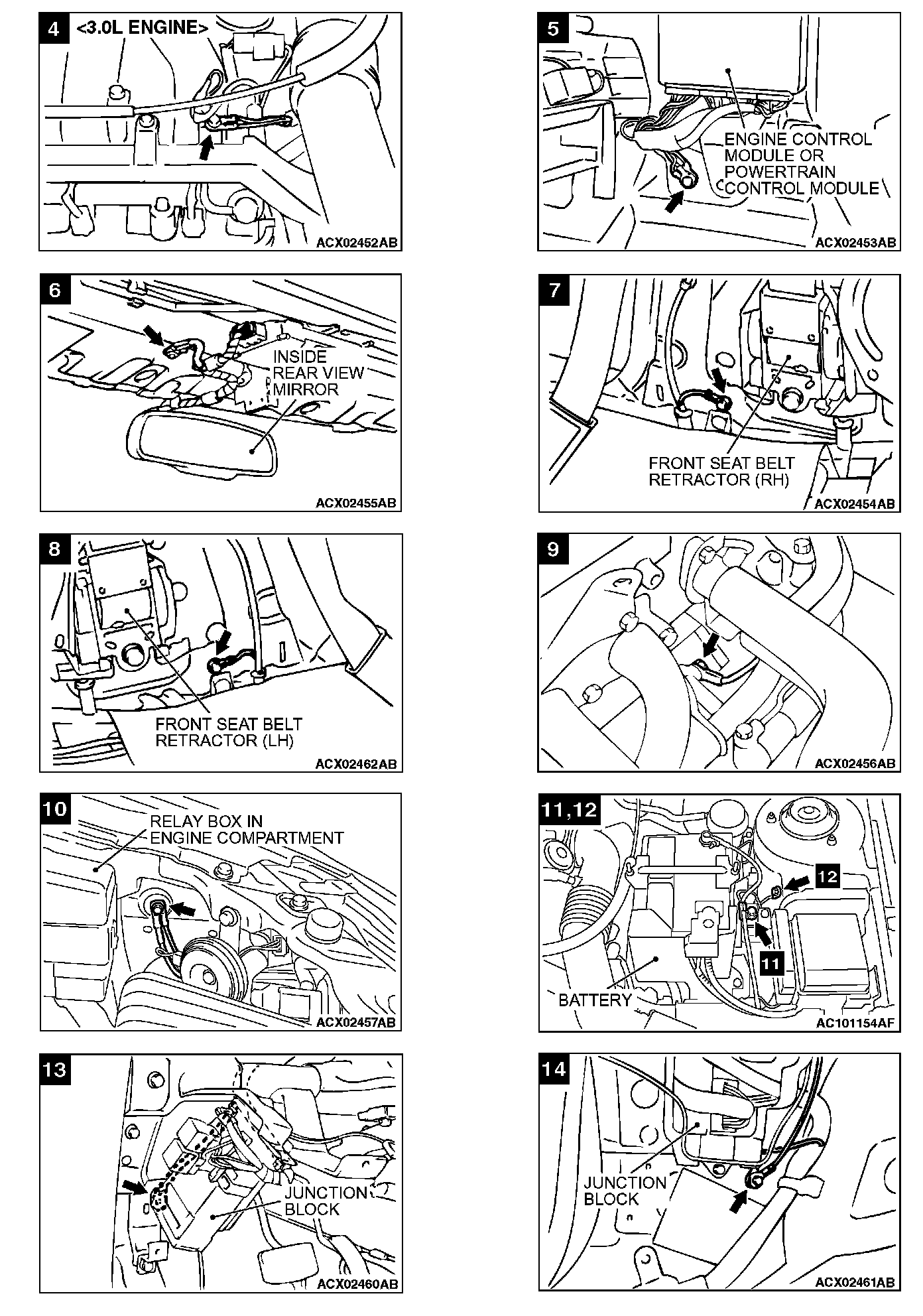

Views 4 - 14:
