Fusible Link: Locations

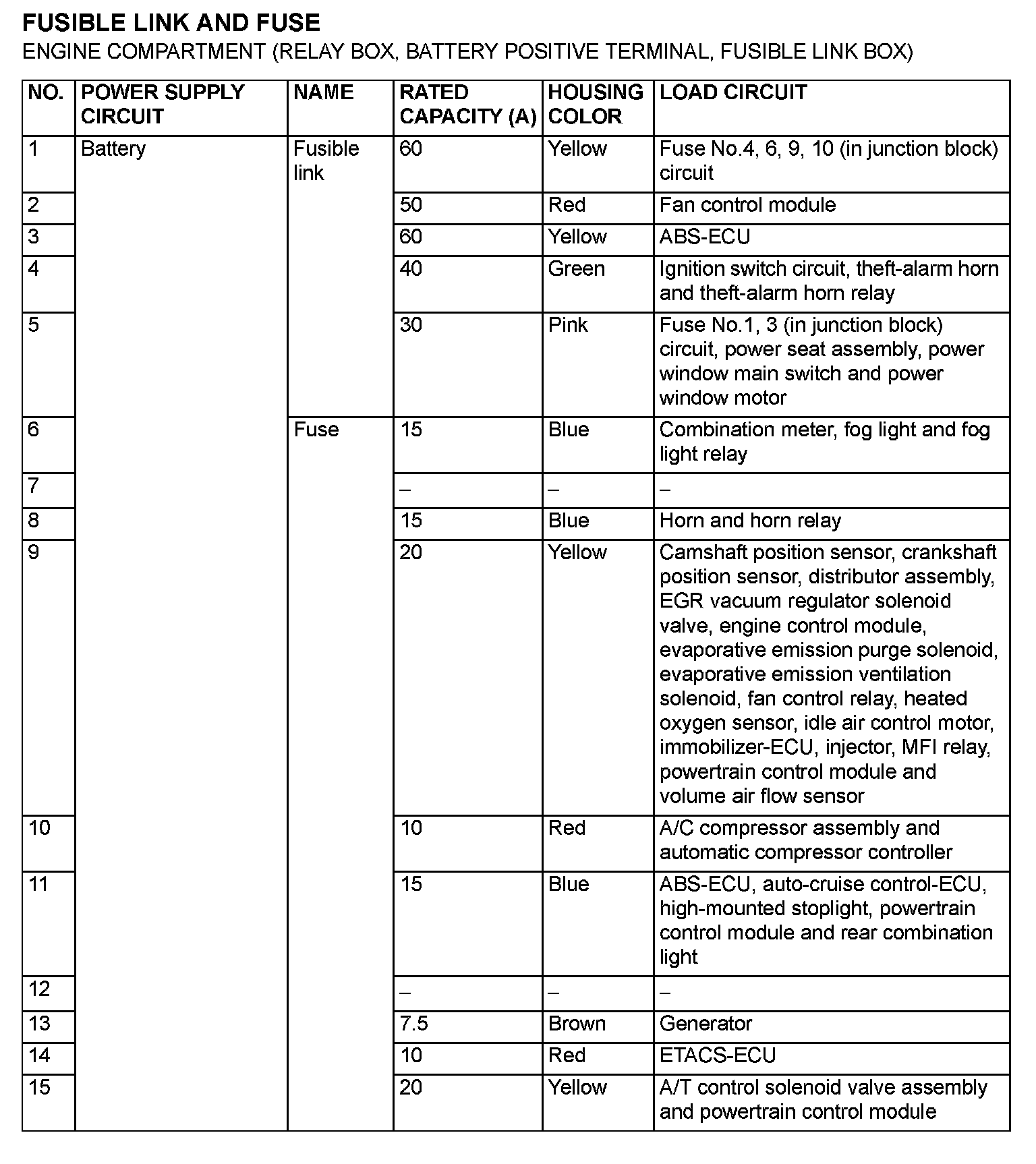

Centralized Junction/Fusible Link And Fuse Part 1:

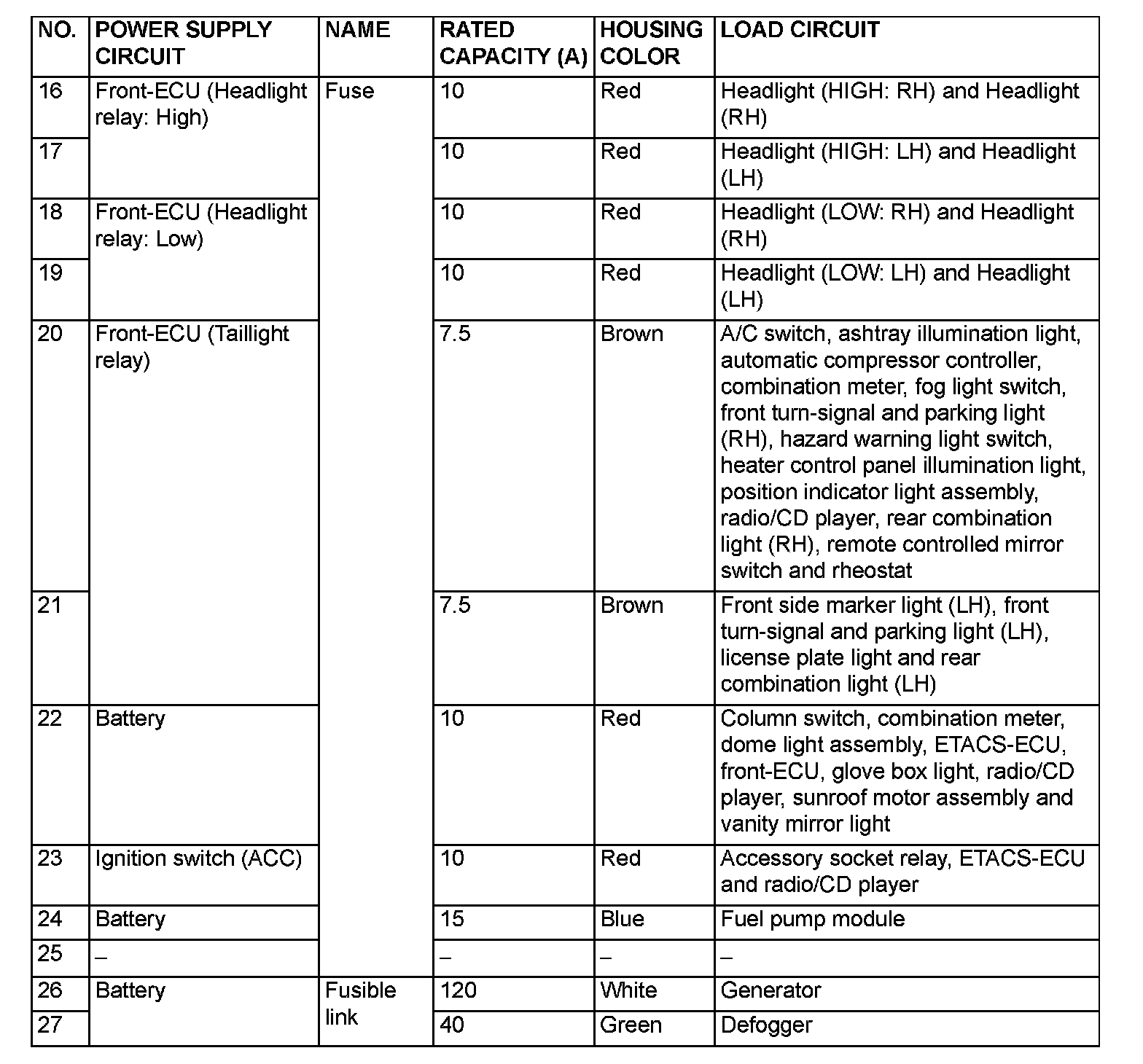

Centralized Junction/Fusible Link And Fuse Part 2:

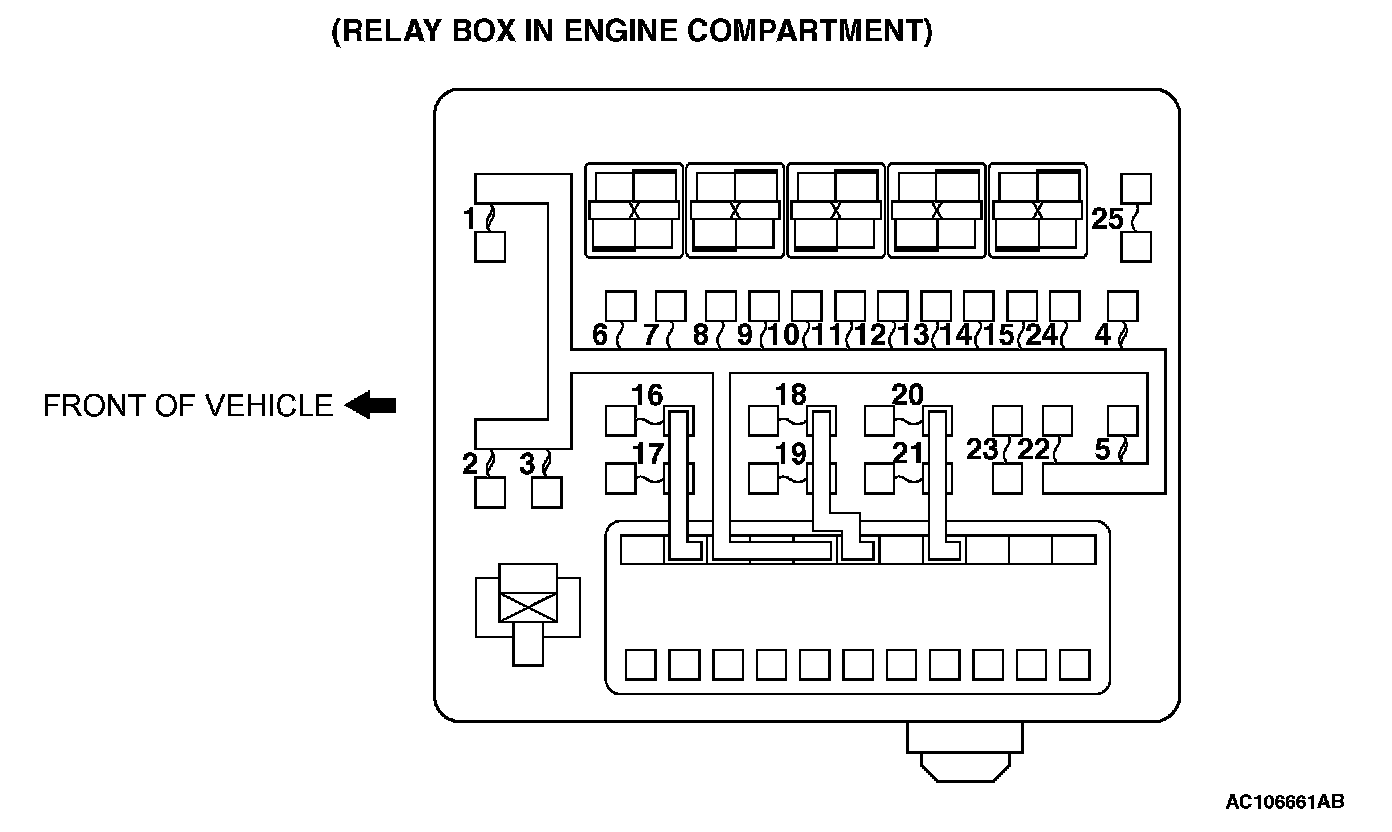

Fusible Links 1-25 (Relay Box In Engine Compartment):

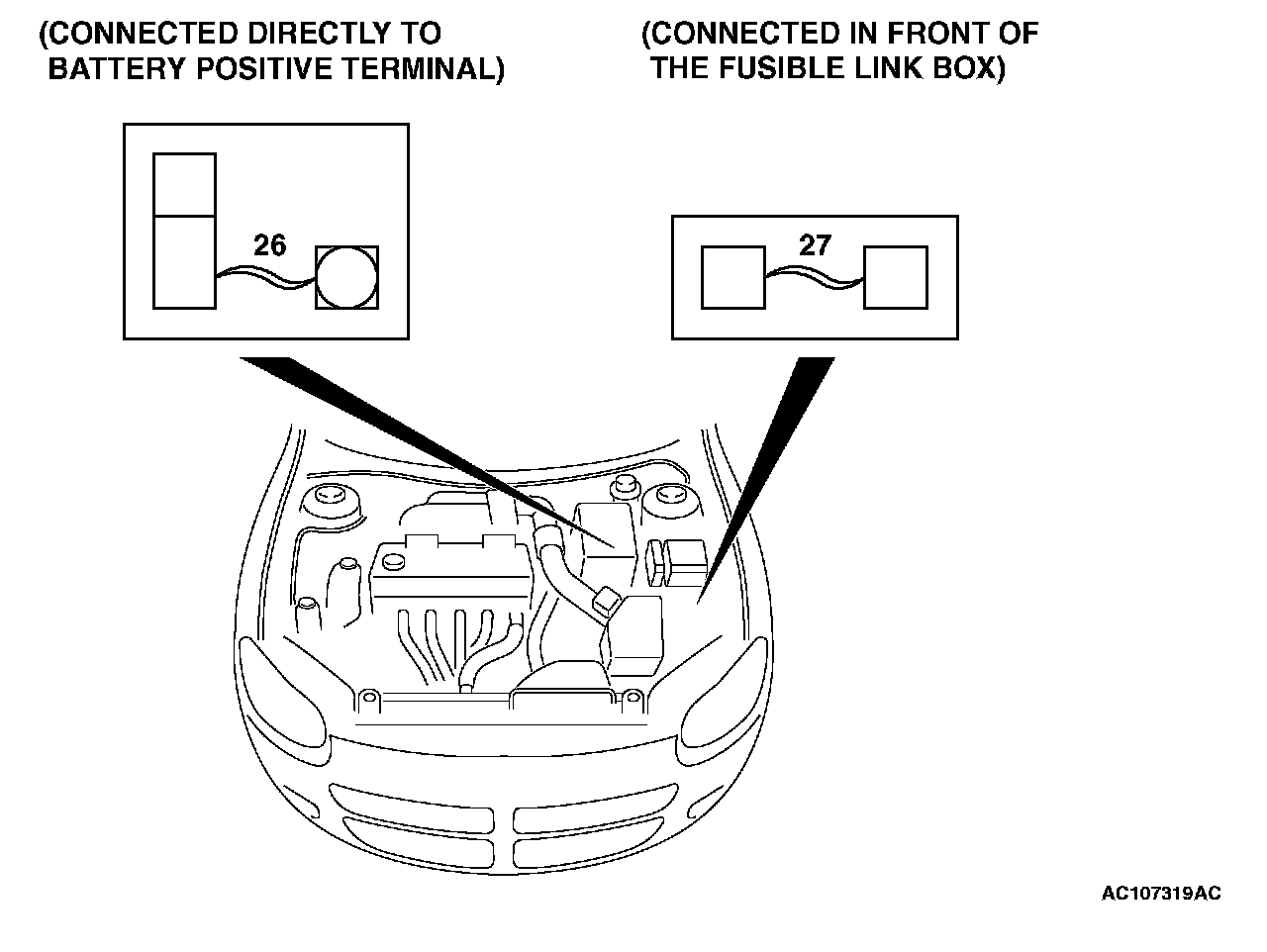

Fusible Link 26 (Connected Directly To Battery Positive Terminal) , Fusible Link 27 (Connected In Front Of The Fusible Link Box):

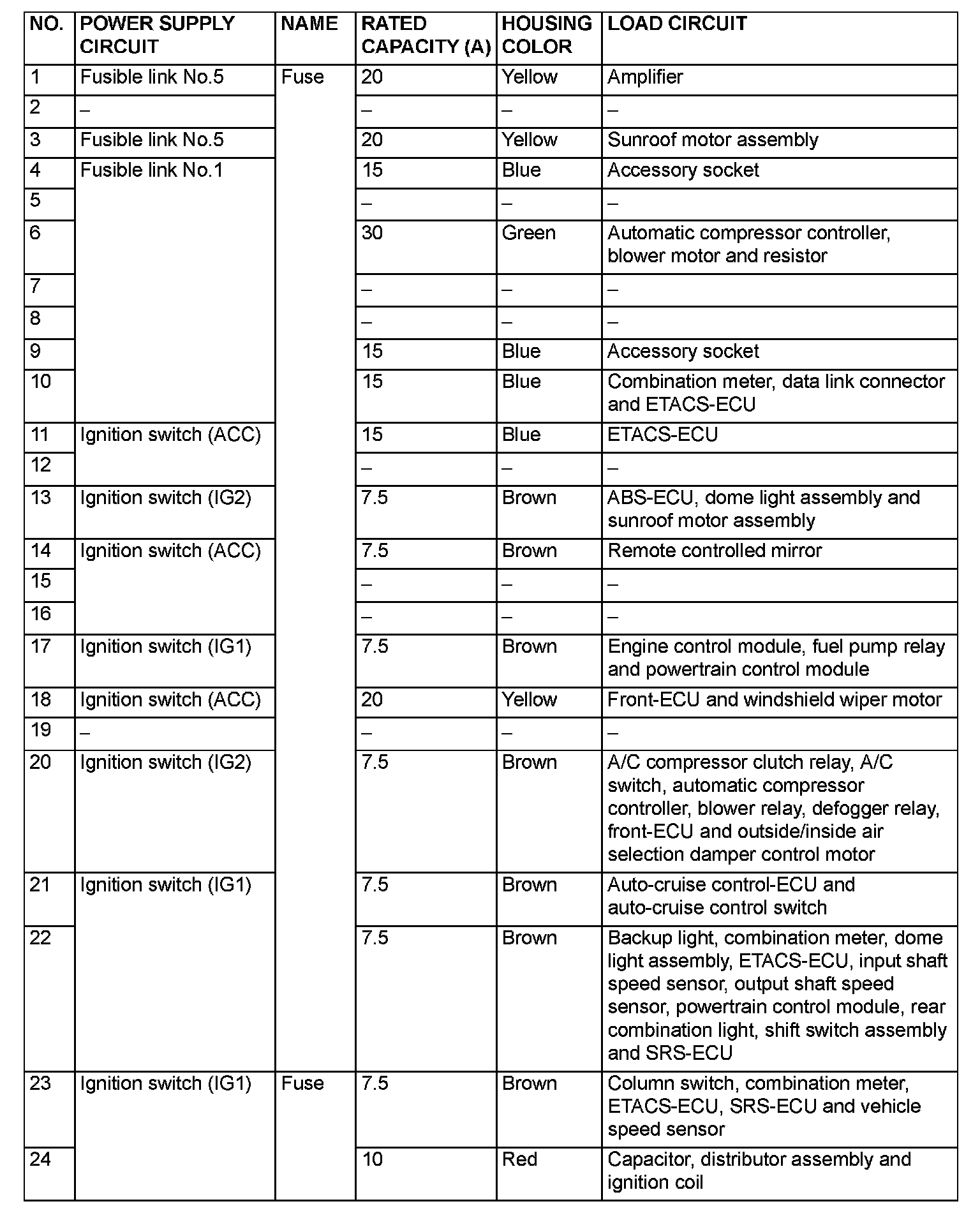

Passenger Compartment (In Junction Block) Part 1:

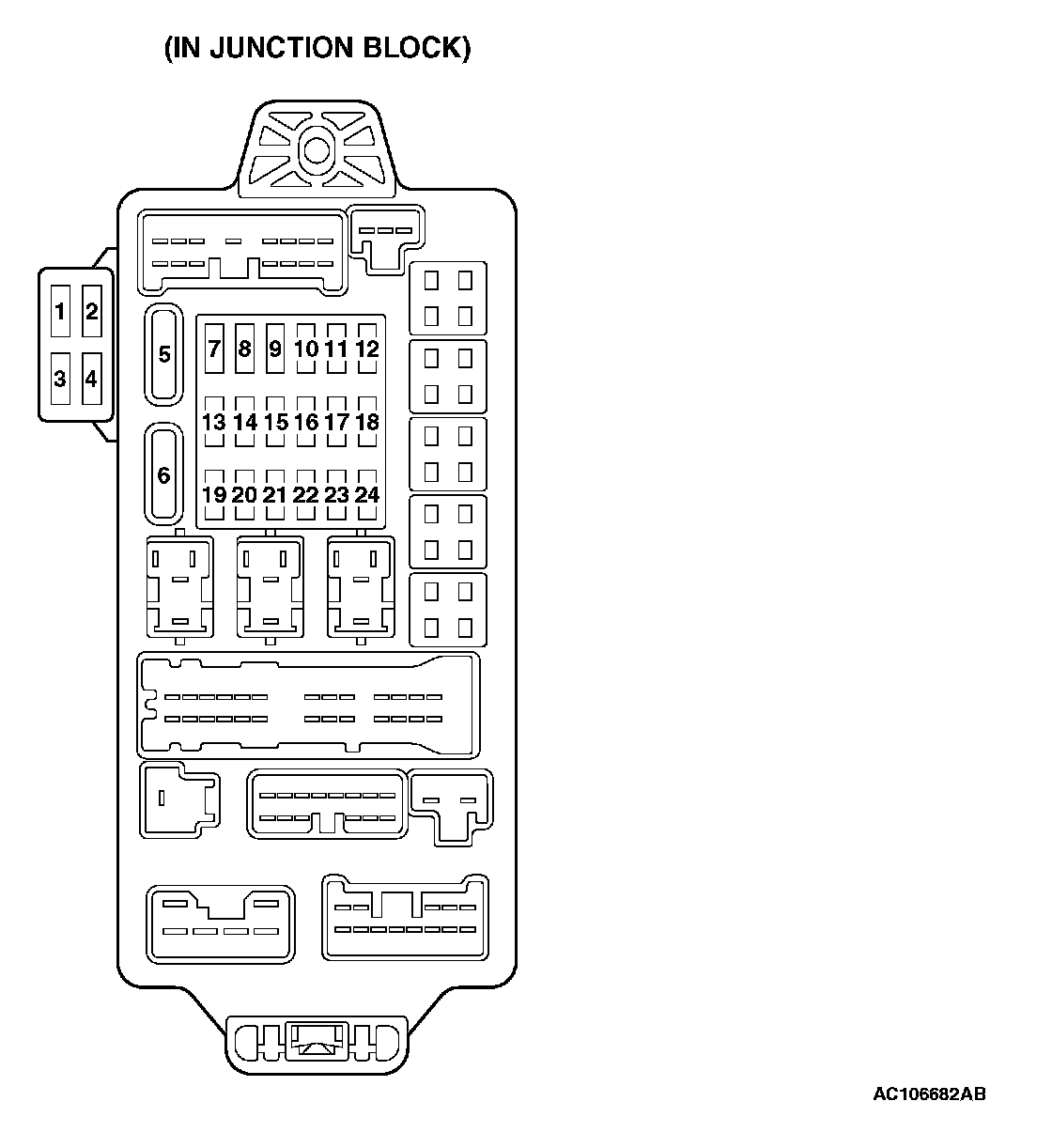

Fuses 1 - 24 (In Junction Block):
