Fusible Link, Fuse and IOD or Storage Connector
Fusible Link, Fuse and IOD or Storage Connector

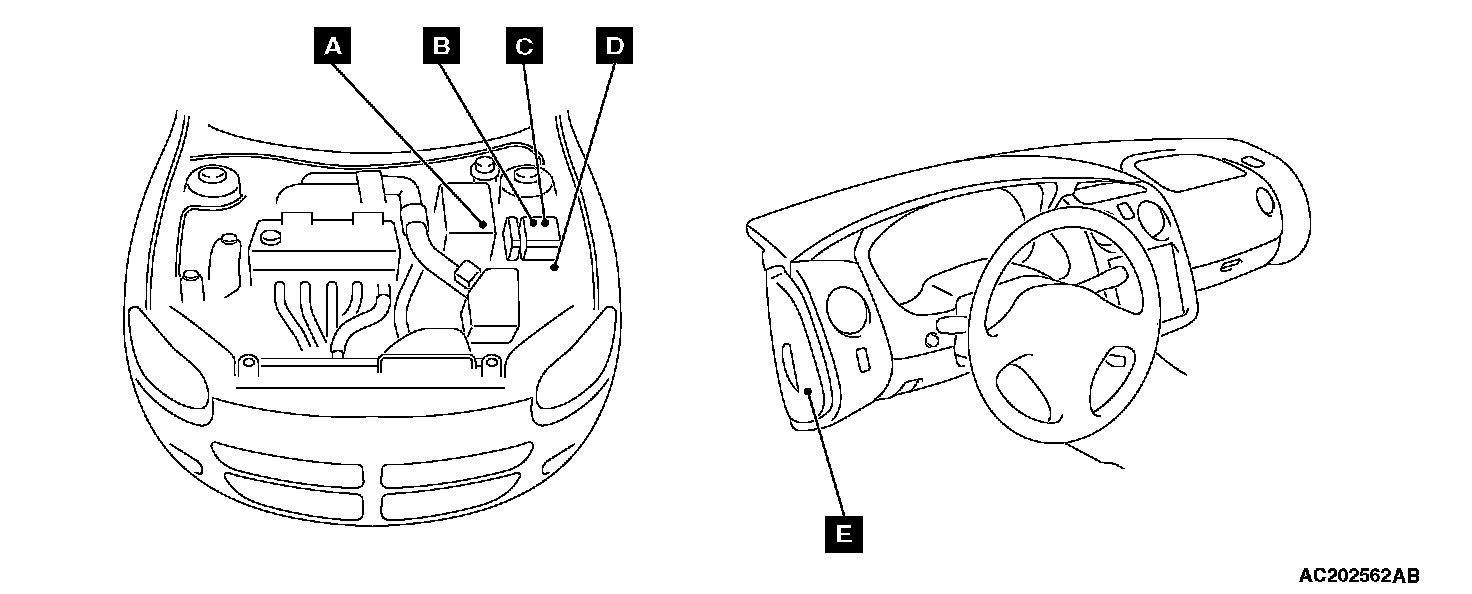

Over All Views:

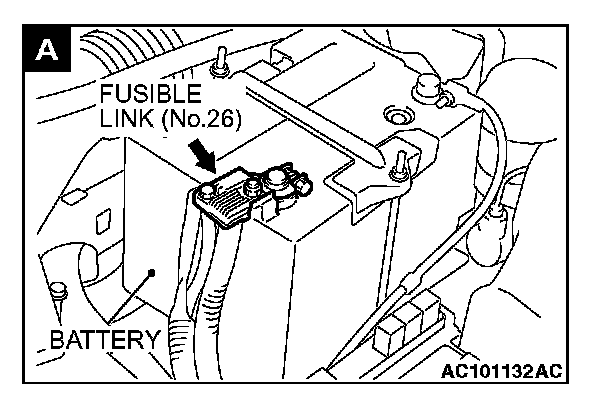

Views A:

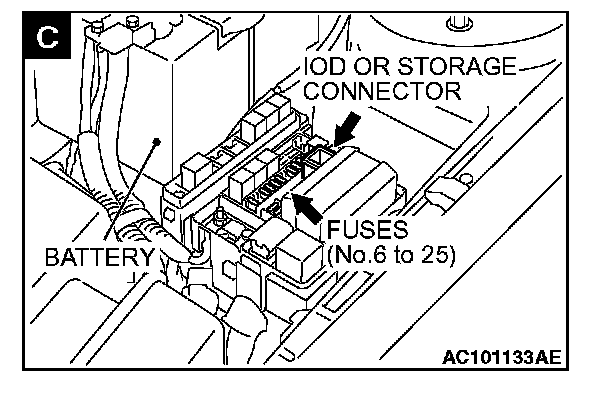

Views C:

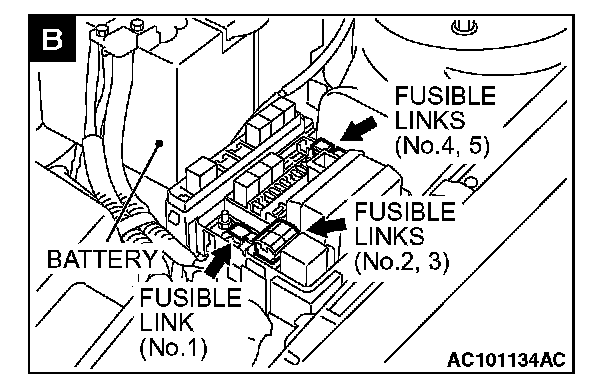

Views B:

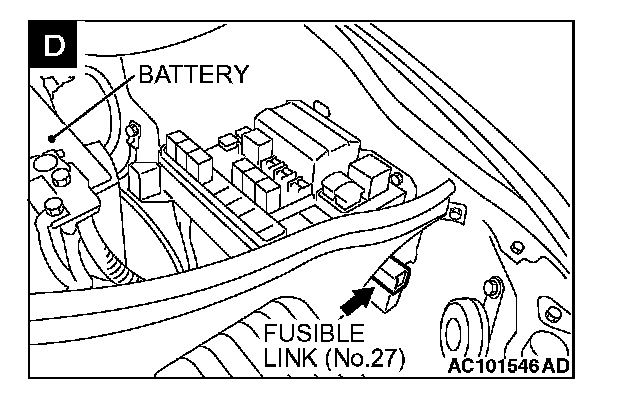

Views D:

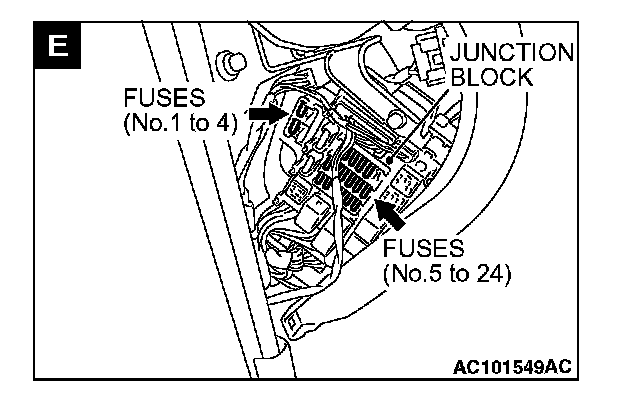

Views E:
