Powertrain Management: Locations

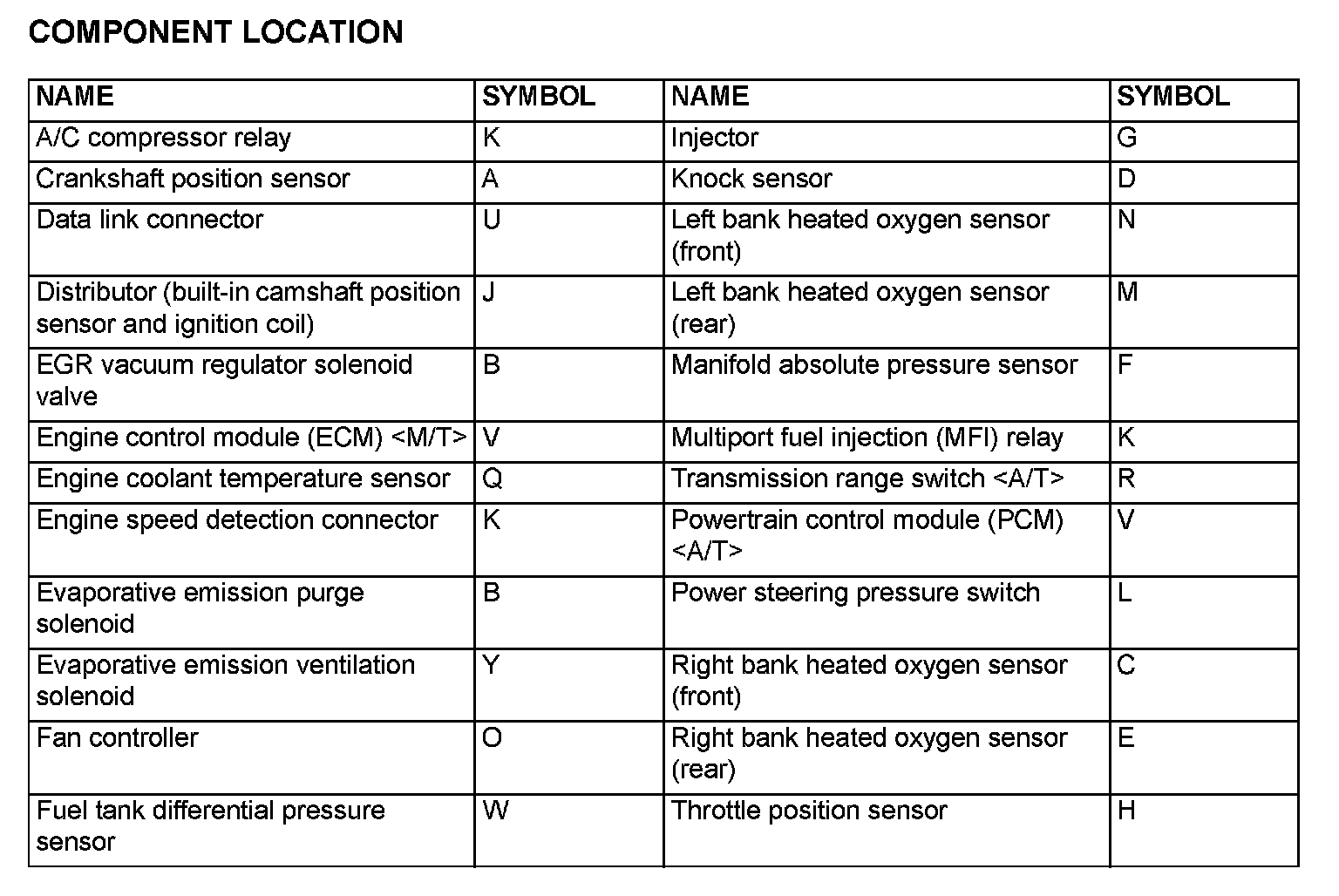

Component Location - Part 1:

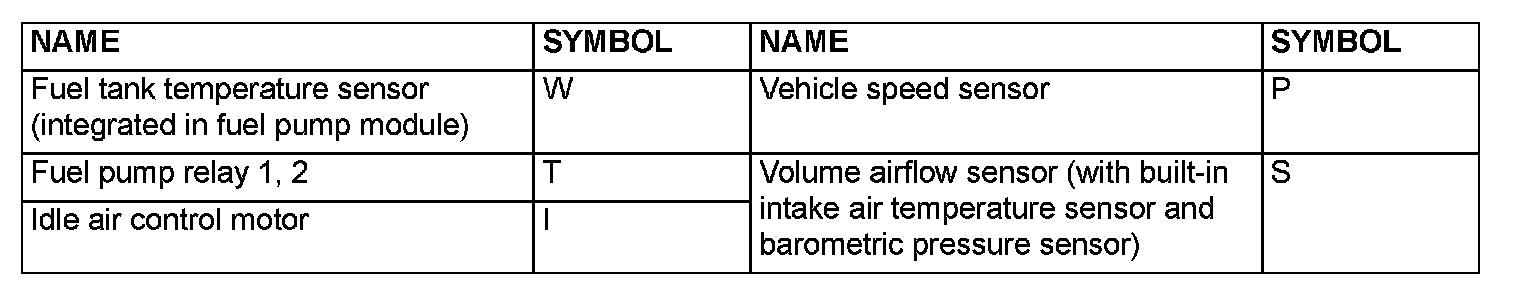

Component Location - Part 2:

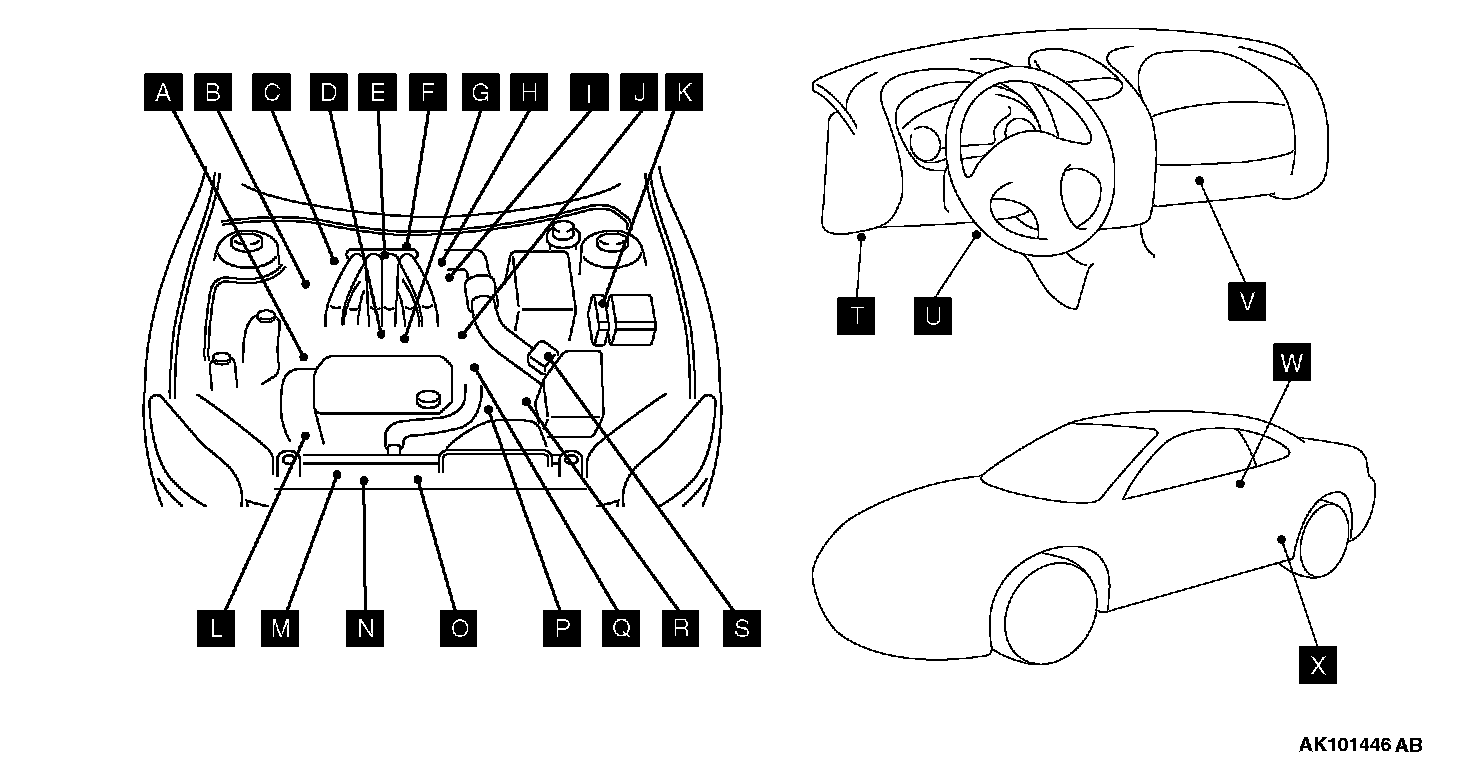

Overall View:

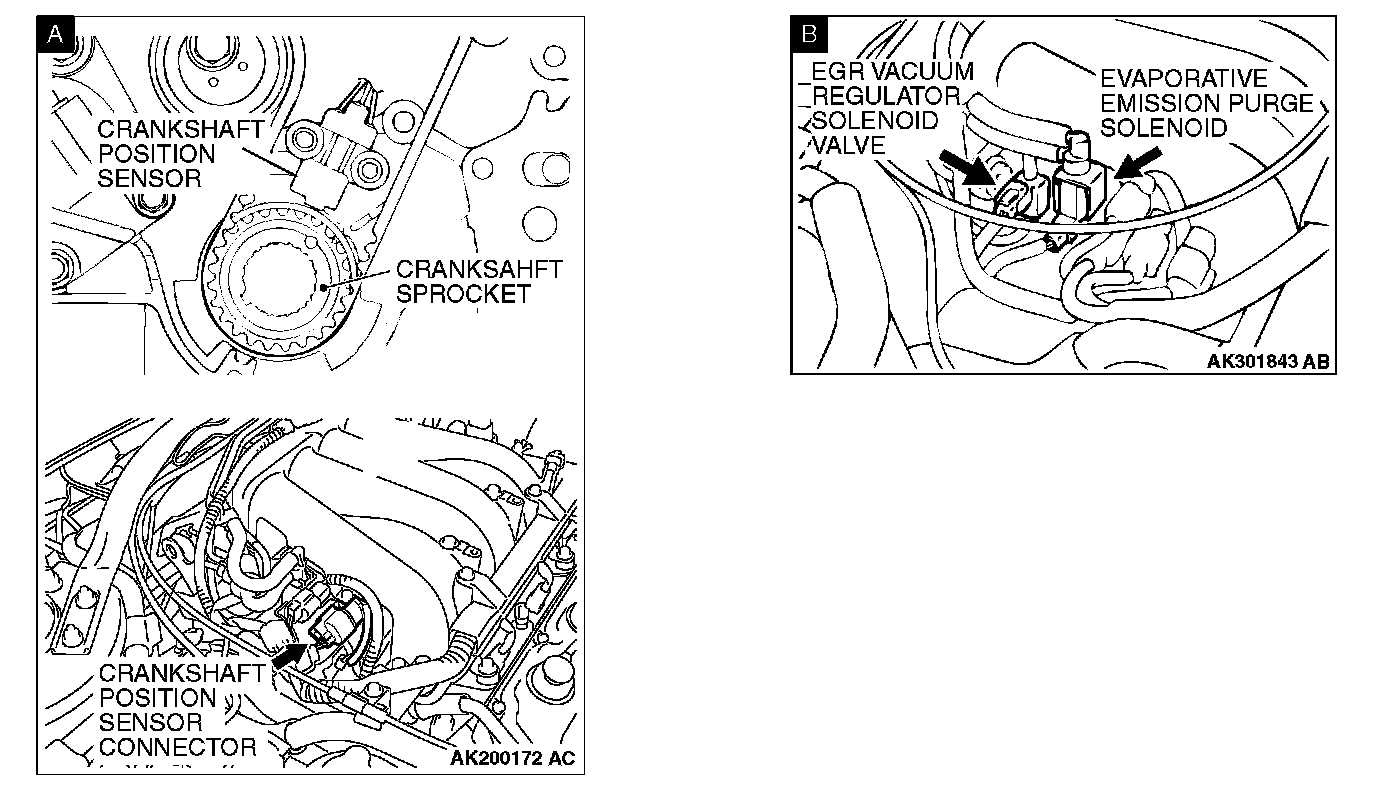

View A - B:




View C - F:

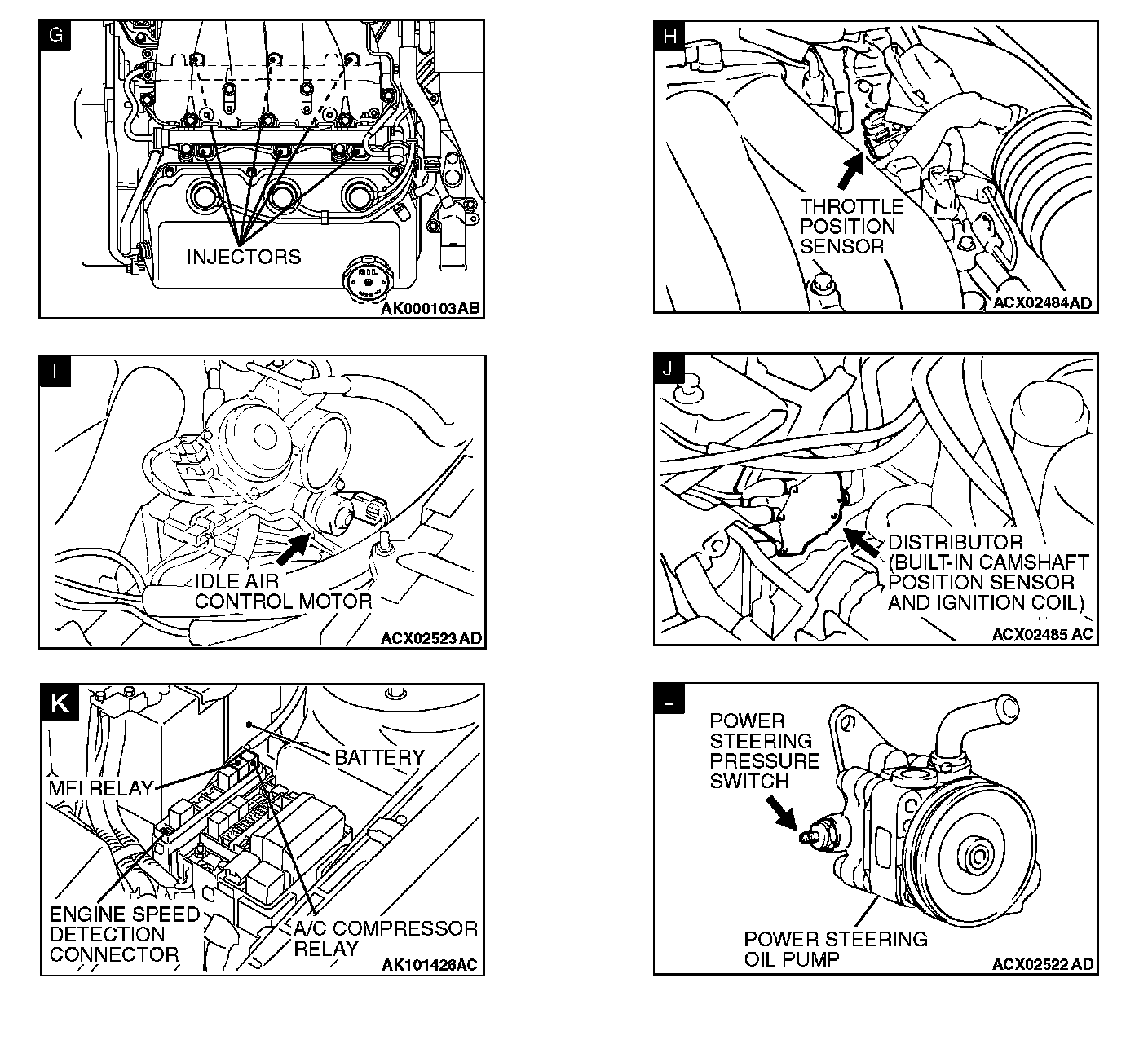

View G - L:

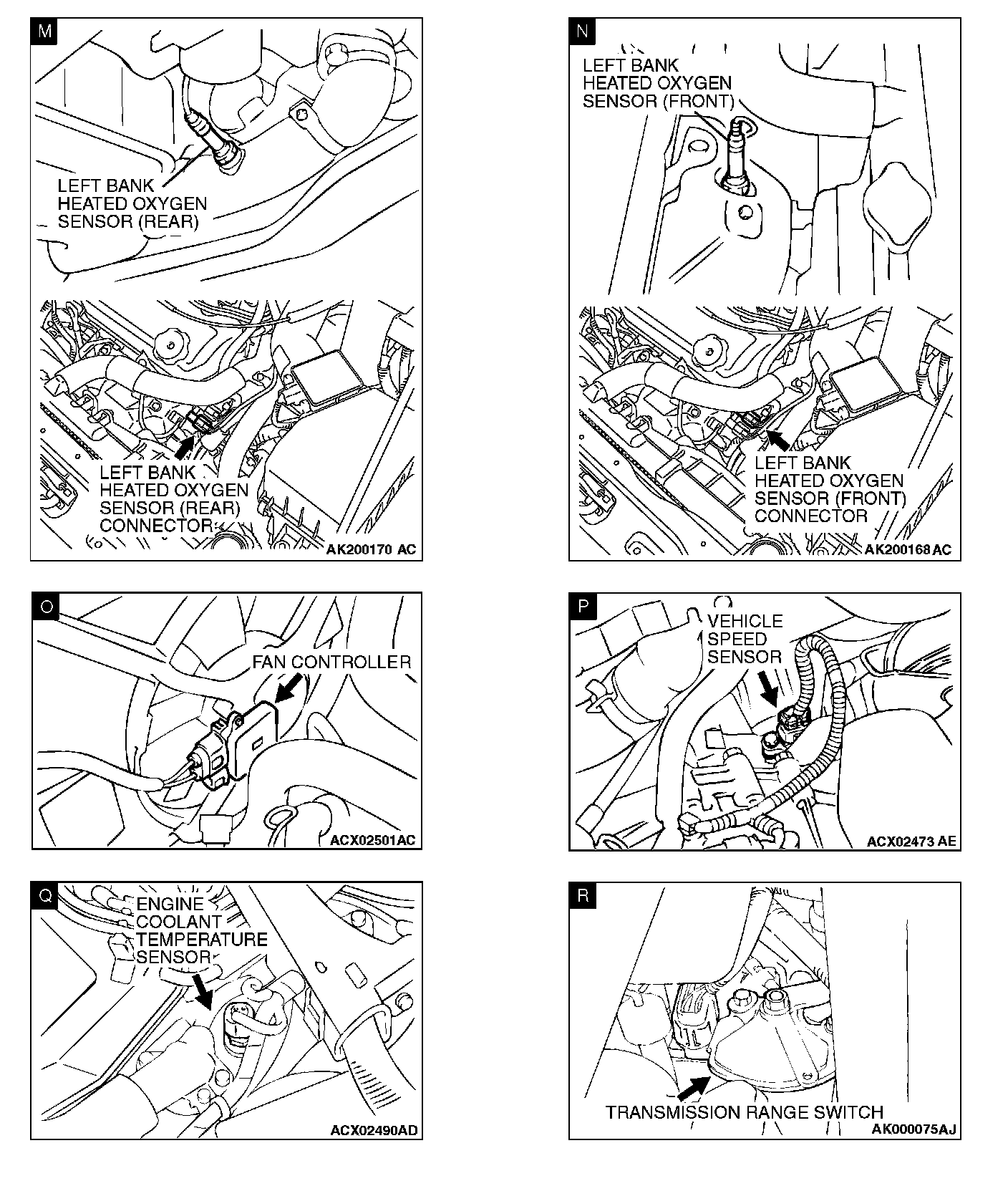

View M - R:

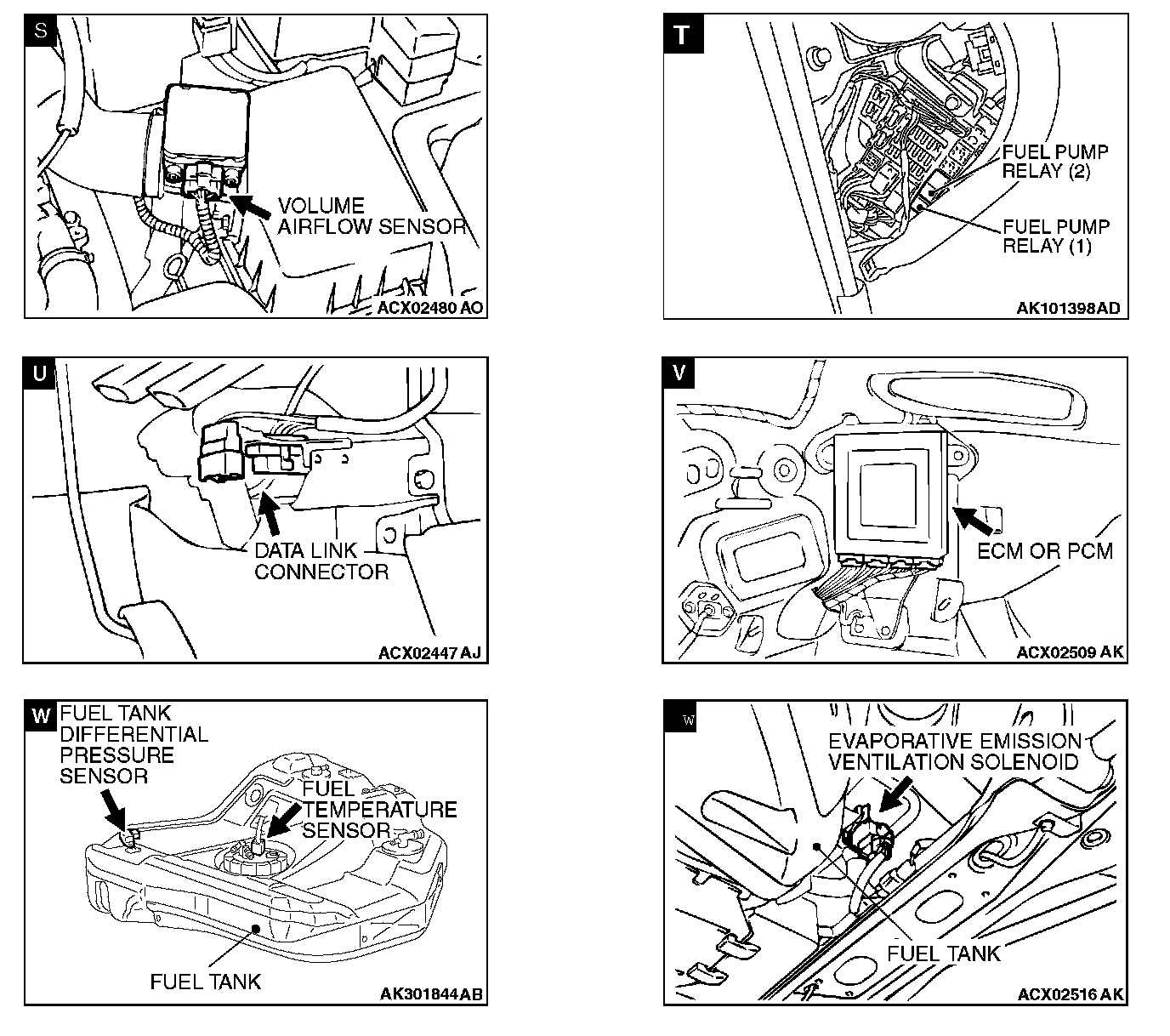

View S - X:
