Removal and Installation

Removal And Installation:

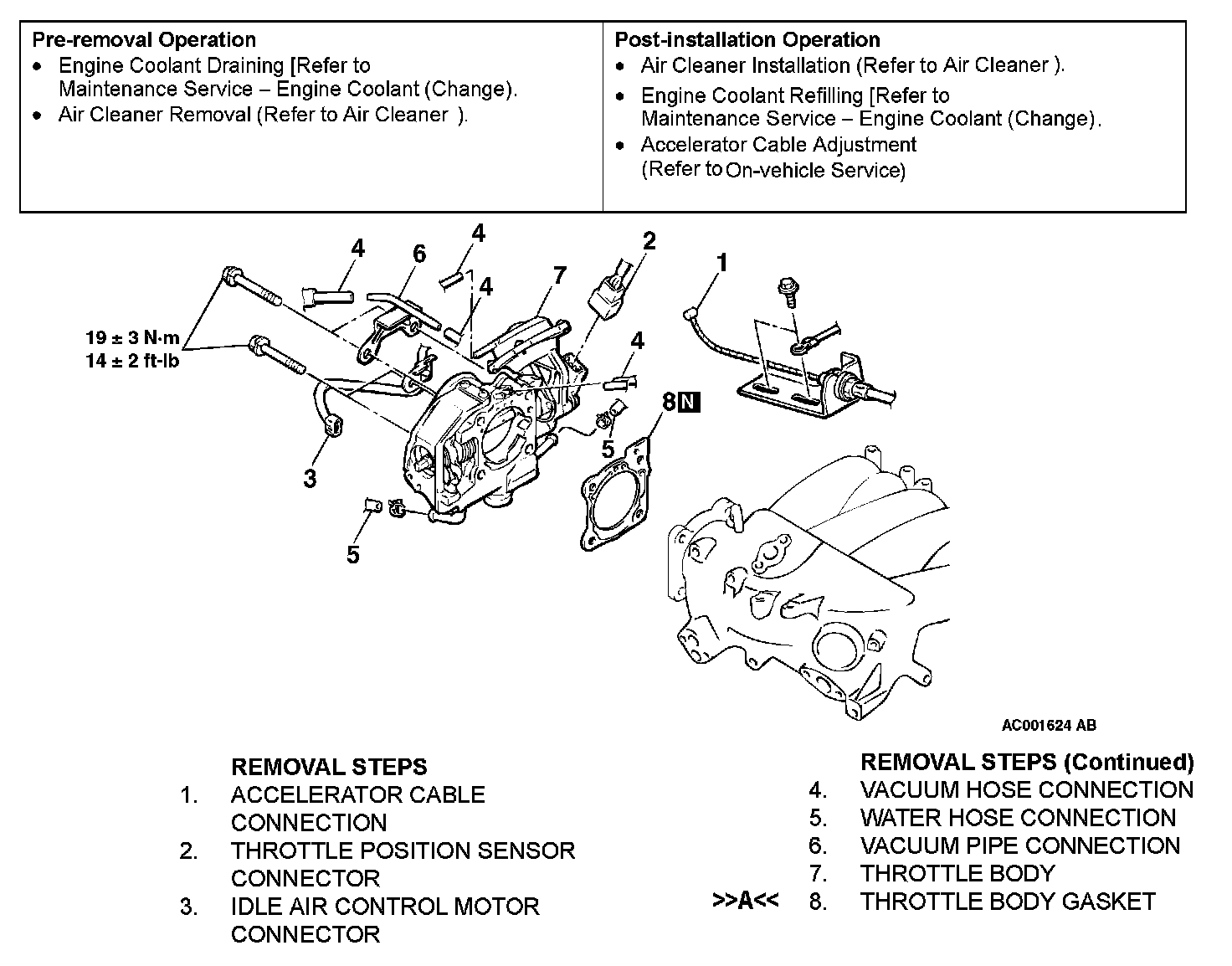

THROTTLE BODY ASSEMBLY

INSTALLATION SERVICE POINT




<> THROTTLE BODY GASKET INSTALLATION

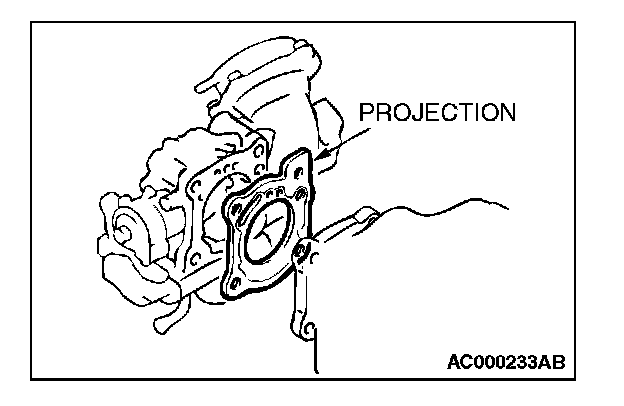

CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly. Install the throttle body gasket as shown in the illustration.
