Fuel Injector: Testing and Inspection

INJECTOR CHECK

1. Disconnect the injector intermediate connector.

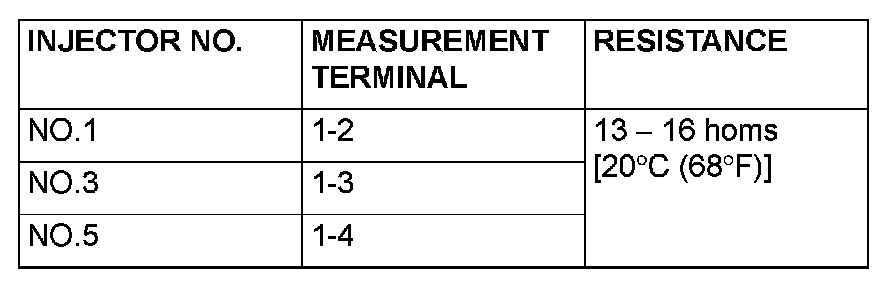

Standard value:

2. Measure the resistance between the injector intermediate connector terminals.
3. Connect the injector intermediate connector.

1. Disconnect the injector connector.

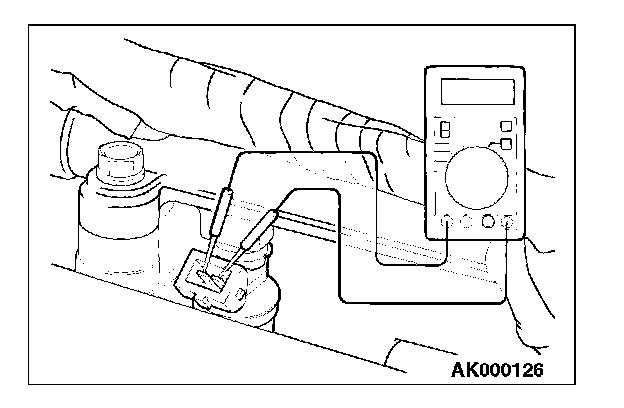

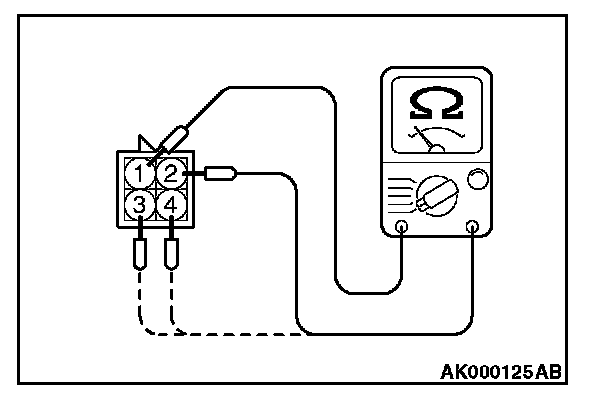

2. Measure the resistance between injector side connector terminals 1 and 2.

Standard value: 13 - 16 ohms @ 20 °C (68 °F)

3. Connect the injector connector.
