Chrysler
>>
2004
>>
Sebring Coupe V6-3.0L VIN H
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views
Terminal No.1 - 11:
Terminal No.14 - 59:
Terminal No.44 - 68:
Terminal No.65 - 80:
Terminal No.83 - 99:

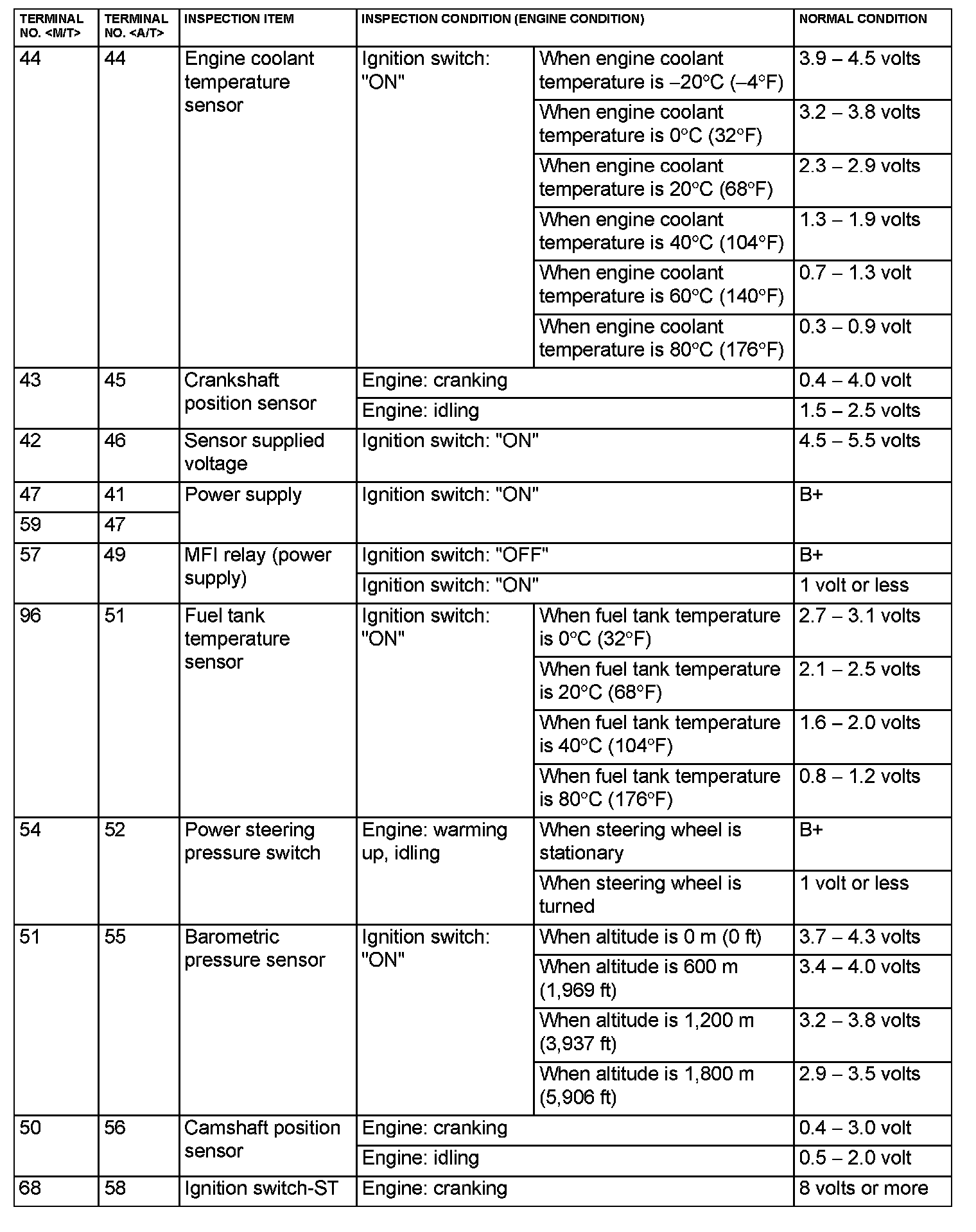

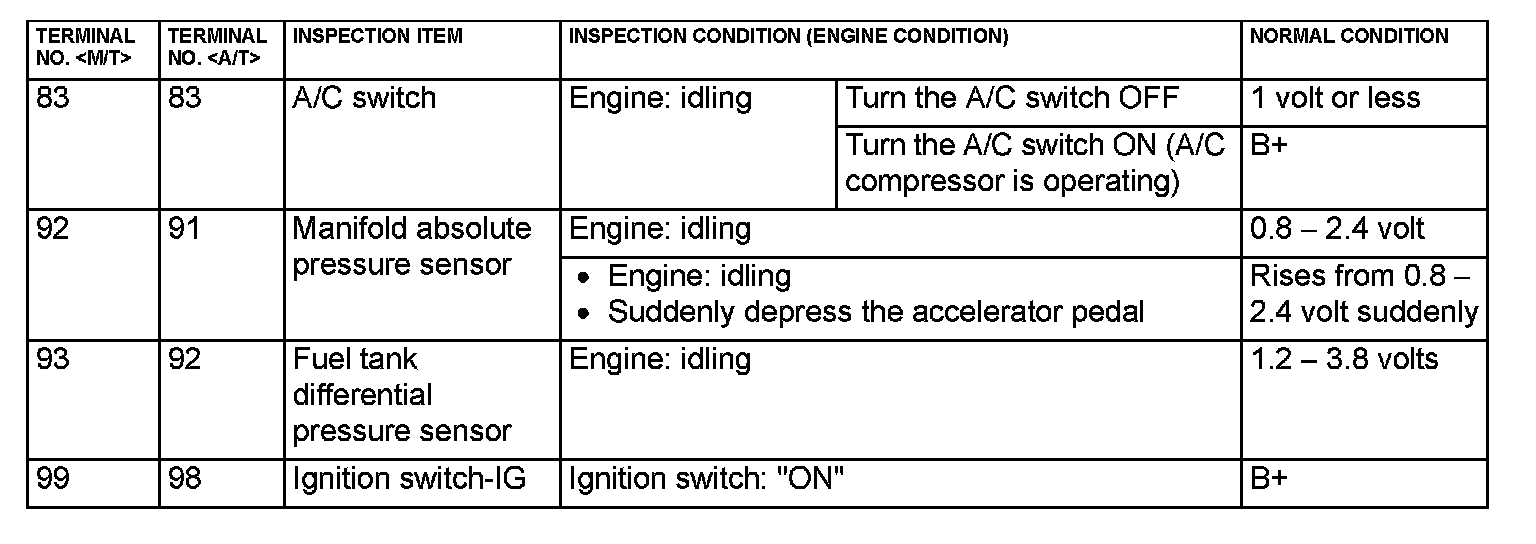

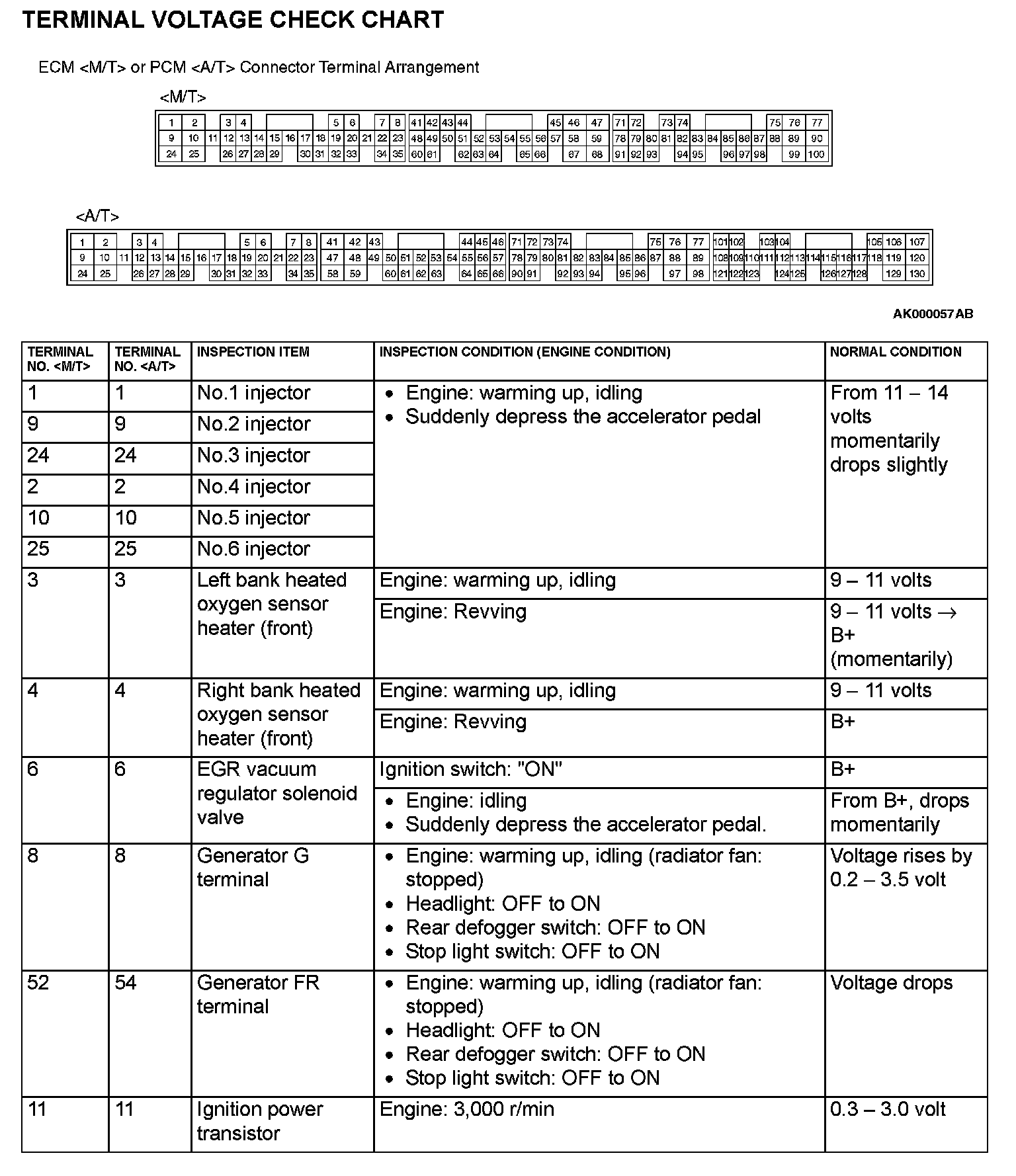

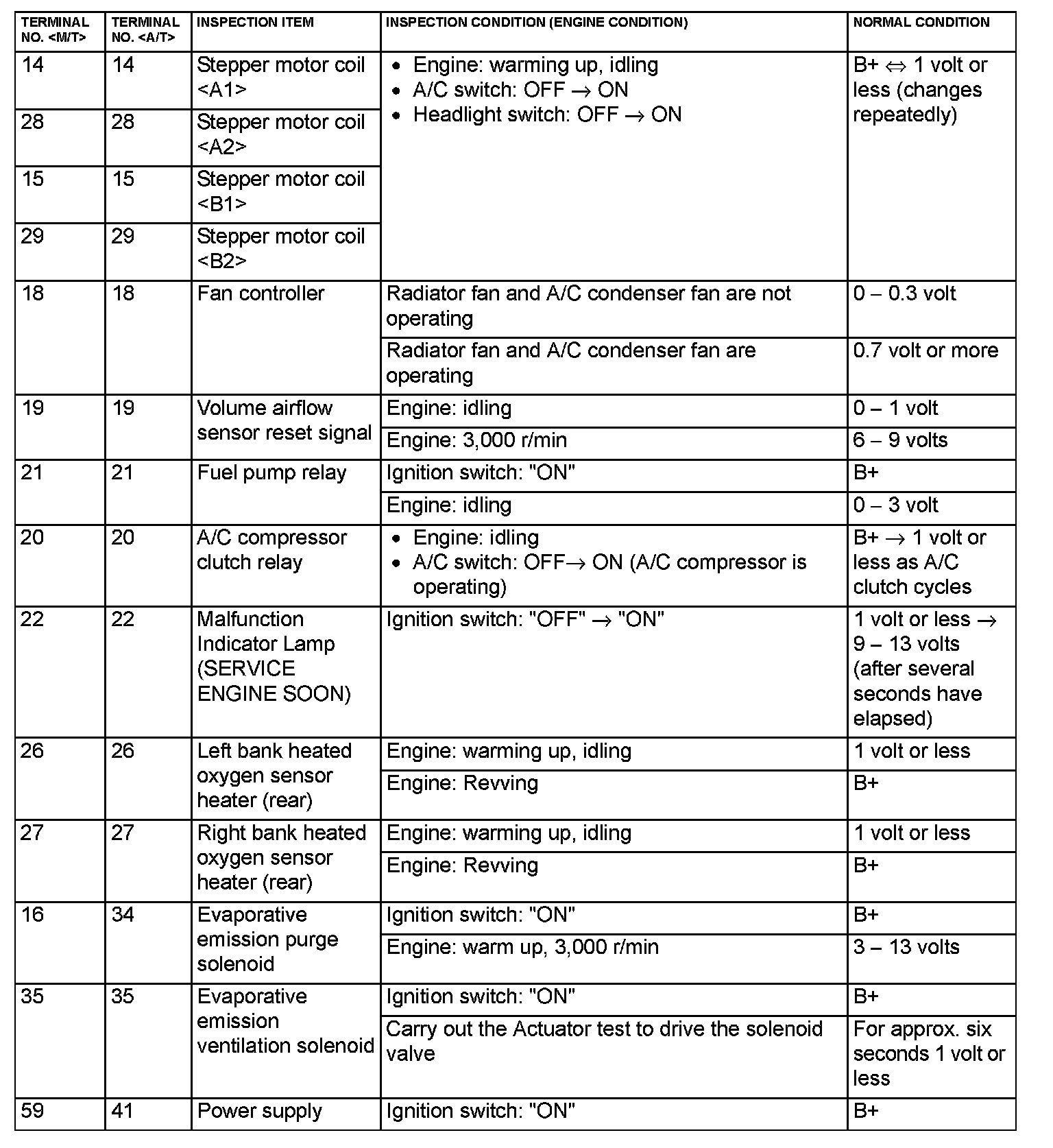

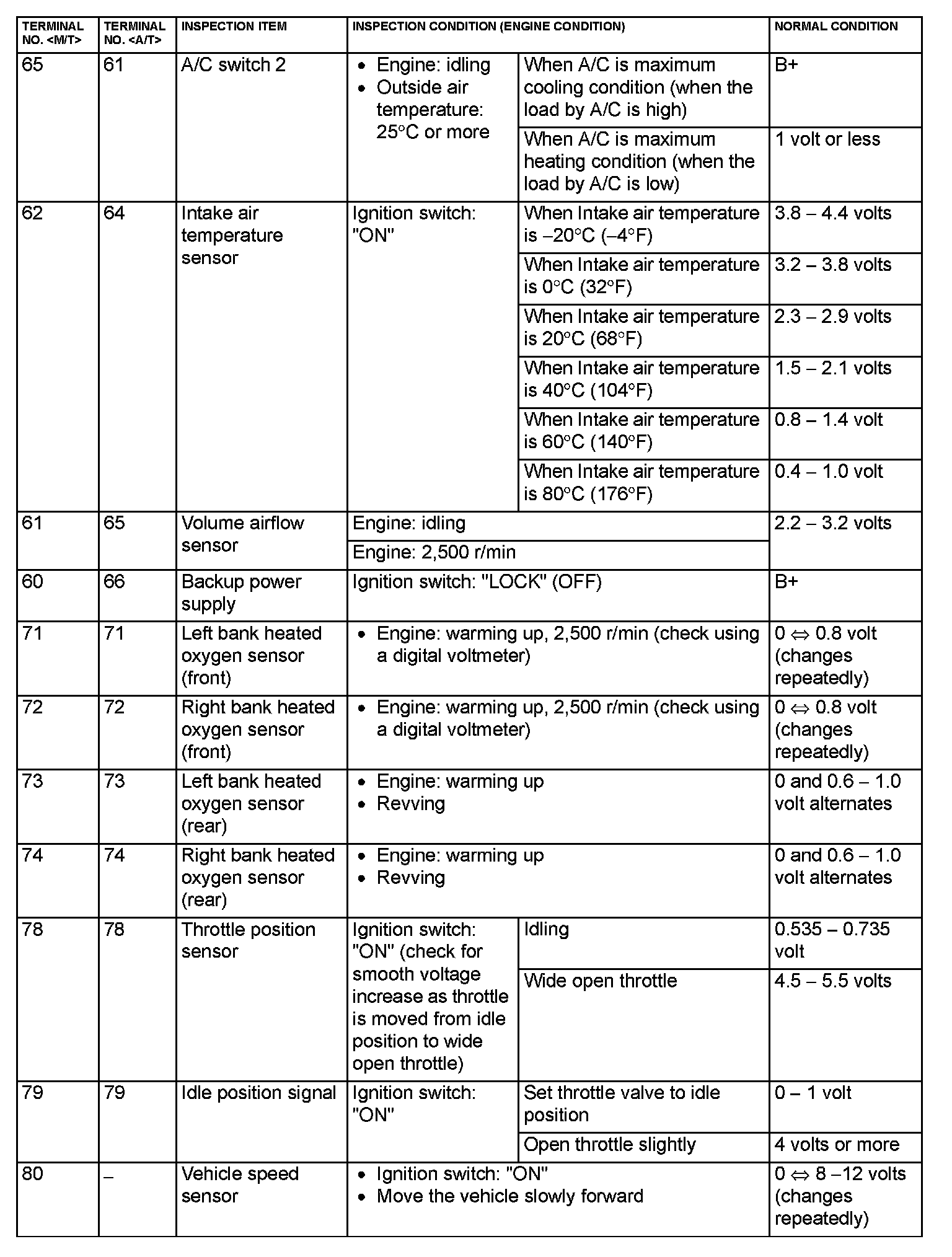

TERMINAL VOLTAGE CHECK CHART
