Front

FRONT / HUB BOLT REPLACEMENT

Required Special Tools:
MB990767: End Yoke Holder
MB991618: Hub Bolt Remover

1. Remove the caliper assembly and suspend it with wire so that it does not fall.
2. Remove the brake disc.

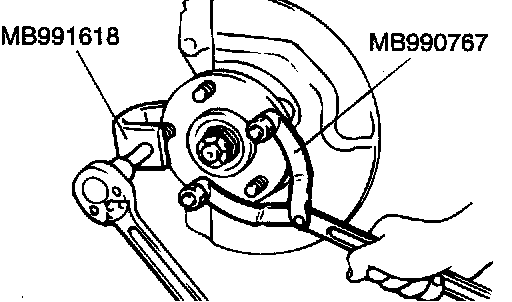

3. Use the special tools MB990767 and MB99161 to remove the hub bolts.

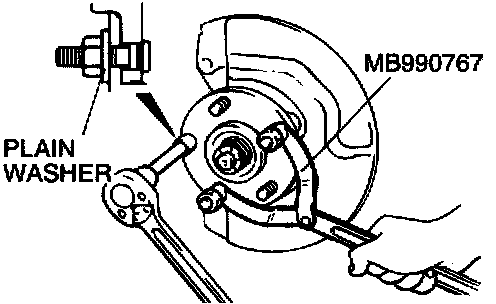

4. Install the plain washer to the new hub bolt, and install the bolt with a nut.
