Home >> Chrysler >> 2004 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Locations >> Component Locations >> Solenoid and Solenoid Valve Locations

Solenoid and Solenoid Valve Locations

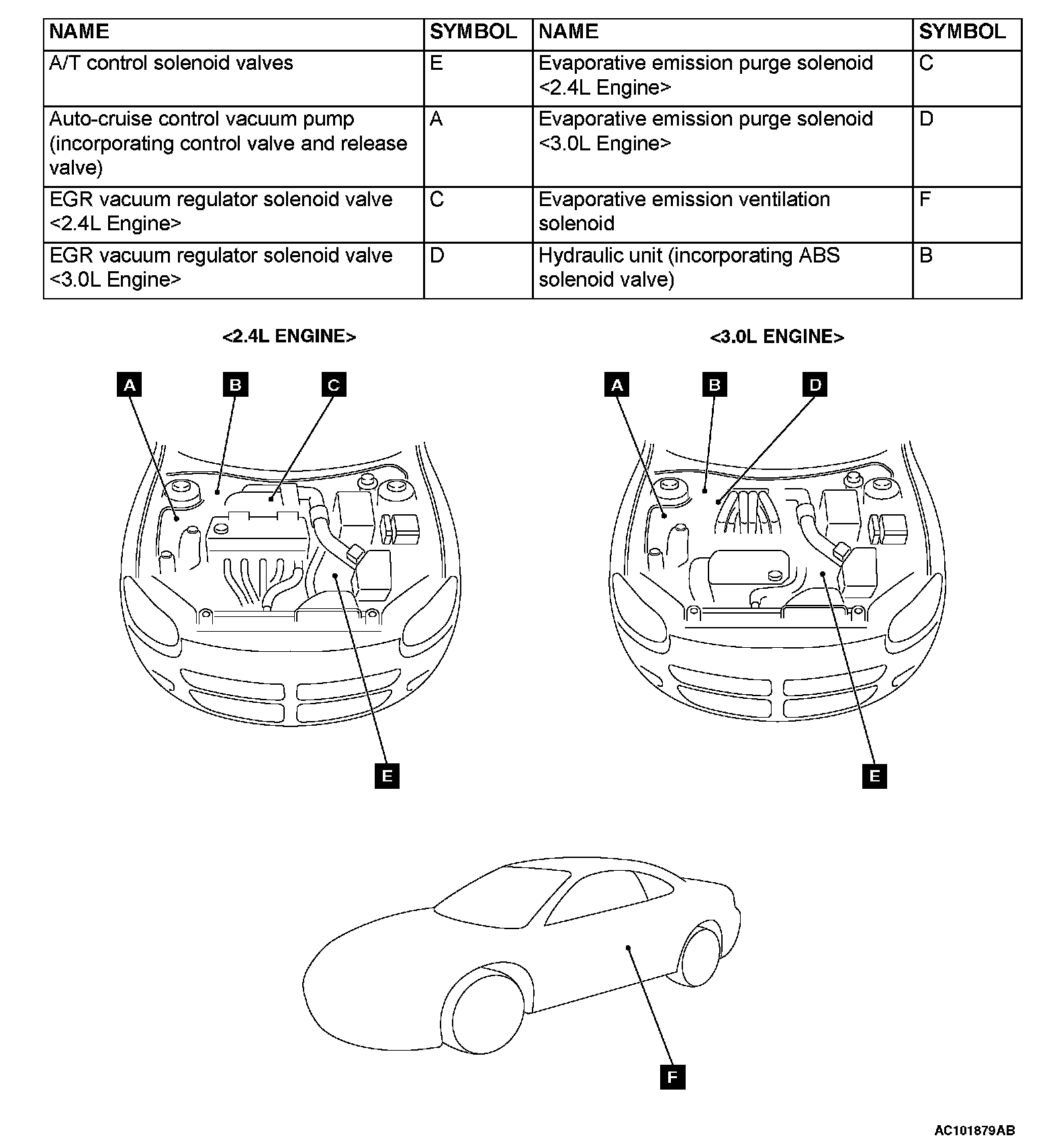

Solenoid And Solenoid Valve Location Index, Overall View:

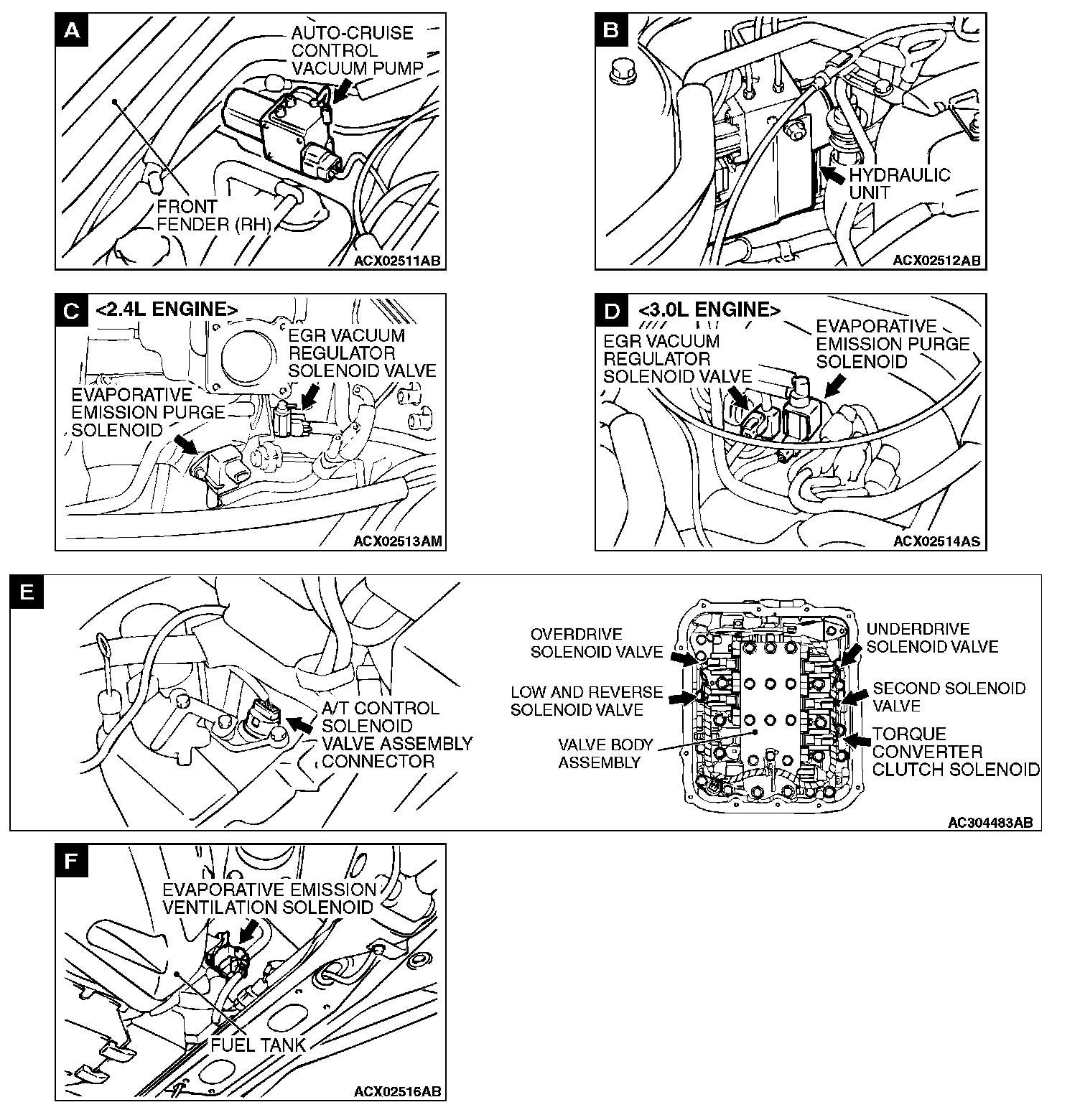

Views A - F:
