Instrument Cluster Replacement

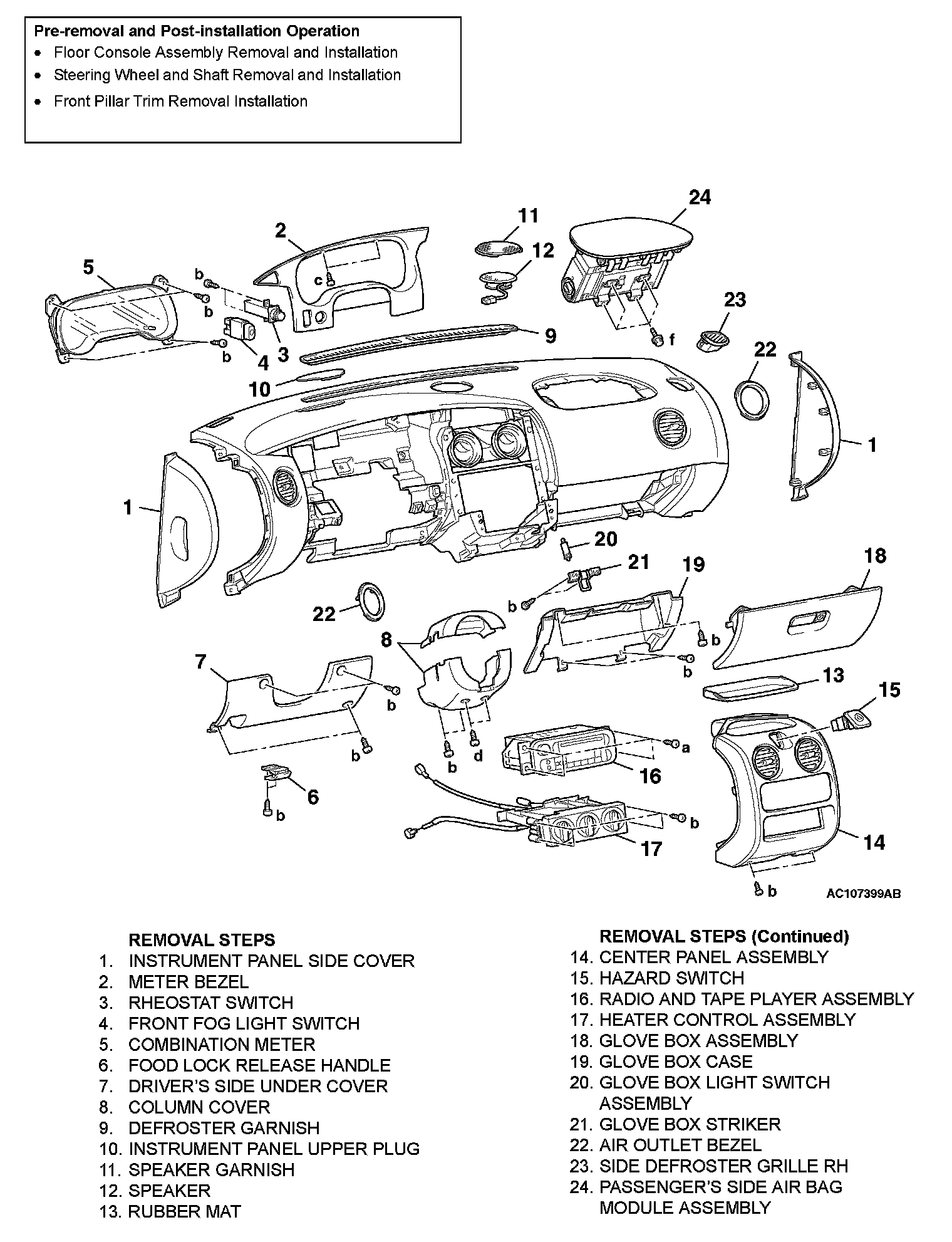

Instrument Panel Assembly:

WARNING For removal and installation of the passengers side air bag module, always observe the service procedures described, Air Bag Module and Clock Spring.

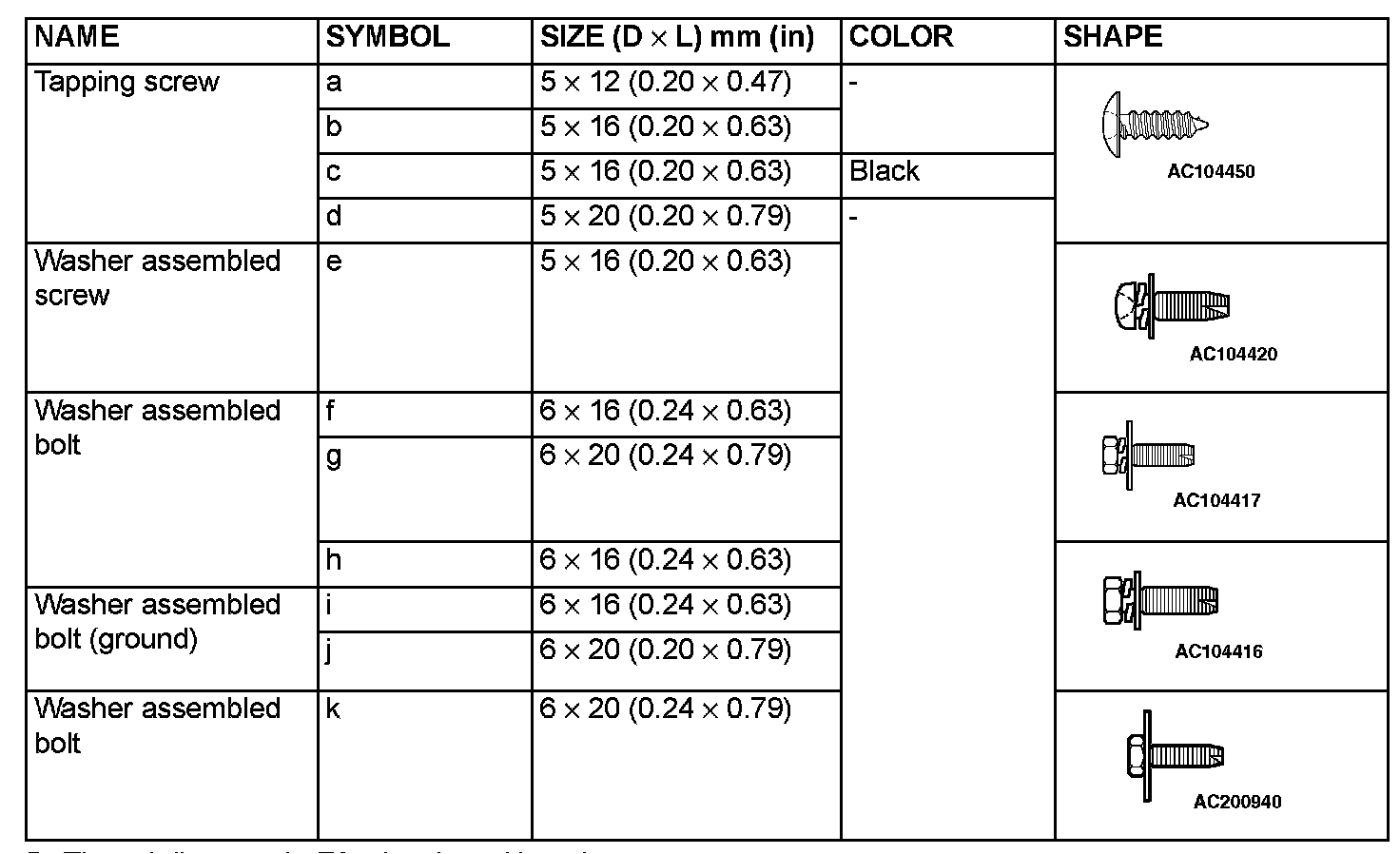

The bolts and screws described below are used for installation of the instrument panel. They are indicated by symbols in the illustration.
