Engine Roll Stopper

ENGINE ROLL STOPPER AND CENTERMEMBER

REMOVAL AND INSTALLATION

CAUTION: Mounting indications marked by * should be provisionally tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.








INSTALLATION SERVICE POINT

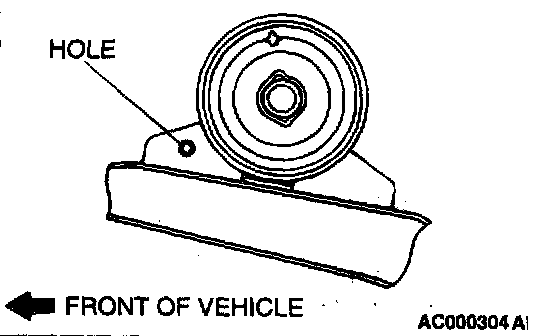

>>A<< FRONT ROLL STOPPER INSTALLATION





Install so that the hole in the front roll stopper is facing towards the front of the vehicle.
