C Connector - Dash Panel

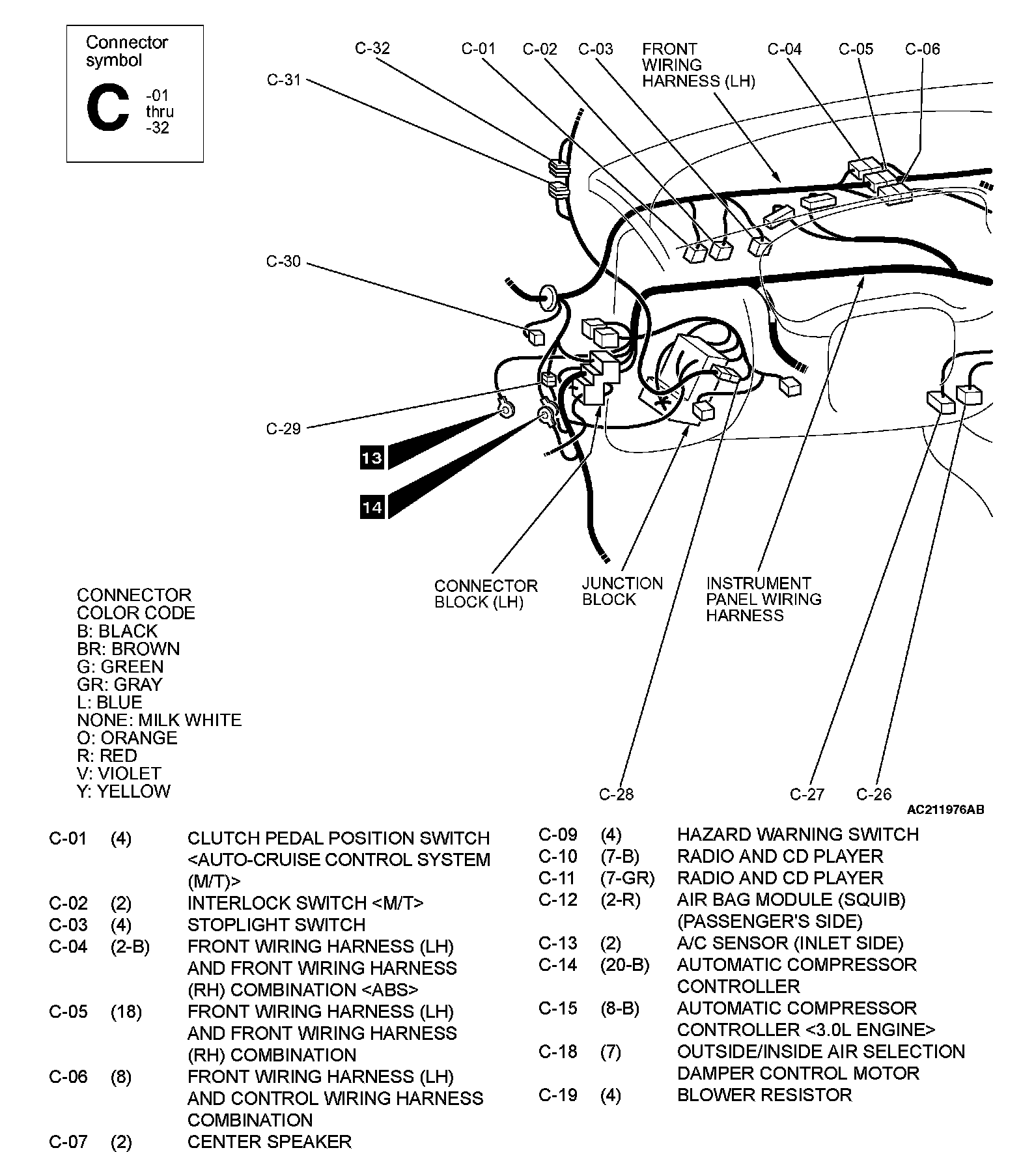

Dash Panel - C Connector [ 01(4) Thru 19(4) ]:

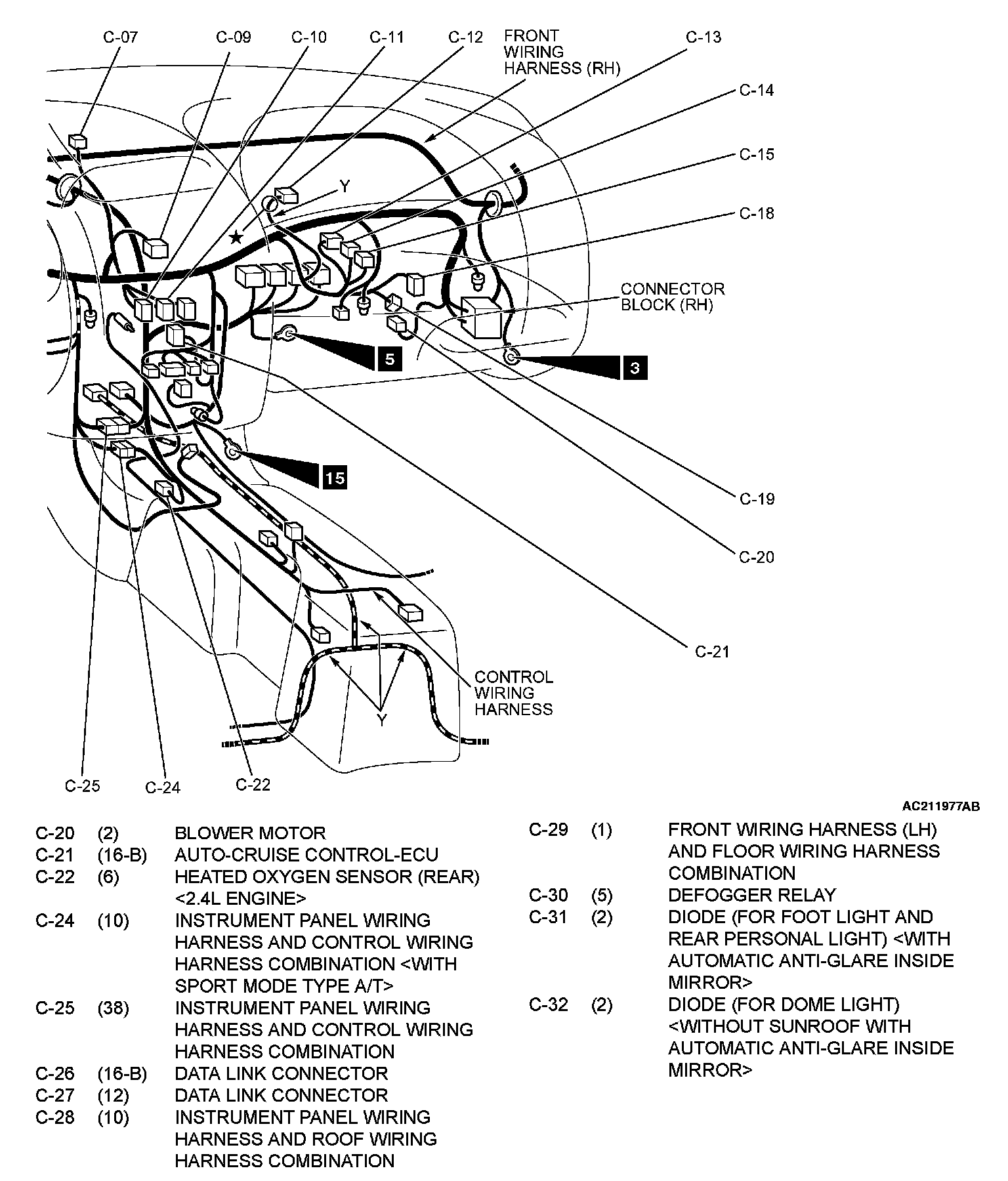

Dash Panel - C Connector [ 20(2) Thru 32(2) ]:

Dash Panel - C Connector [ 101(22-L) Thru 119(28-GR) ]:

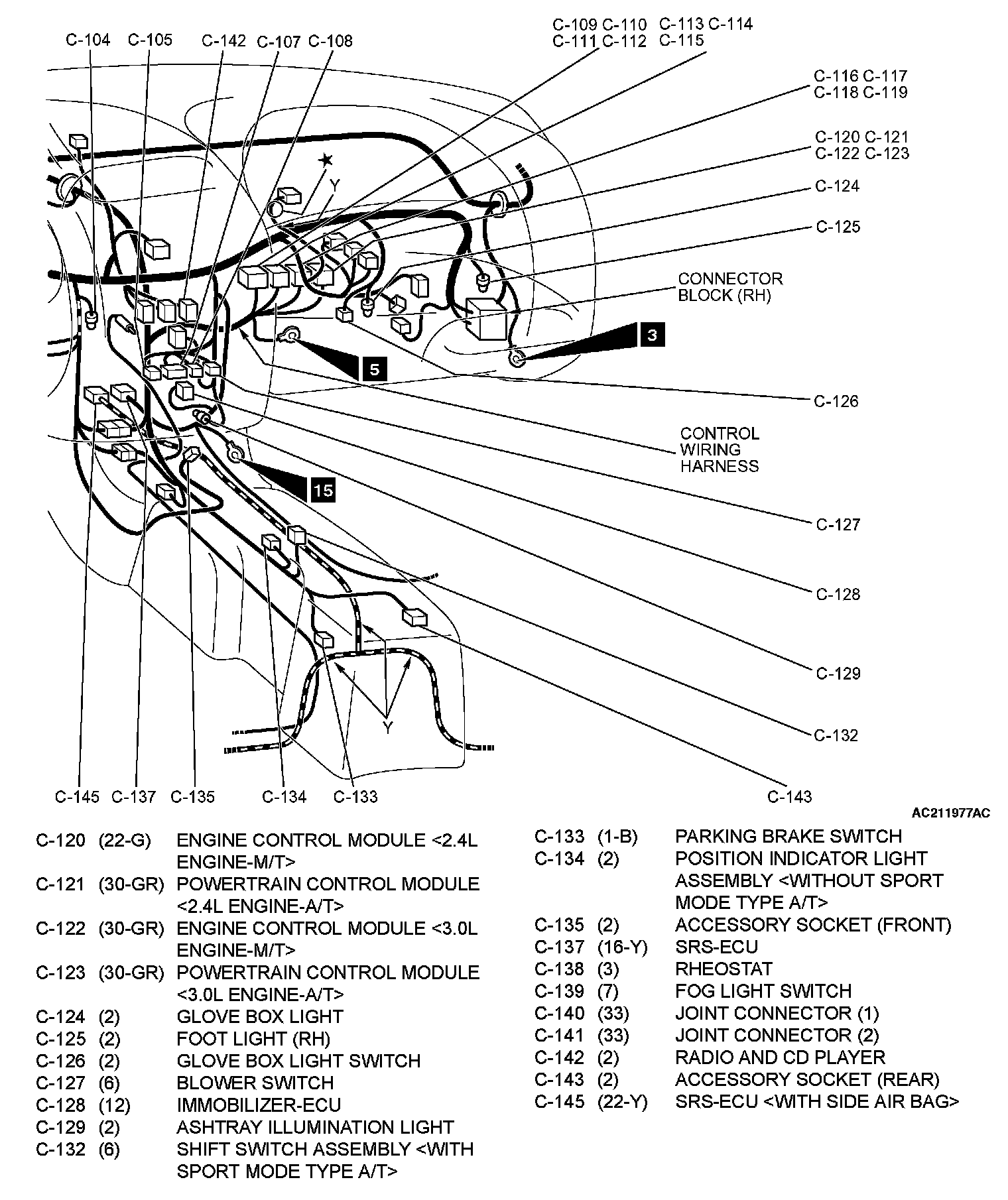

Dash Panel - C Connector [ 120(22-G) Thru 145(22-Y) ]:

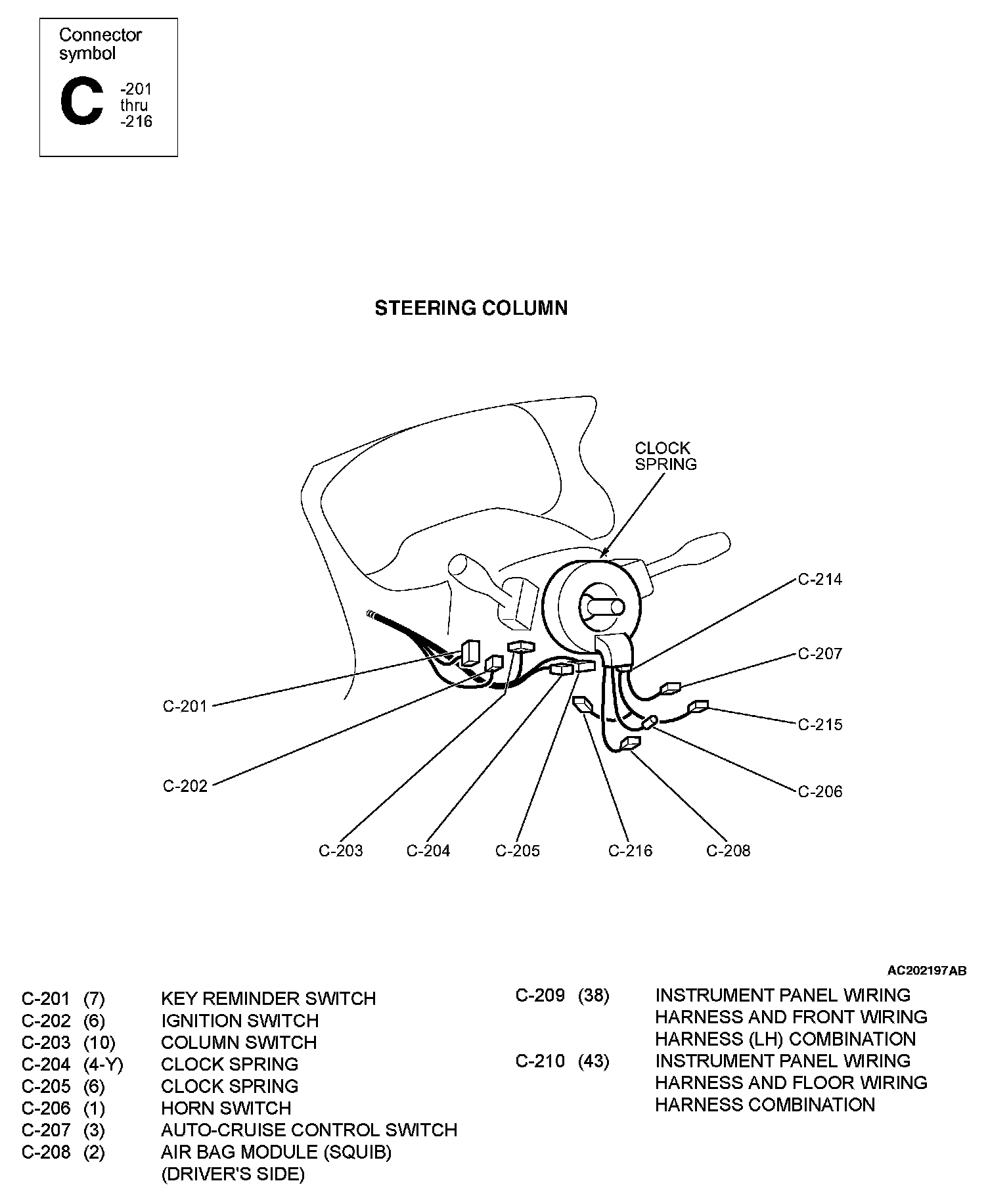

Dash Panel - C Connector [ 201(7) Thru 210(43) ]:

Dash Panel - C Connector [ 211(32-B) Thru 216(2) ]:

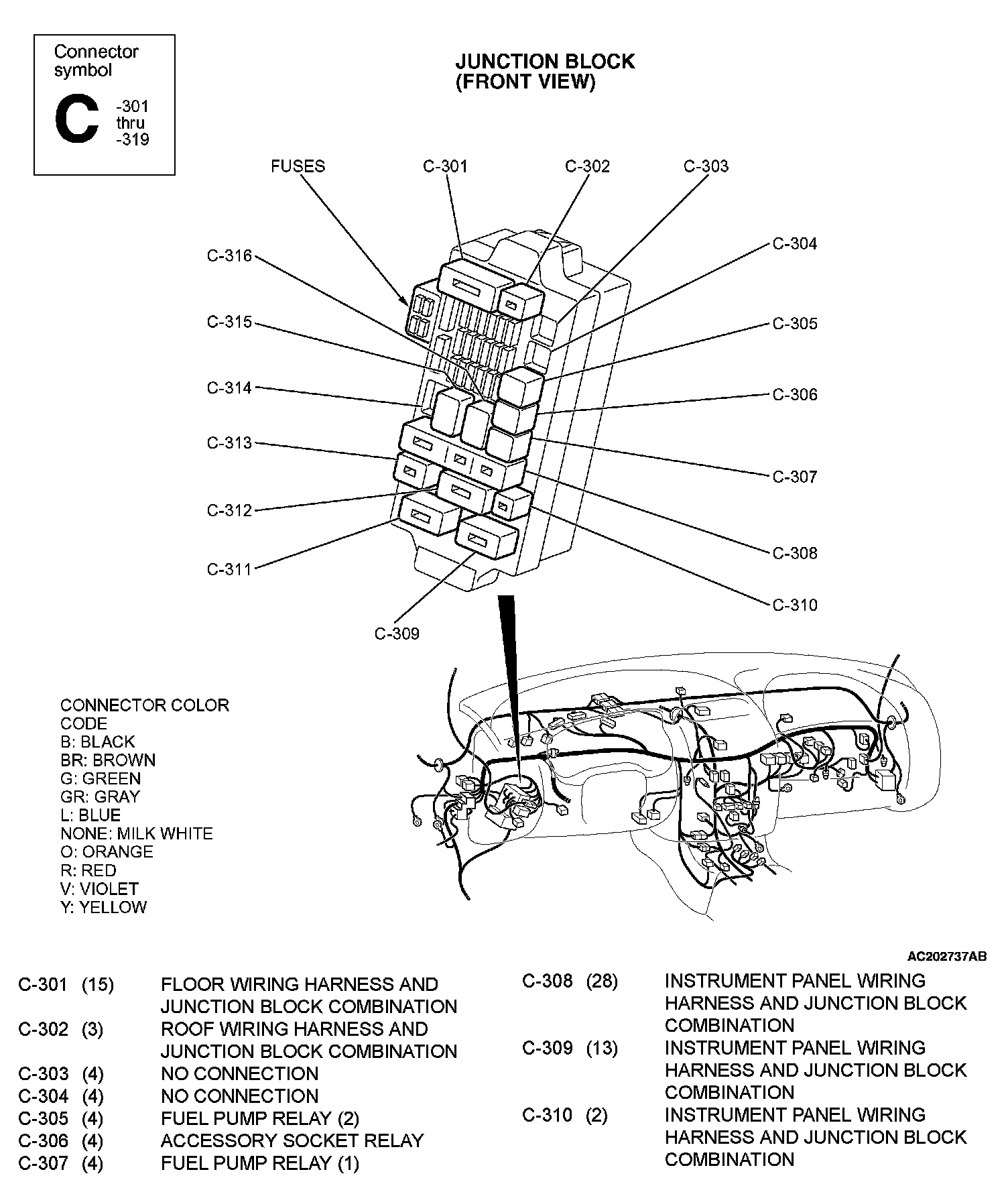

Dash Panel - C Connector [ 301(15) Thru 310(2) ]:

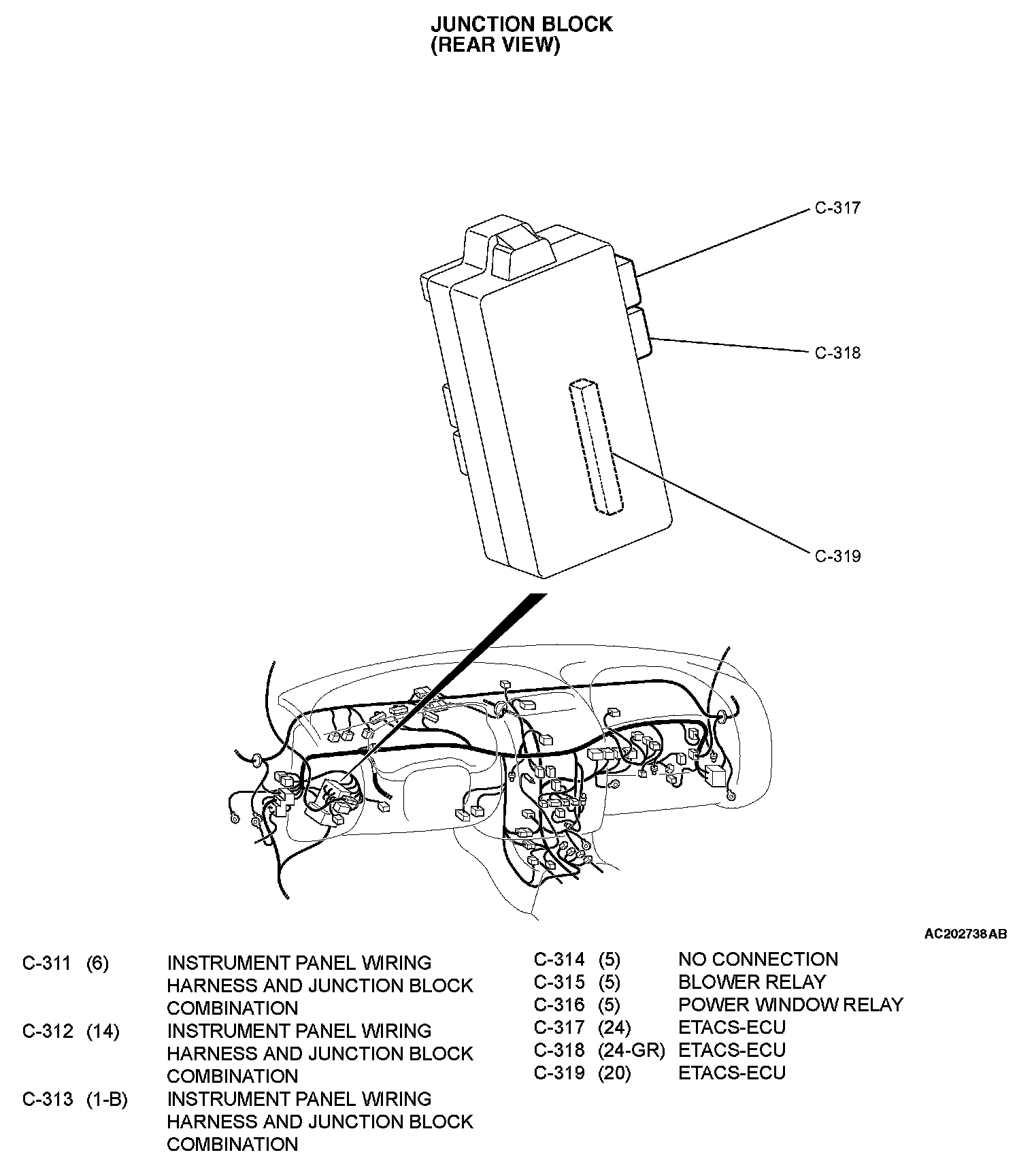

Dash Panel - C Connector [ 311(6) Thru 319(20) ]:
