Basic Brake System

DISASSEMBLY AND ASSEMBLY

CAUTION: Do not disassemble the primary piston and secondary piston assembly.

DISASSEMBLY SERVICE POINT

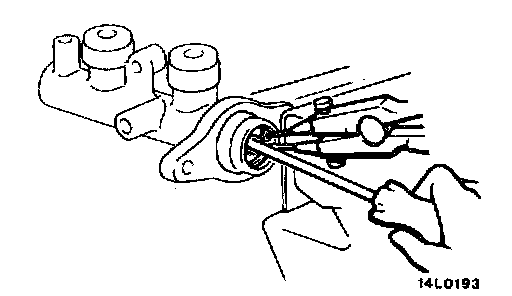

<> PISTON STOPPER RING DISASSEMBLY

Remove the piston stopper ring while depressing the piston.

INSPECTION
^ Check the inner surface of master cylinder body for rust or pitting.
^ Check the primary and secondary pistons for rust, scoring, wear or damage.
^ Check the diaphragm for cracks and wear.
