Home >> Chrysler >> 2004 >> Sebring Coupe L4-2.4L VIN G >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Specifications

Engine Specifications

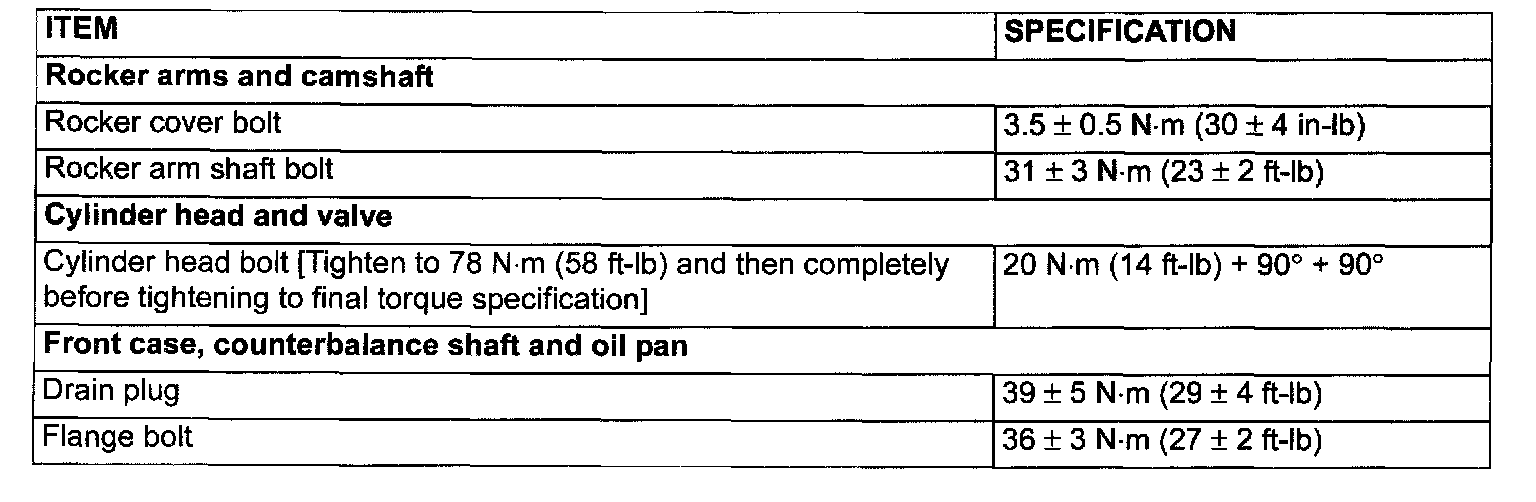

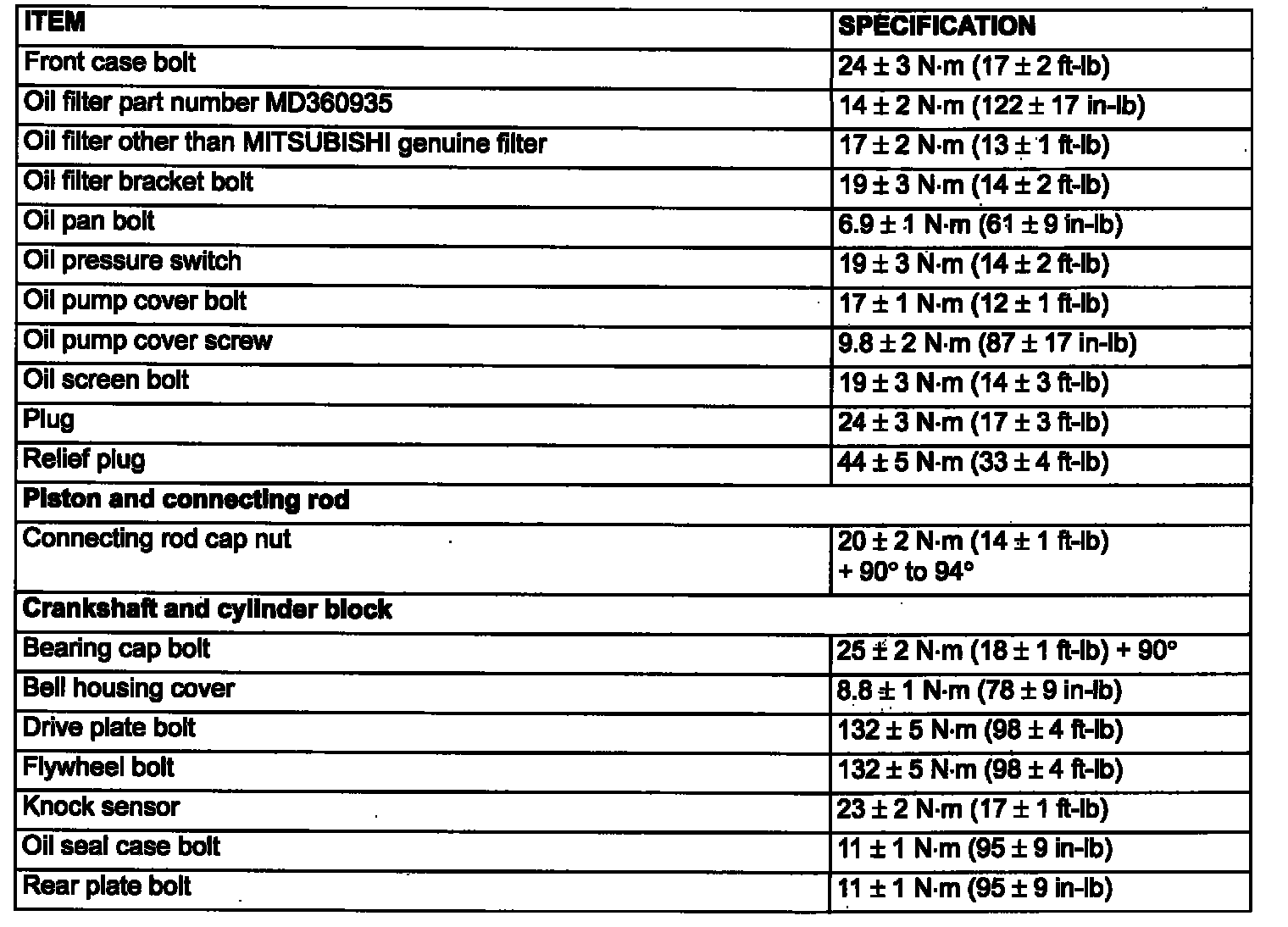

FASTENER TIGHTENING SPECIFICATIONS









For Cylinder Head Tightening Sequence Service and Repair
