Ignition Coil Check

IGNITION COIL CHECK




<2.4L ENGINE - With built-in ignition power transistor>
Check by the following procedure, and replace the coil if there is a malfunction.

SECONDARY COIL RESISTANCE CHECK

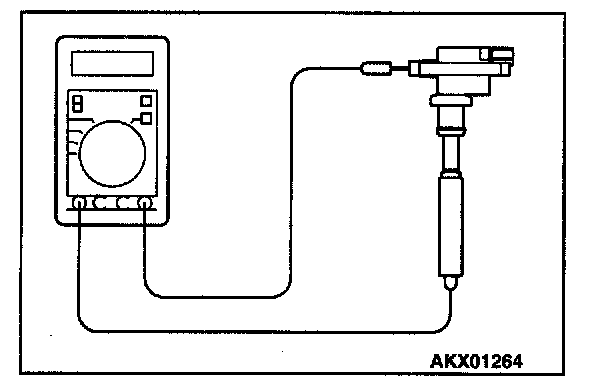

Measure the resistance between the high-voltage terminals of the ignition coil.

Standard value: 8.5 - 11.5 kilo ohms
