OBD II Drive Cycle

All kinds of diagnostic trouble codes (DTCs) can be monitored by carrying out a short drive according to the following six drive cycle pattern. In other words doing such a drive regenerates any kind of trouble which involves illuminating the Malfunction Indicator Lamp (SERVICE ENGINE SOON ) and verifies the repair procedure has eliminated the trouble (the Malfunction Indicator Lamp (SERVICE ENGINE SOON) is no longer illuminated).

CAUTION: Two technicians should always be in the vehicle when carrying out a test drive.

NOTE: Check that the diagnosis trouble code (DTC) is not output before traveling in the drive cycle pattern. Erase the DTC if it has been output.

Drive Cycle Pattern List:

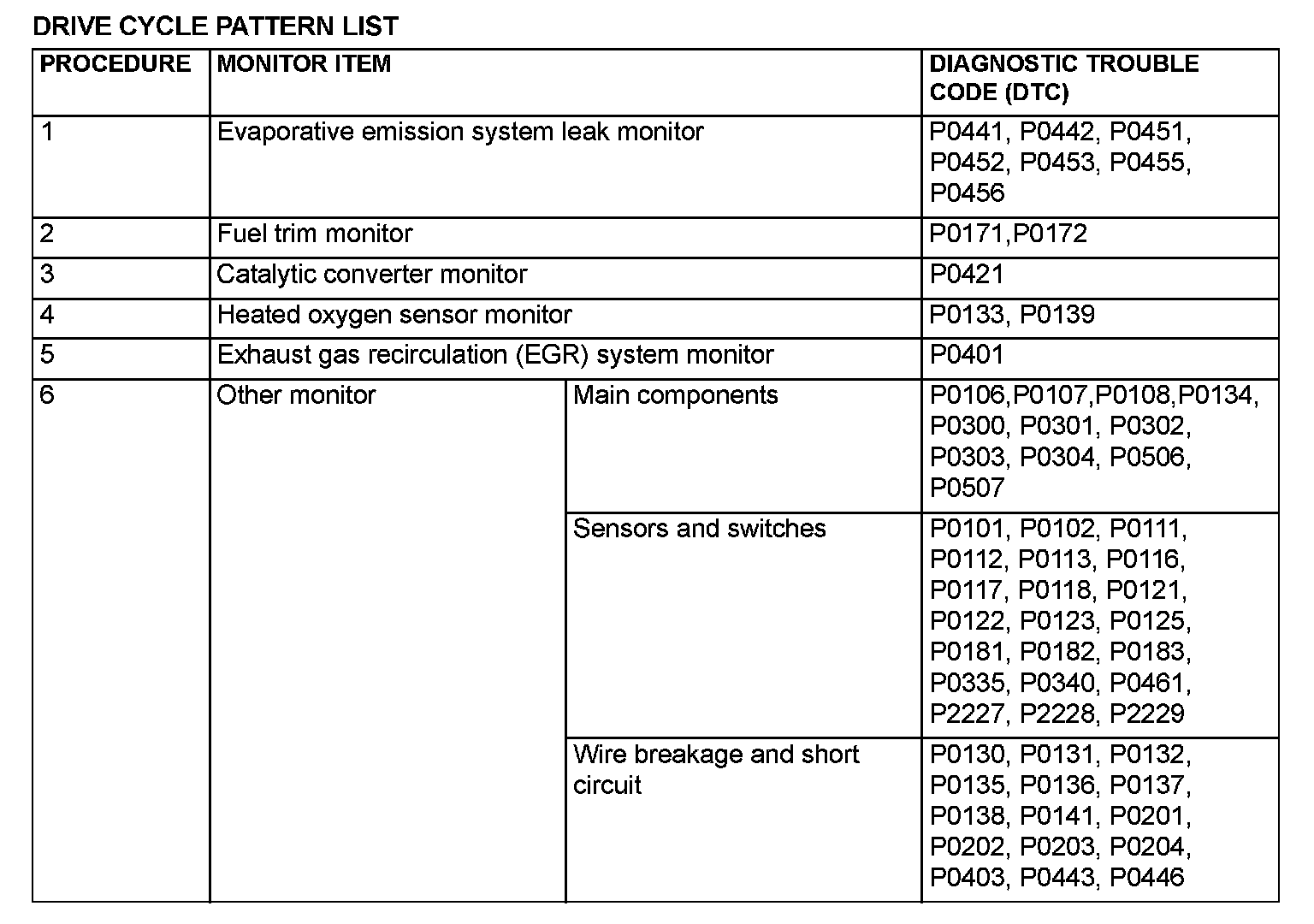

DRIVE CYCLE PATTERN LIST

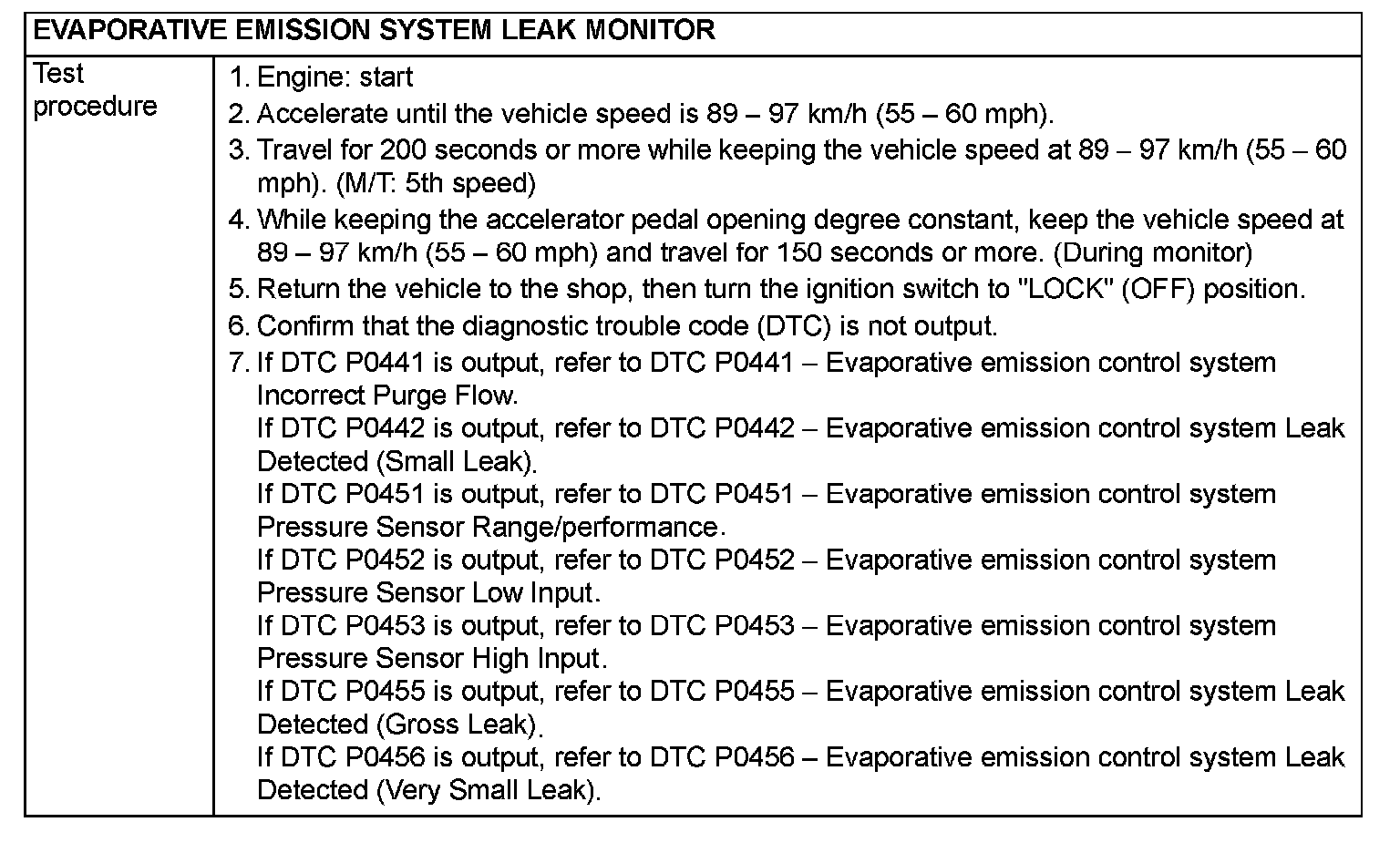

Evaporative Emission System Leak Monitor Part 1:




Evaporative Emission System Leak Monitor Part 2:

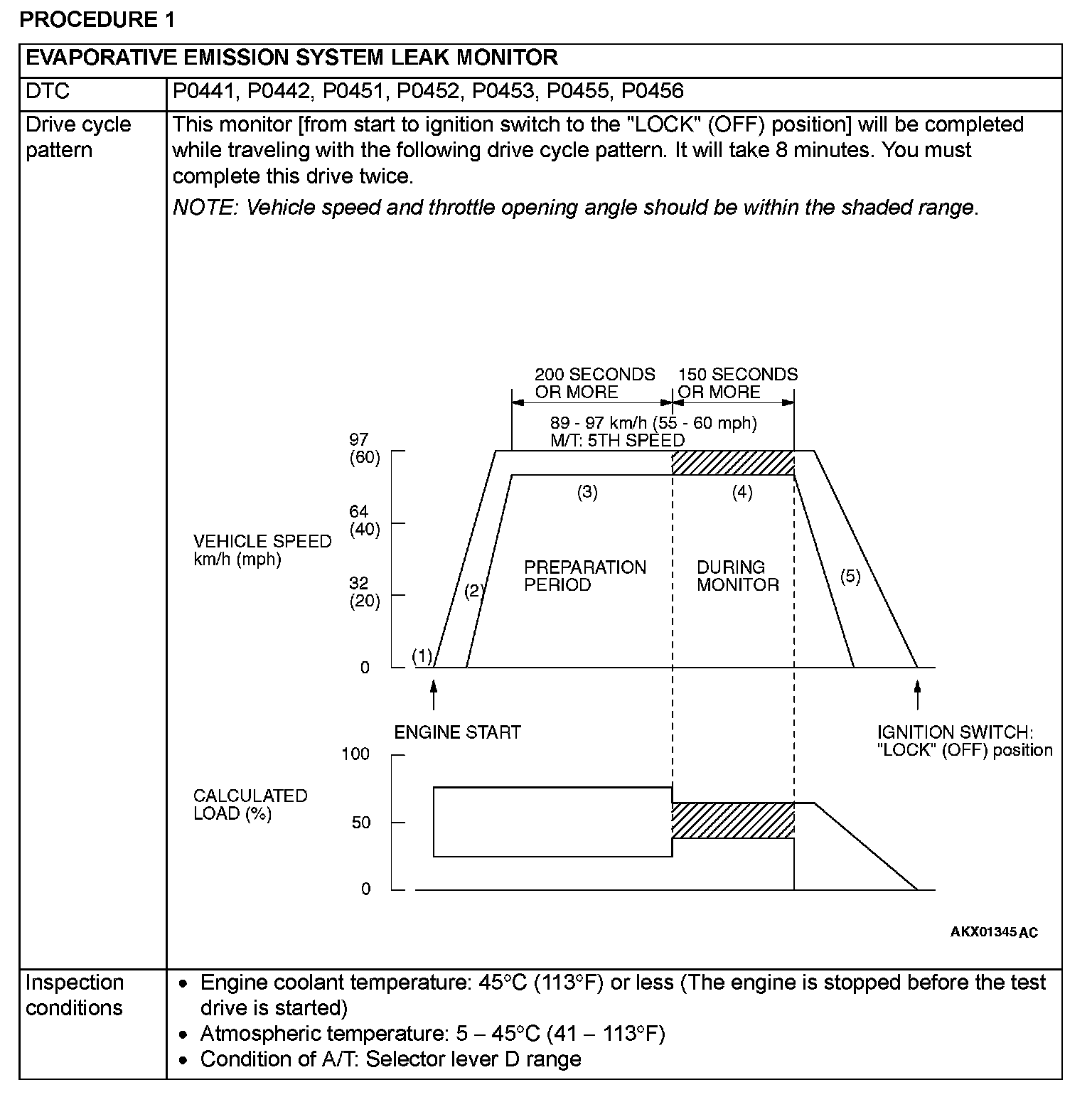

PROCEDURE 1

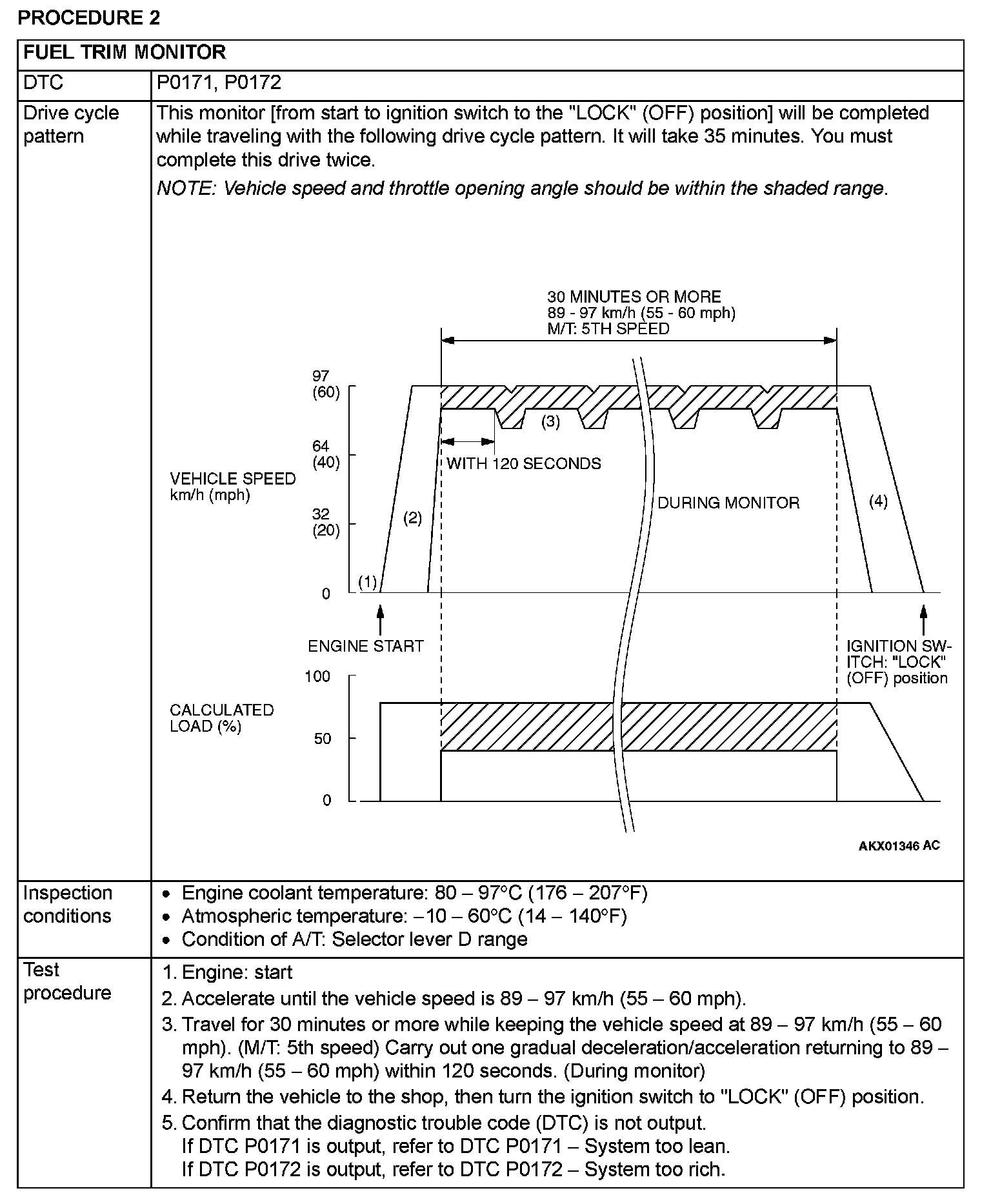

Fuel Trim Monitor:




PROCEDURE 2

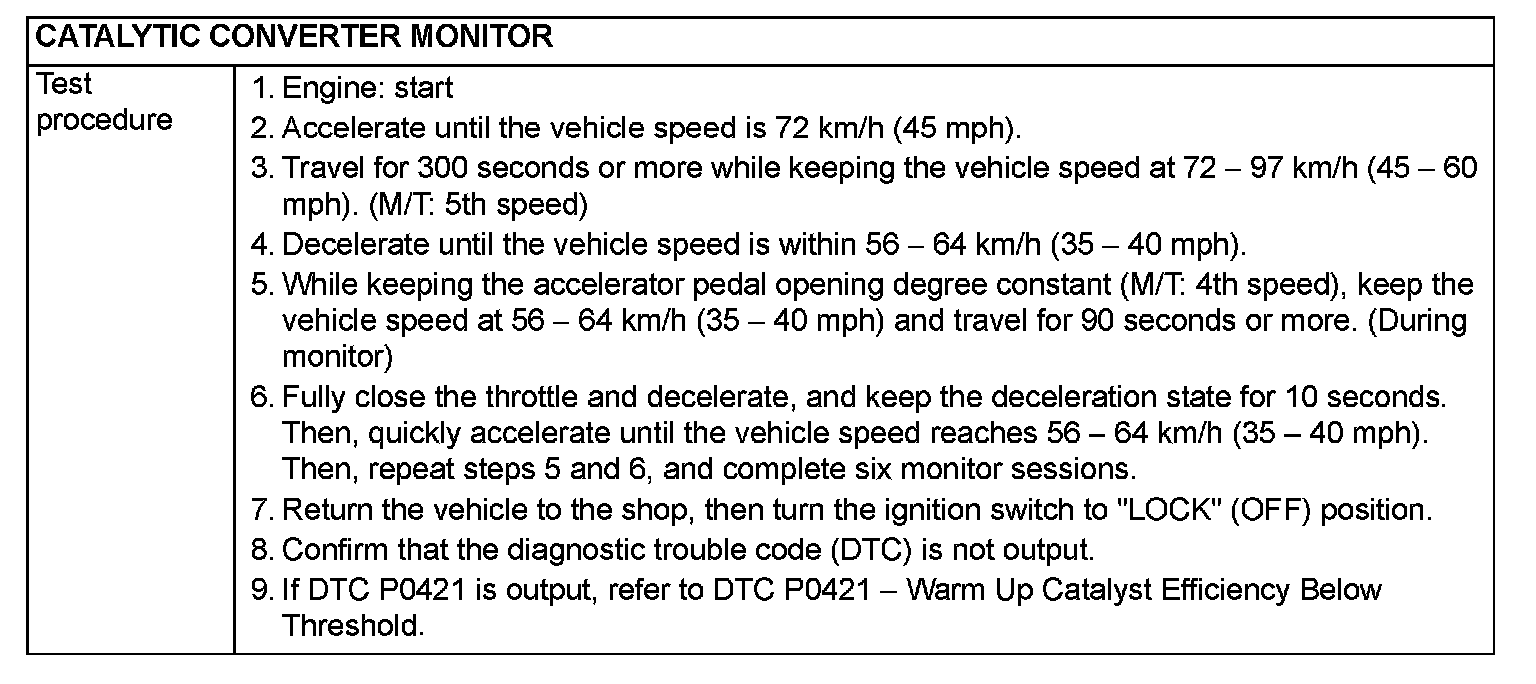

Catalytic Converter Monitor Part 1:




Catalytic Converter Monitor Part 2:

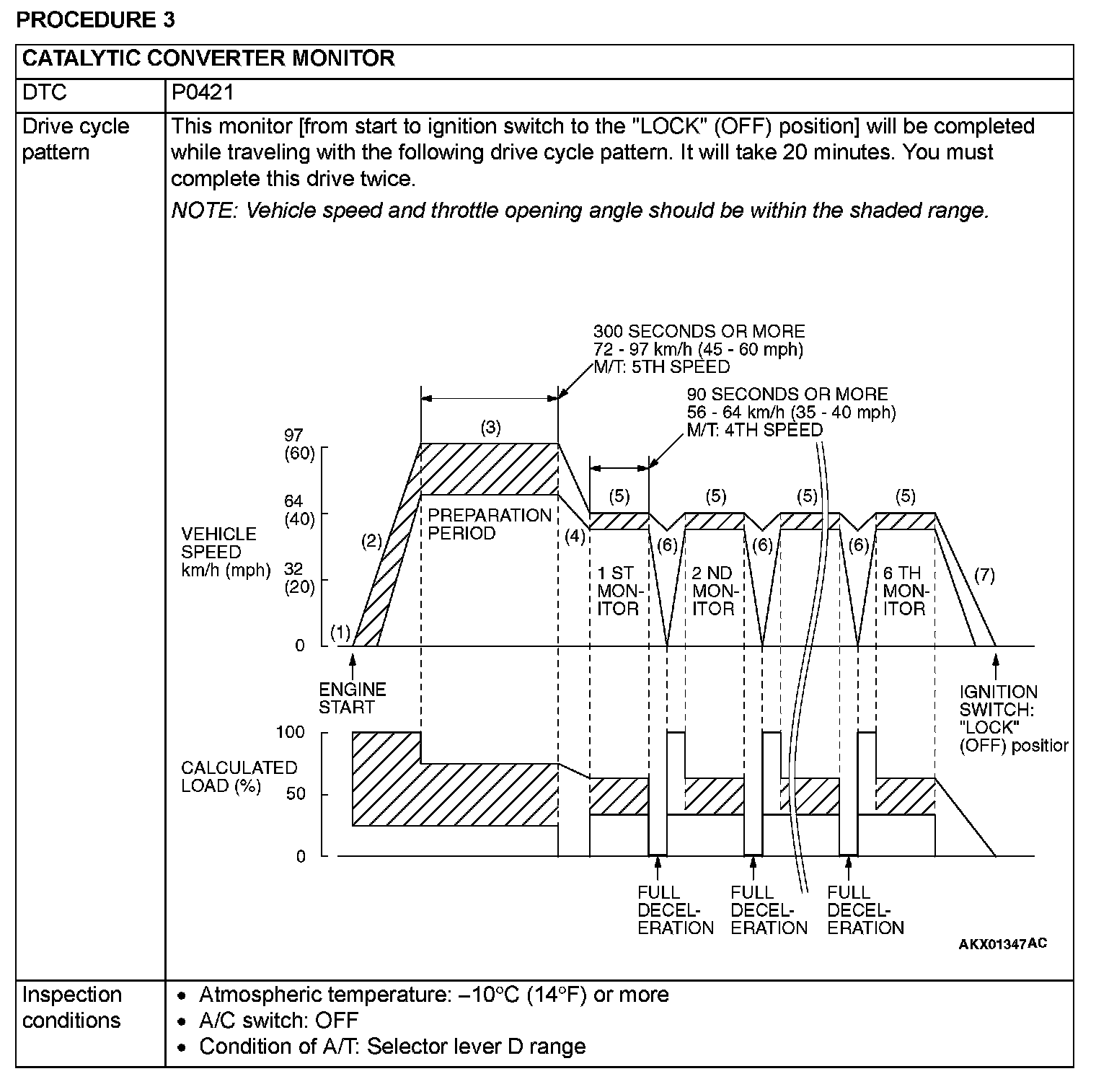

PROCEDURE 3

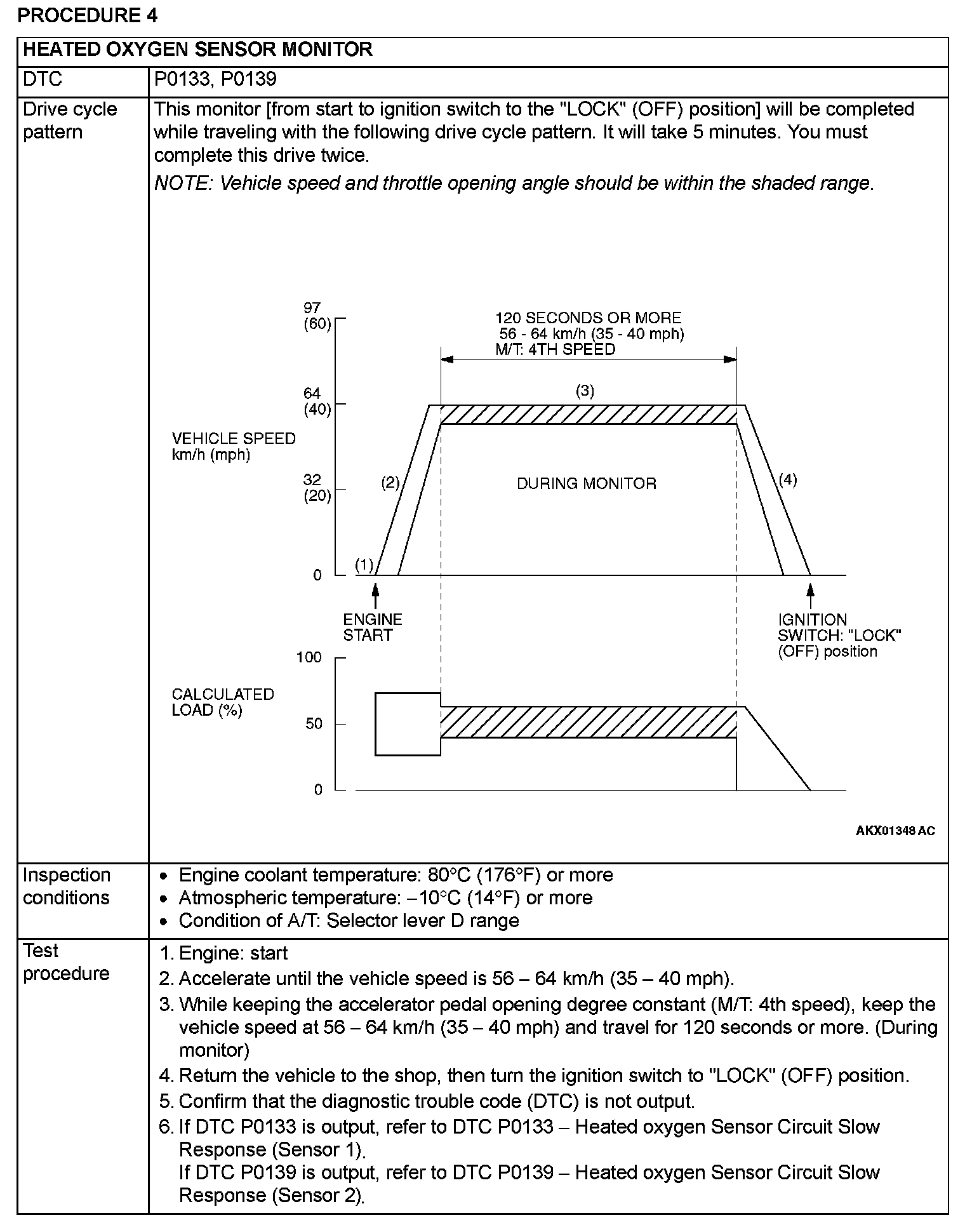

Heated Oxygen Sensor Monitor:




PROCEDURE 4

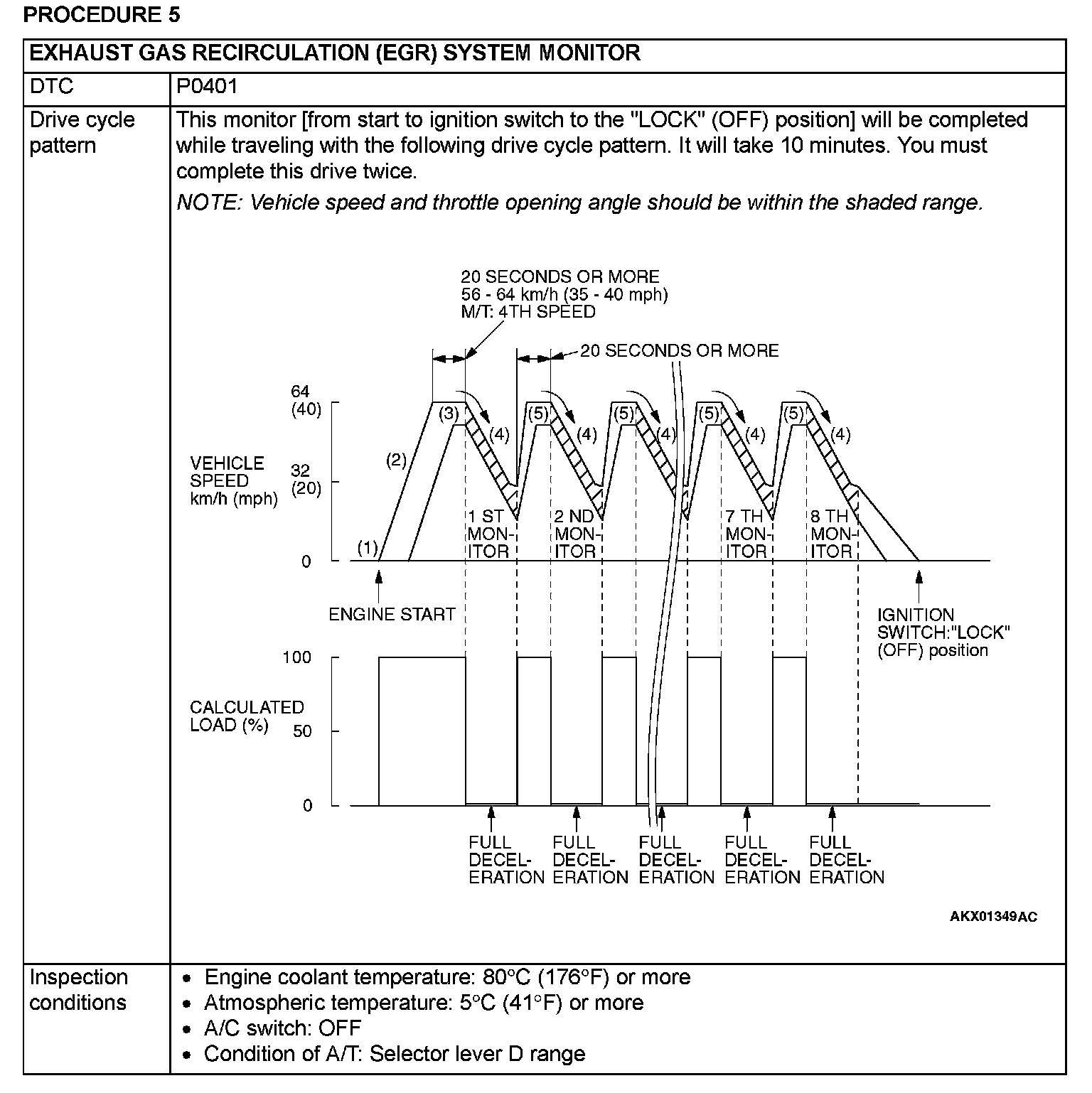

Exhaust Gas Recirculation (EGR) System Monitor Part 1:




Exhaust Gas Recirculation (EGR) System Monitor Part 2:

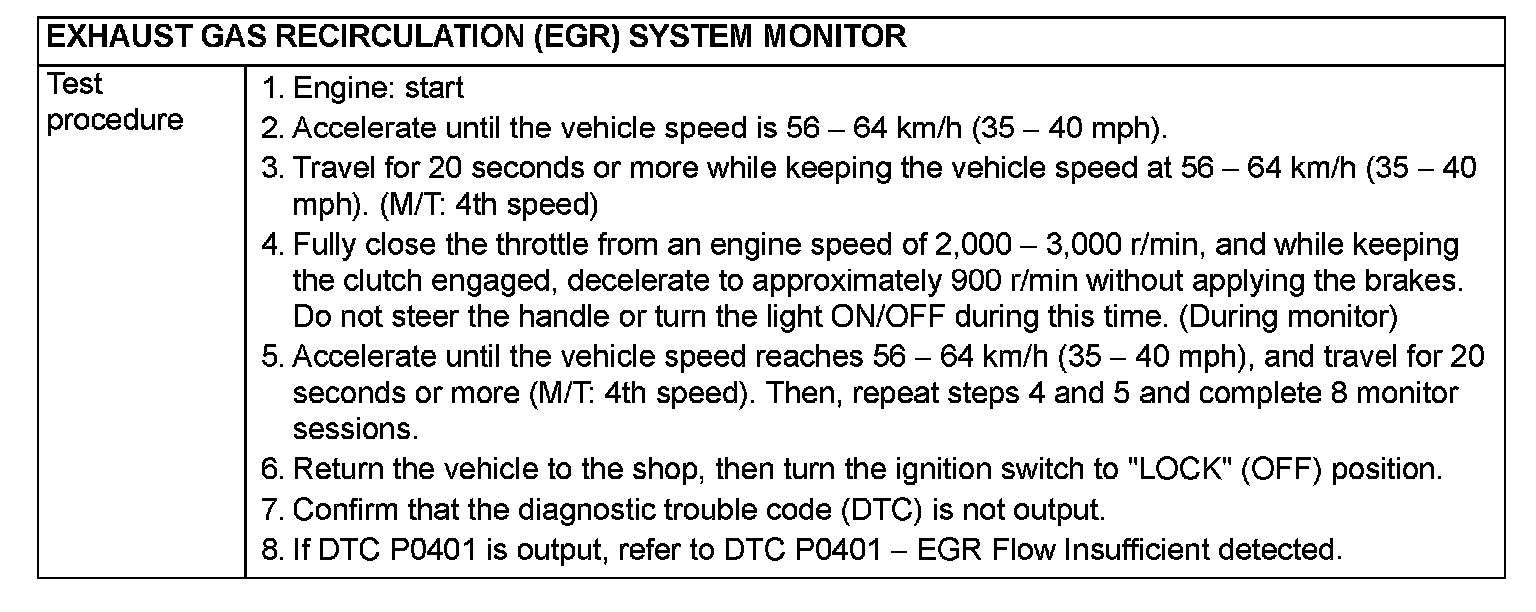

PROCEDURE 5

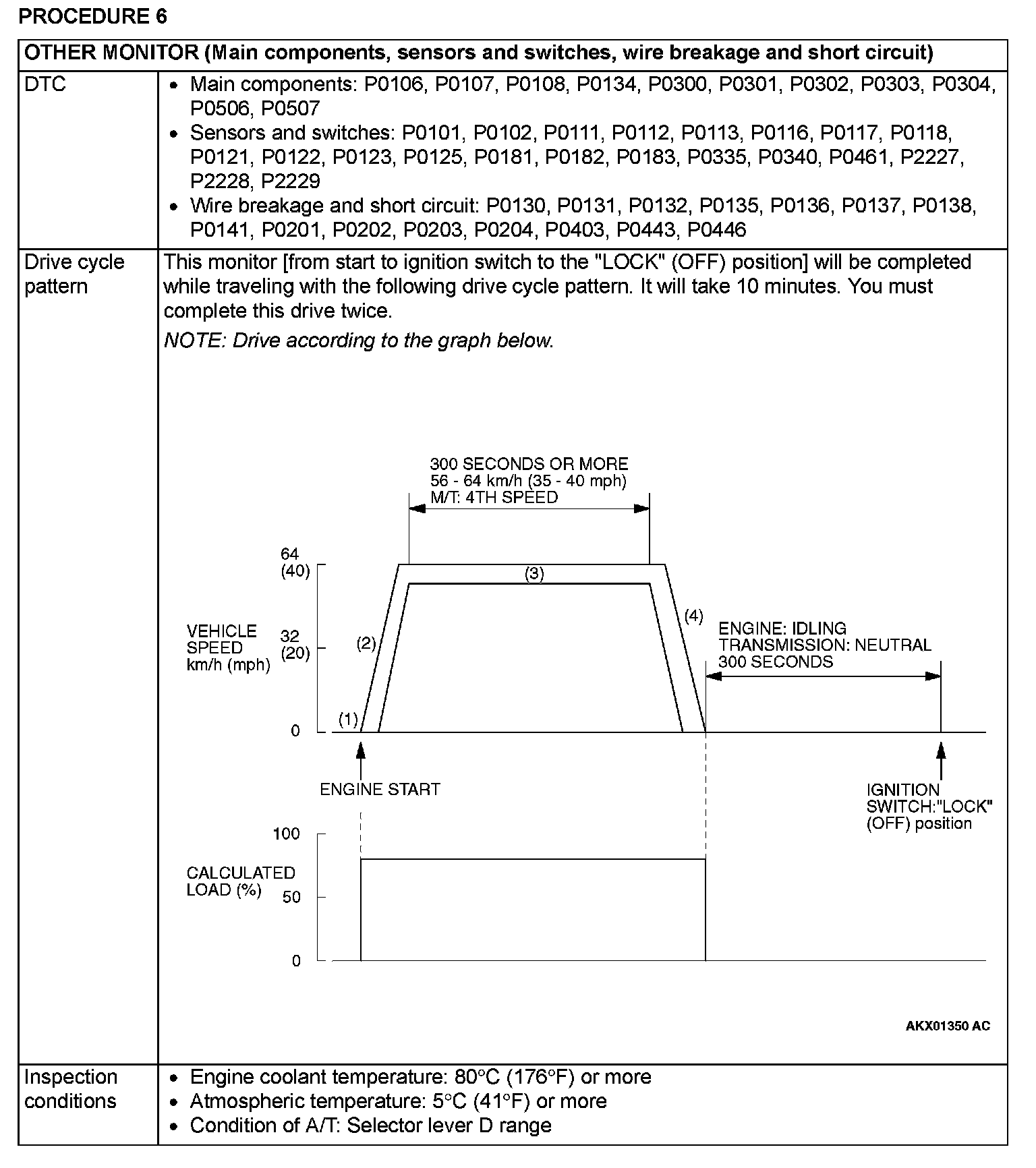

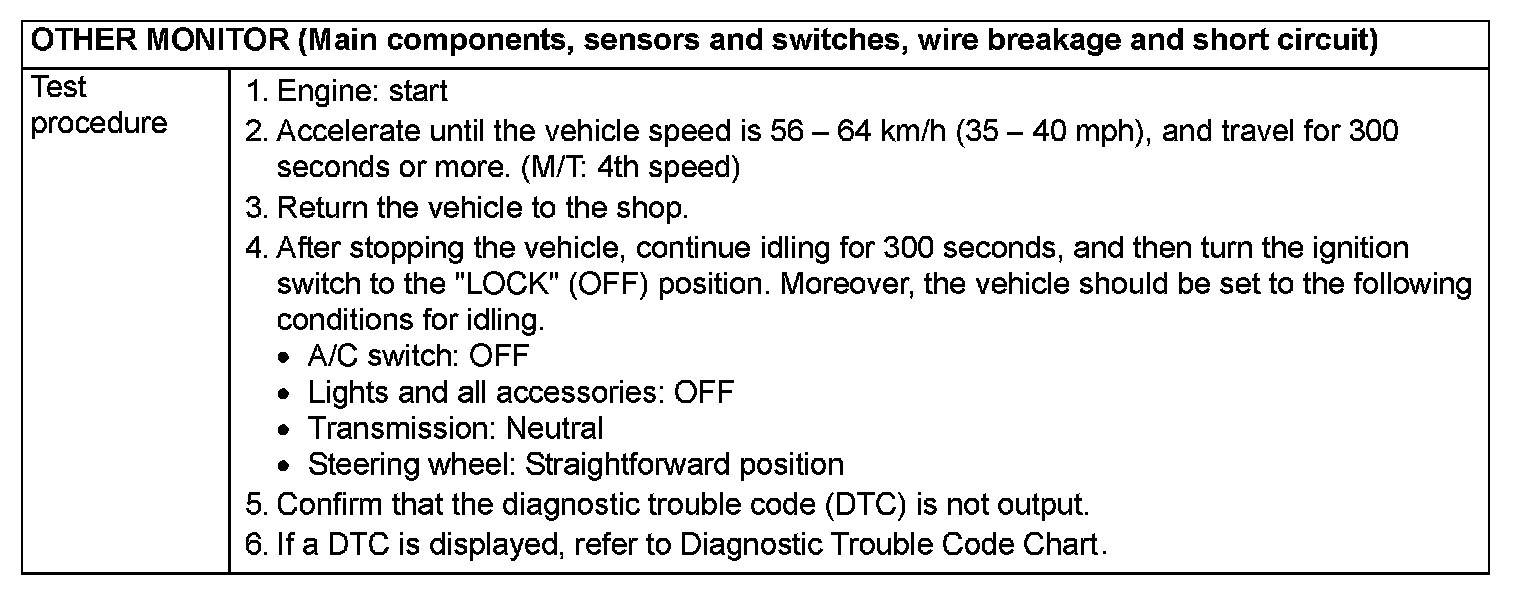

Other Monitor Part 1:




Other Monitor Part 2:




PROCEDURE 6
