Sebring Coupe L4-2.4L VIN G
>>
Repair and Diagnosis
>>
Locations
>>

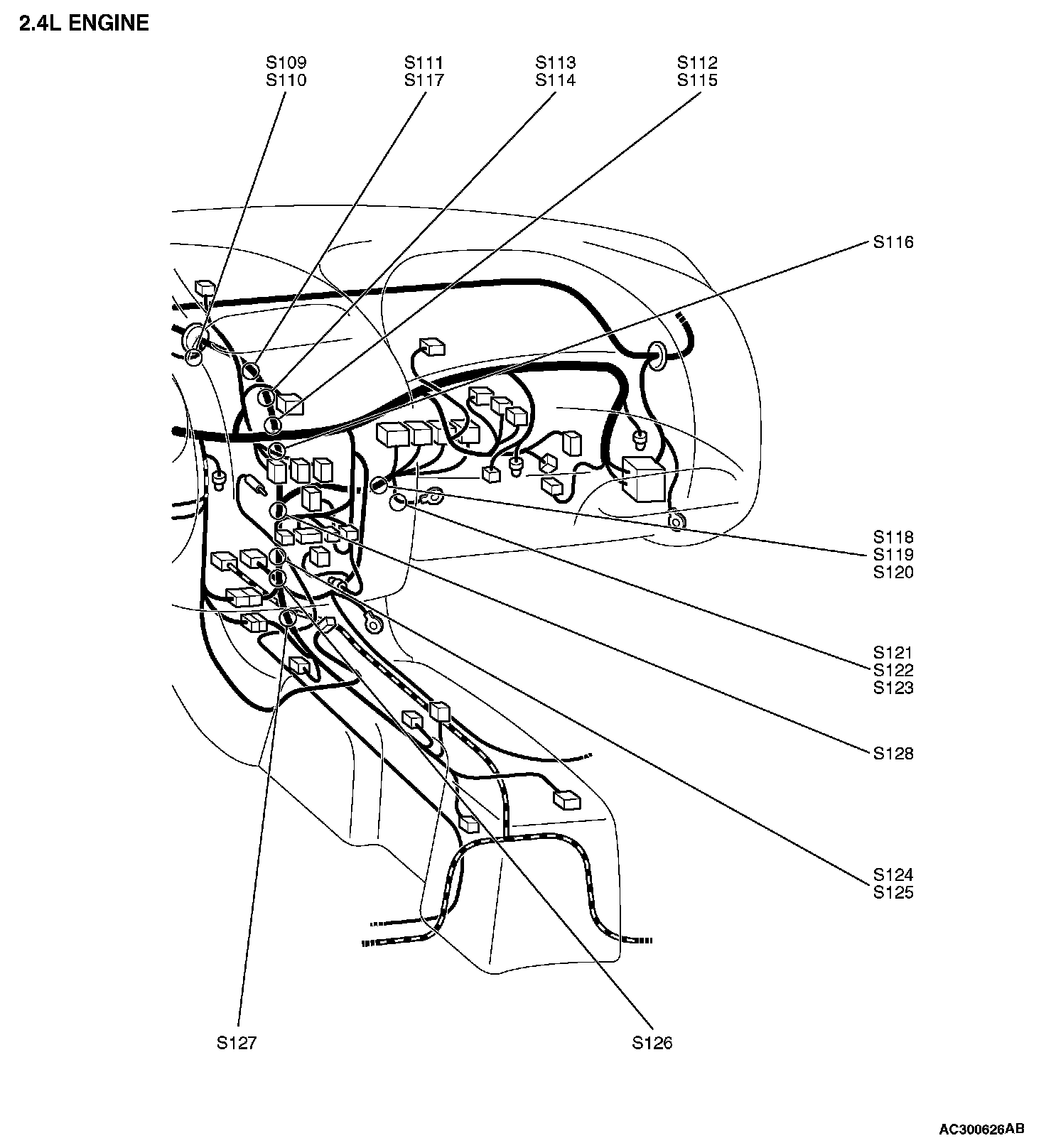

Splice Locations
>>
Dash Panel
Dash Panel
S050 - S170:
S060-S085:
S109 - S127:
