B Connector - Engine and Transaxle

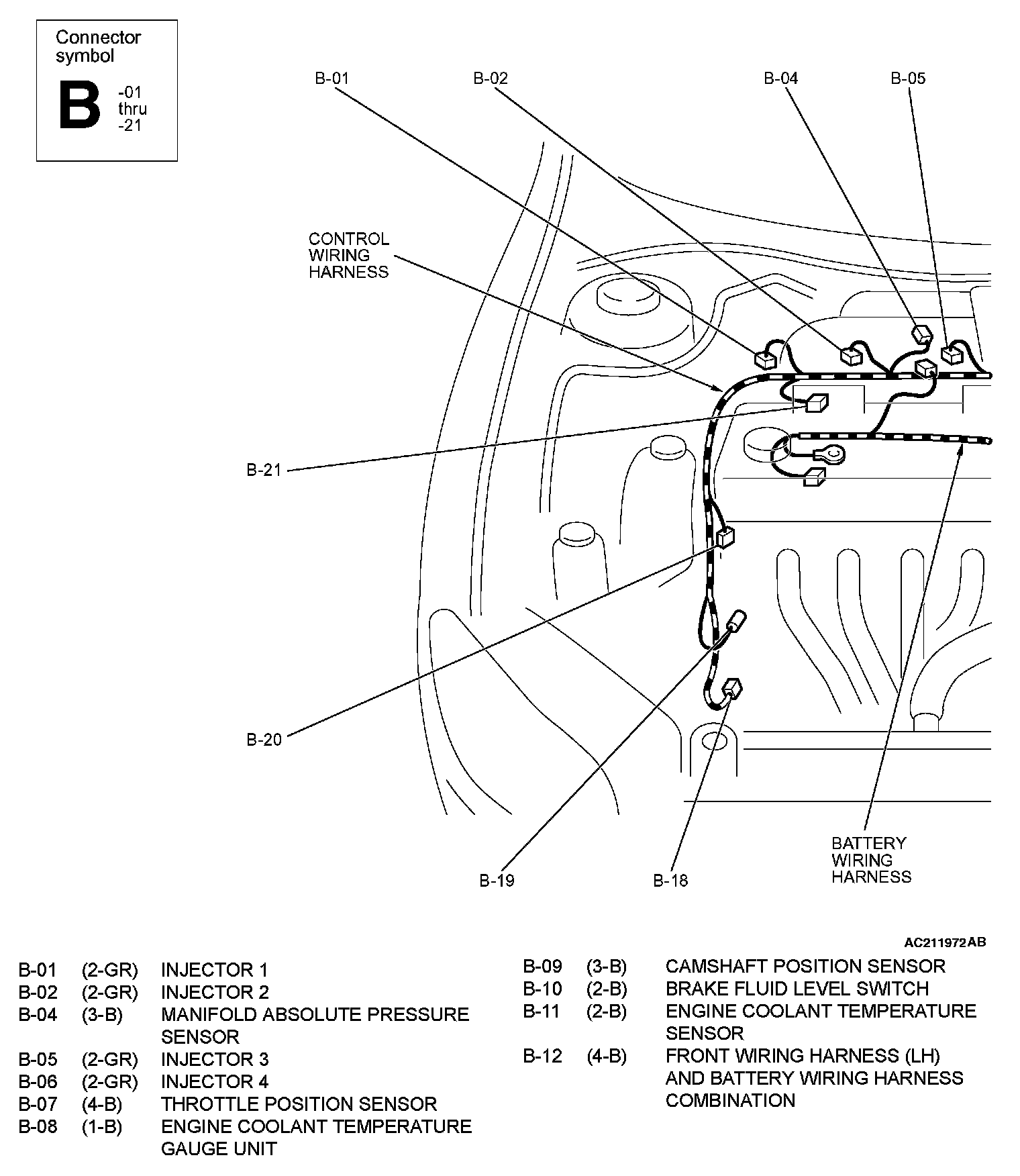

Engine And Transaxle <2.4L Engine> - B Connector [ 01(2-GR) Thru 12(4-B) ]:

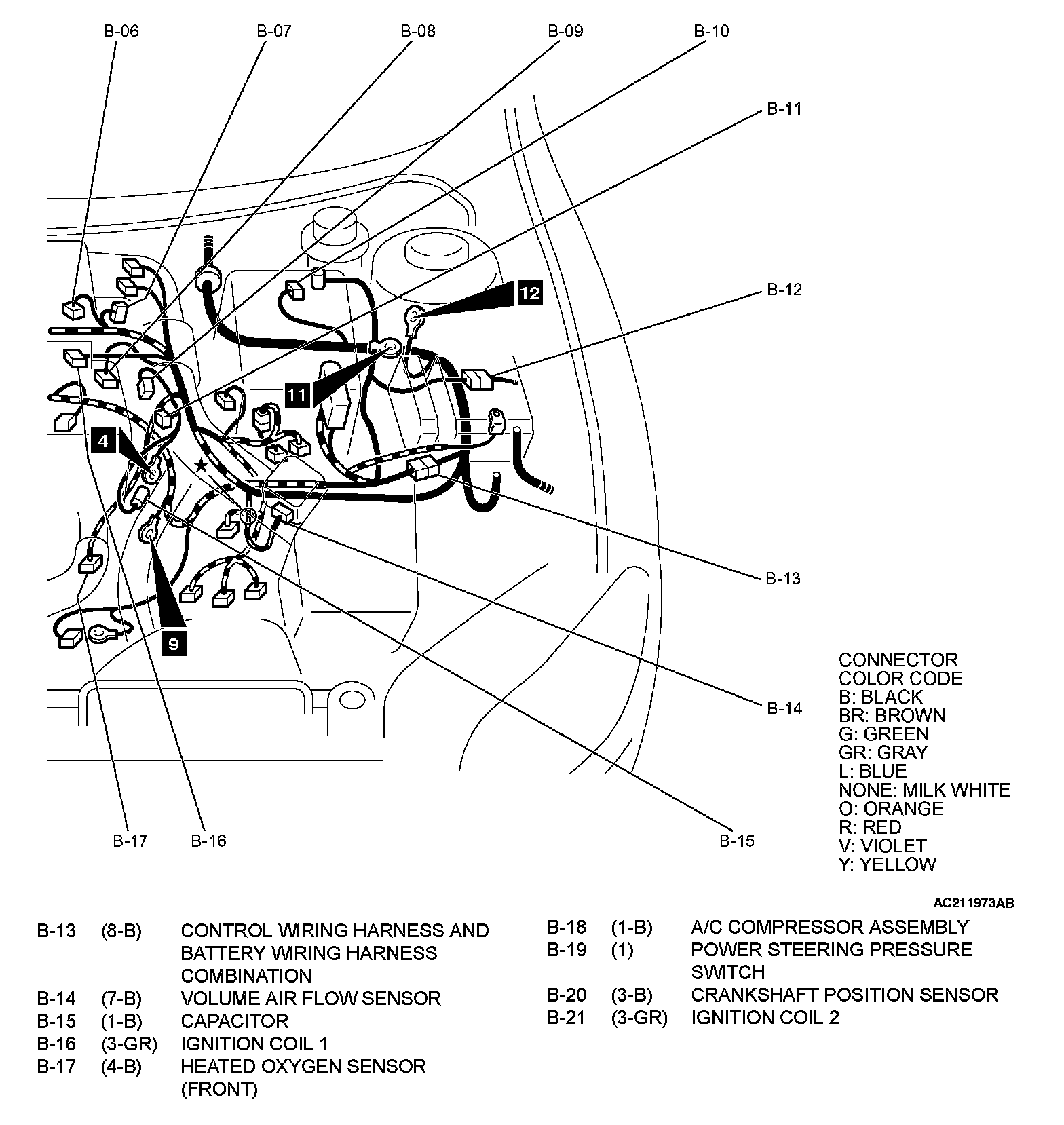

Engine And Transaxle <2.4L Engine> - B Connector [ 13(8-B) Thru 21(3-GR) ]:

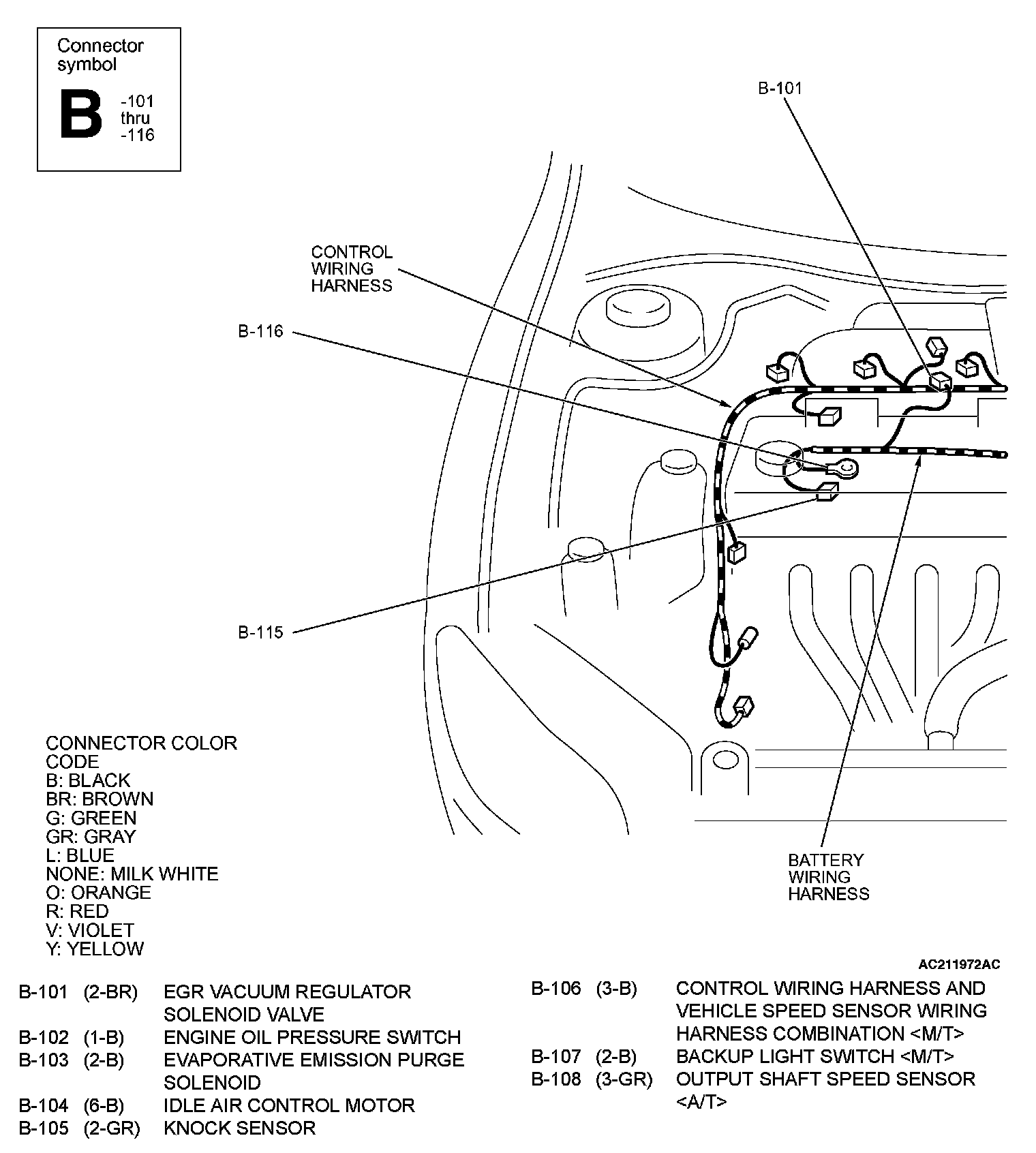

Engine And Transaxle <2.4L Engine> - B Connector [ 101(2-BR) Thru 108(3-GR) ]:

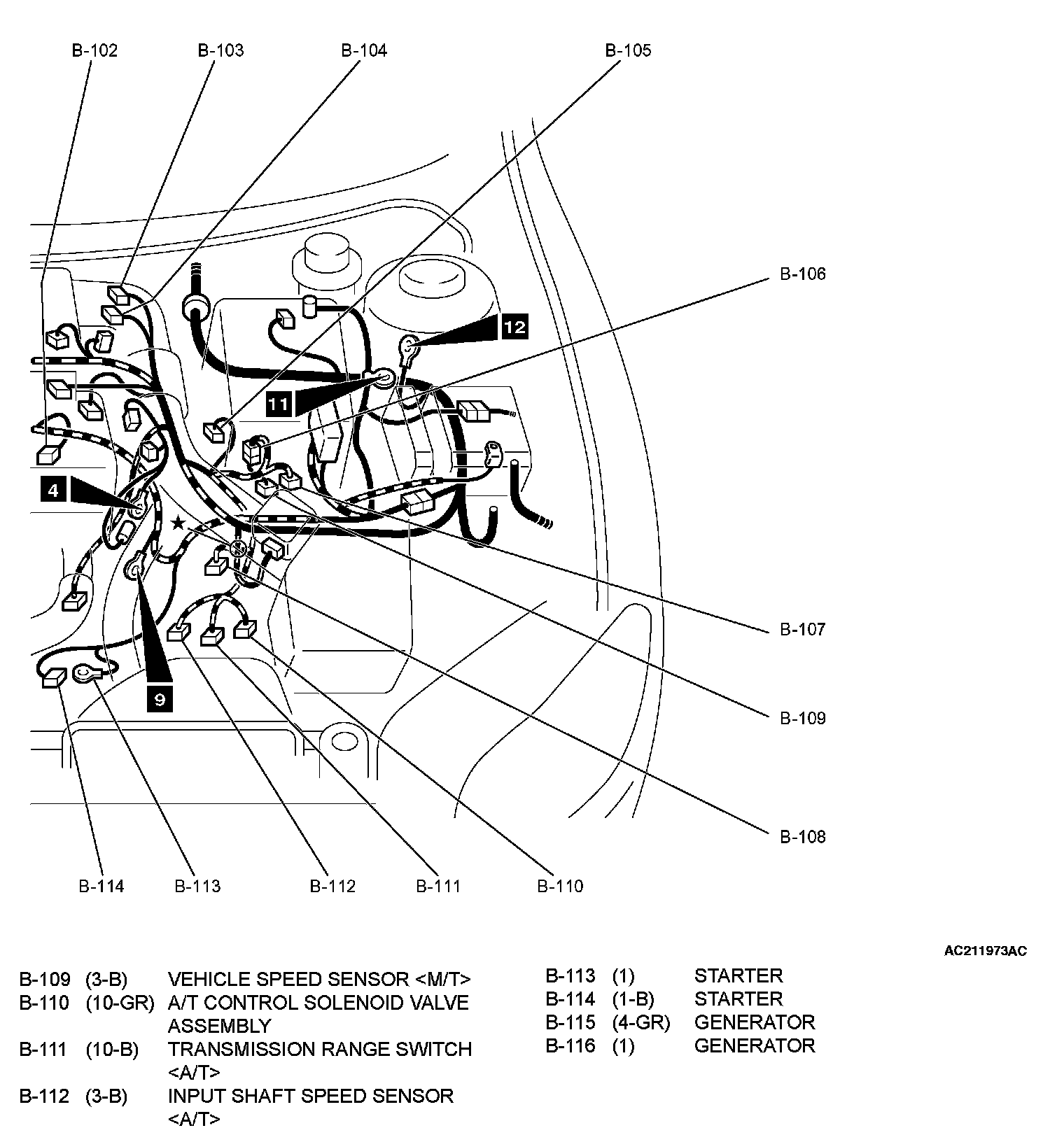

Engine And Transaxle <2.4L Engine> - B Connector [ 109(3-B) Thru 116(1) ]:
