Fluid Level Check

STANDARD PROCEDURE - FLUID LEVEL CHECK

NOTE: The fluid required in this transaxle is Mopar ATF +4. Use of substitute fluids may result in improper transaxle operation and/or failure.

1. Raise vehicle on hoist.

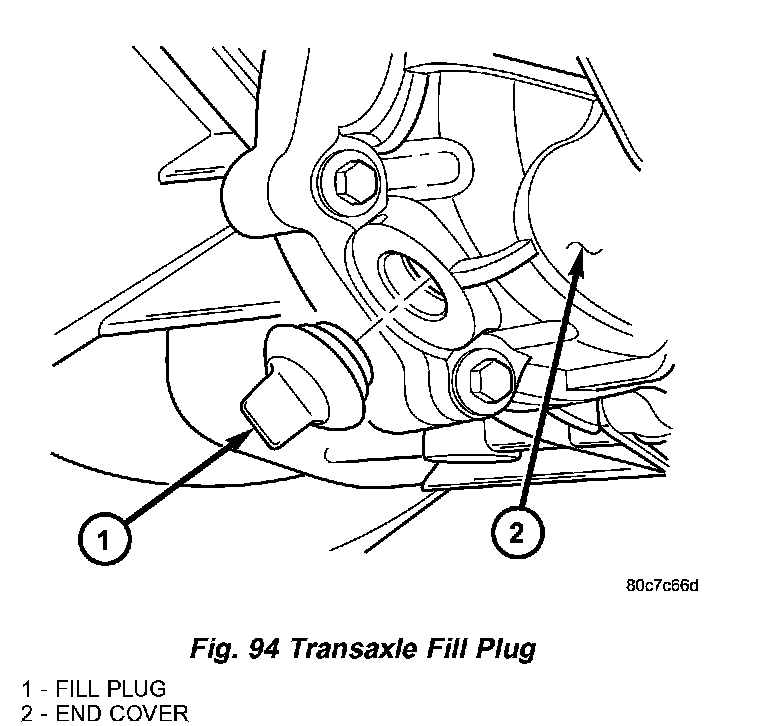

2. Remove transaxle fill plug (Fig. 94).
3. Inspect fluid level. Fluid should be within 3/16" below fill hole. Add Mopar ATF +4 as necessary.
4. Install fill plug, ensuring it is properly seated.
5. Lower vehicle.
