Fluid Drain and Fill

STANDARD PROCEDURE - FLUID DRAIN AND FILL

NOTE: The fluid required in this transaxle is Mopar ATF +4. Use of substitute fluids may result in improper transaxle operation and/or failure.

FLUID DRAIN
1. Raise vehicle on hoist.

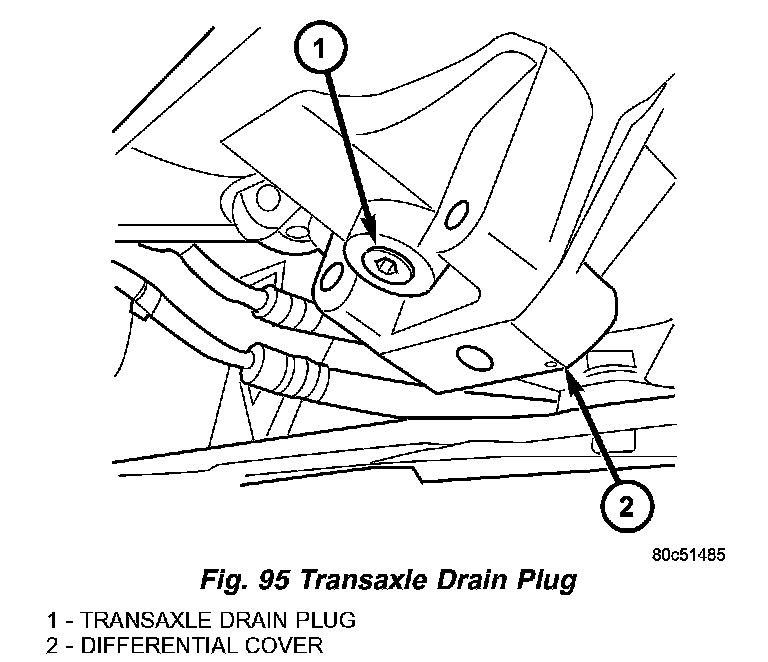

2. Remove transaxle drain plug (Fig. 95) and drain fluid into suitable container.
3. Install drain plug and torque to 23 Nm (17 ft. lbs.).

FLUID FILL

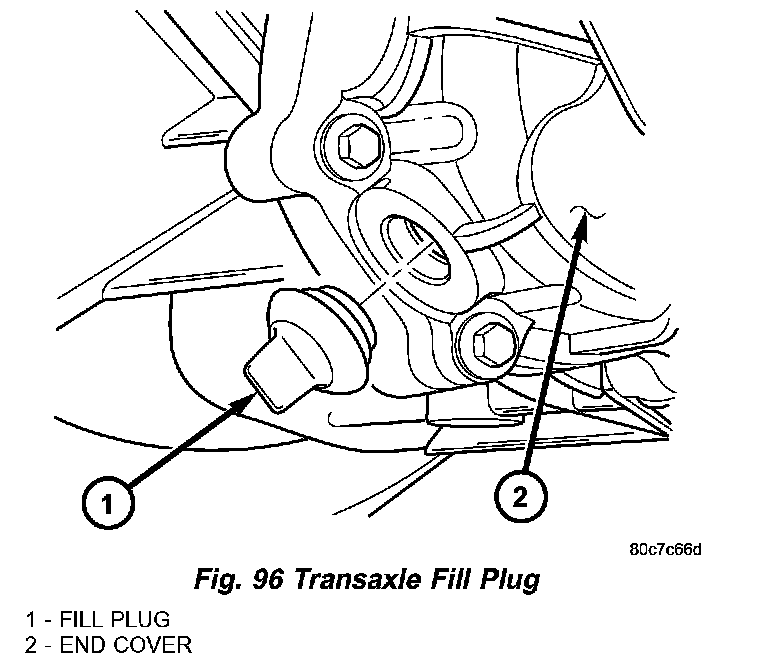

1. Remove transaxle fill plug (Fig. 96).
2. Add 2.4 - 2.7L (2.5 - 2.9 qts.) of Mopar ATF +4 until fluid is within 3/16" below fill hole.
3. Install fill plug, ensuring it is properly seated.
4. Lower vehicle.
