Fluid Level Check

STANDARD PROCEDURE - FLUID LEVEL CHECK
The fluid required in this transaxle is Mopar ATF +4 (Automatic Transmission Fluid-Type 9602). Use of substitute fluids may result in improper transaxle operation and/or failure.

1. Raise vehicle on hoist.

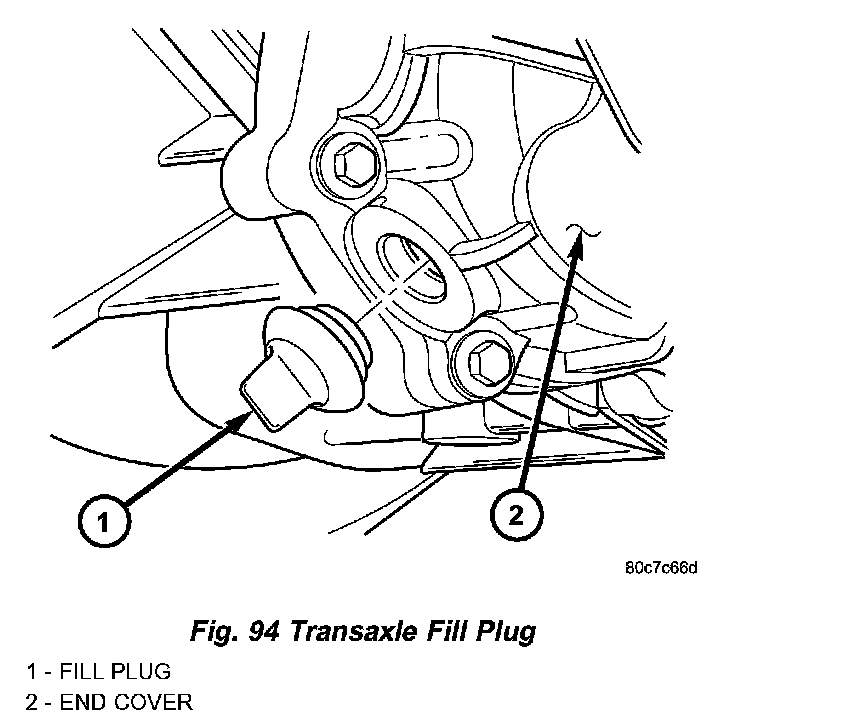

2. Remove transaxle fill plug (Fig 94).
3. Inspect fluid level. Fluid should be within 1/8" below fill hole. Add Mopar ATF +4 (Automatic Transmission Fluid - Type 9602) as necessary.
4. Install fill plug, ensuring it is properly seated.
5. Lower vehicle.
