Removal and Installation

REMOVAL
1. Remove differential assembly from gear case using the procedure outlined.

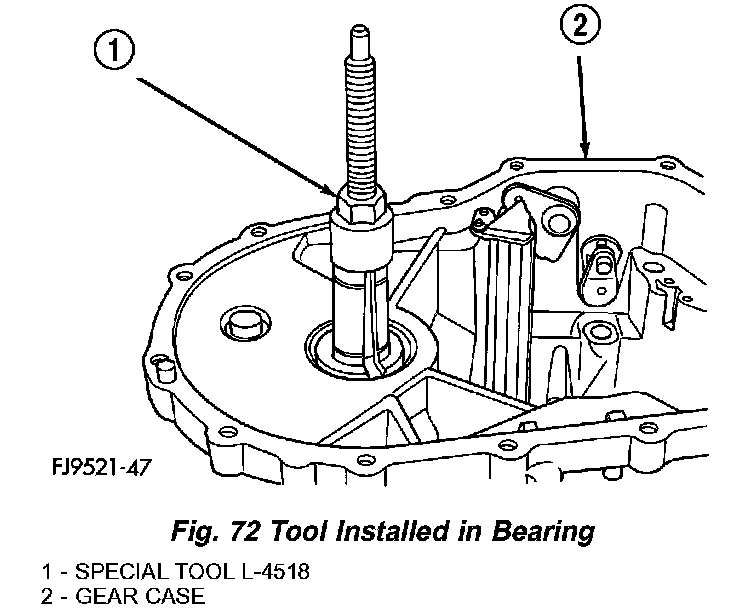

2. Install Miller tool # L-4518 into the differential bearing cup (Fig. 72).

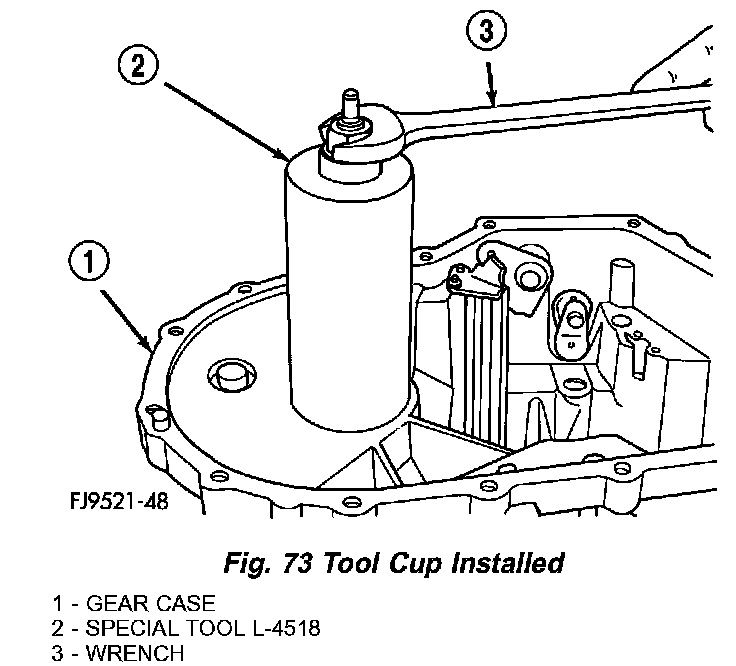

3. Install the tool cup over the tool (Fig. 73).
4. Tighten the tool until the race is removed from the case.

INSTALLATION
1. Position the bearing cup into the case.
2. Install the bearing cup onto Miller tool # L-4520.
3. Using Miller tool # L-4520 and C-4171 driver, install differential bearing cup into the transaxle case.
