Fluid Diagrams

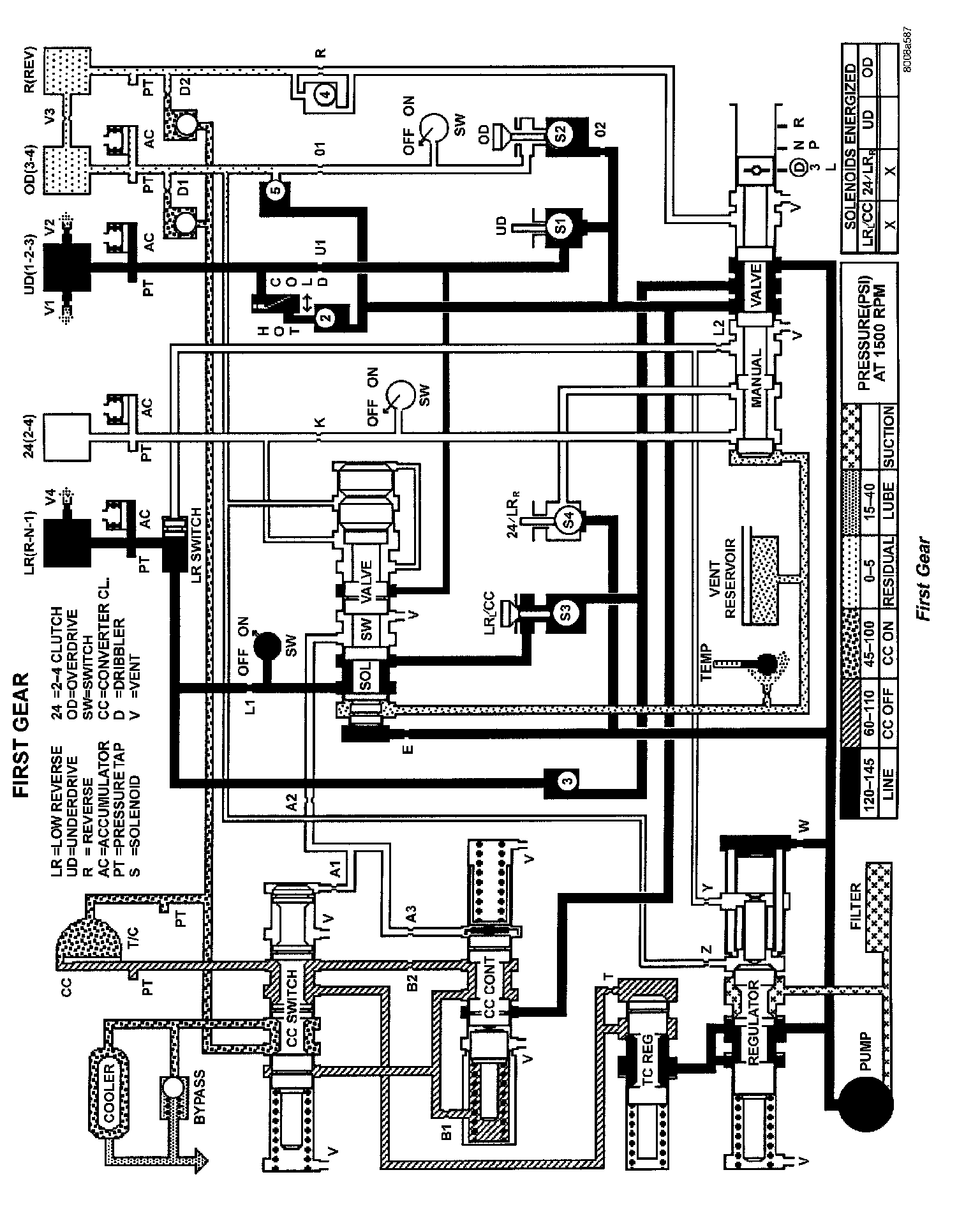

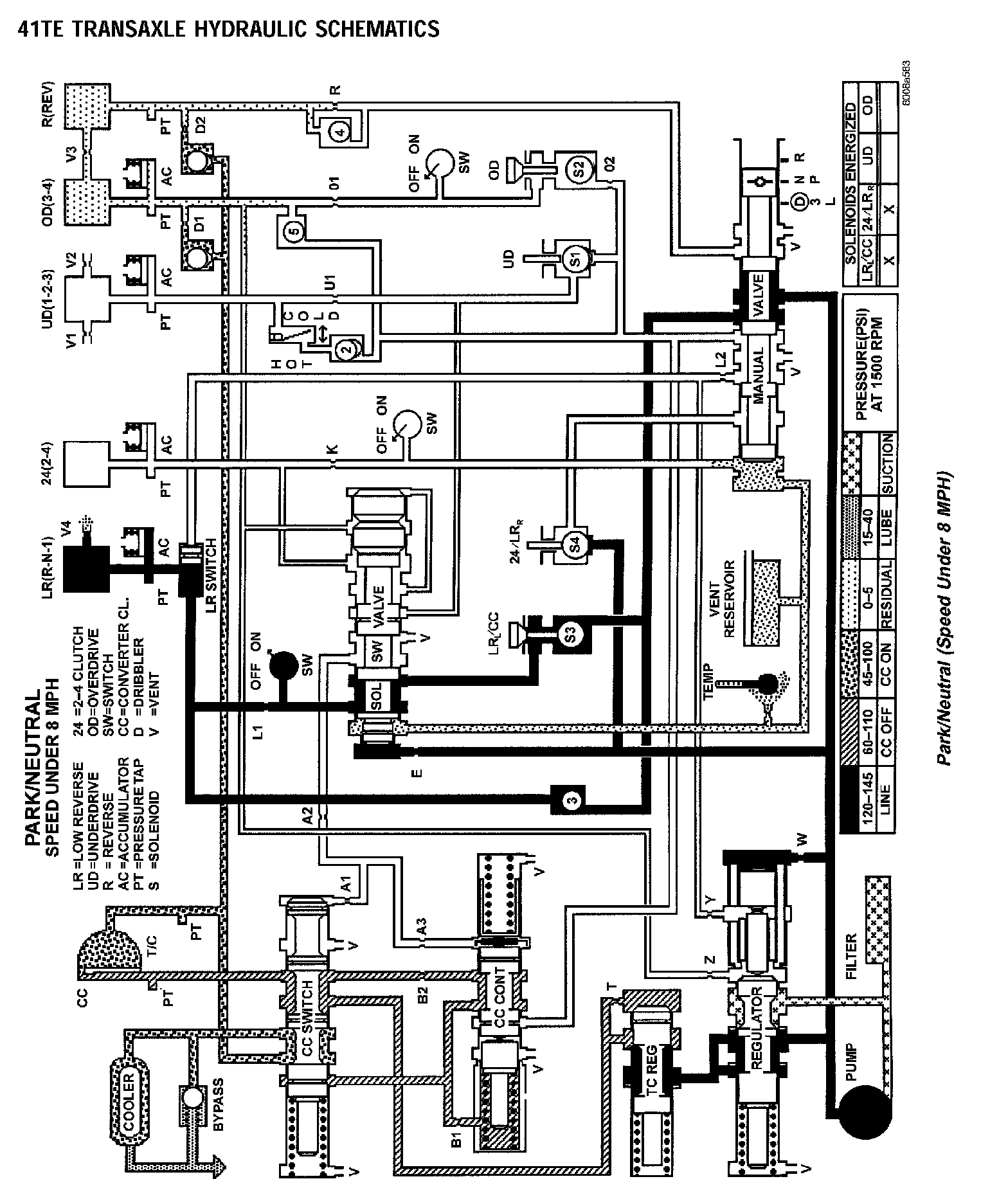

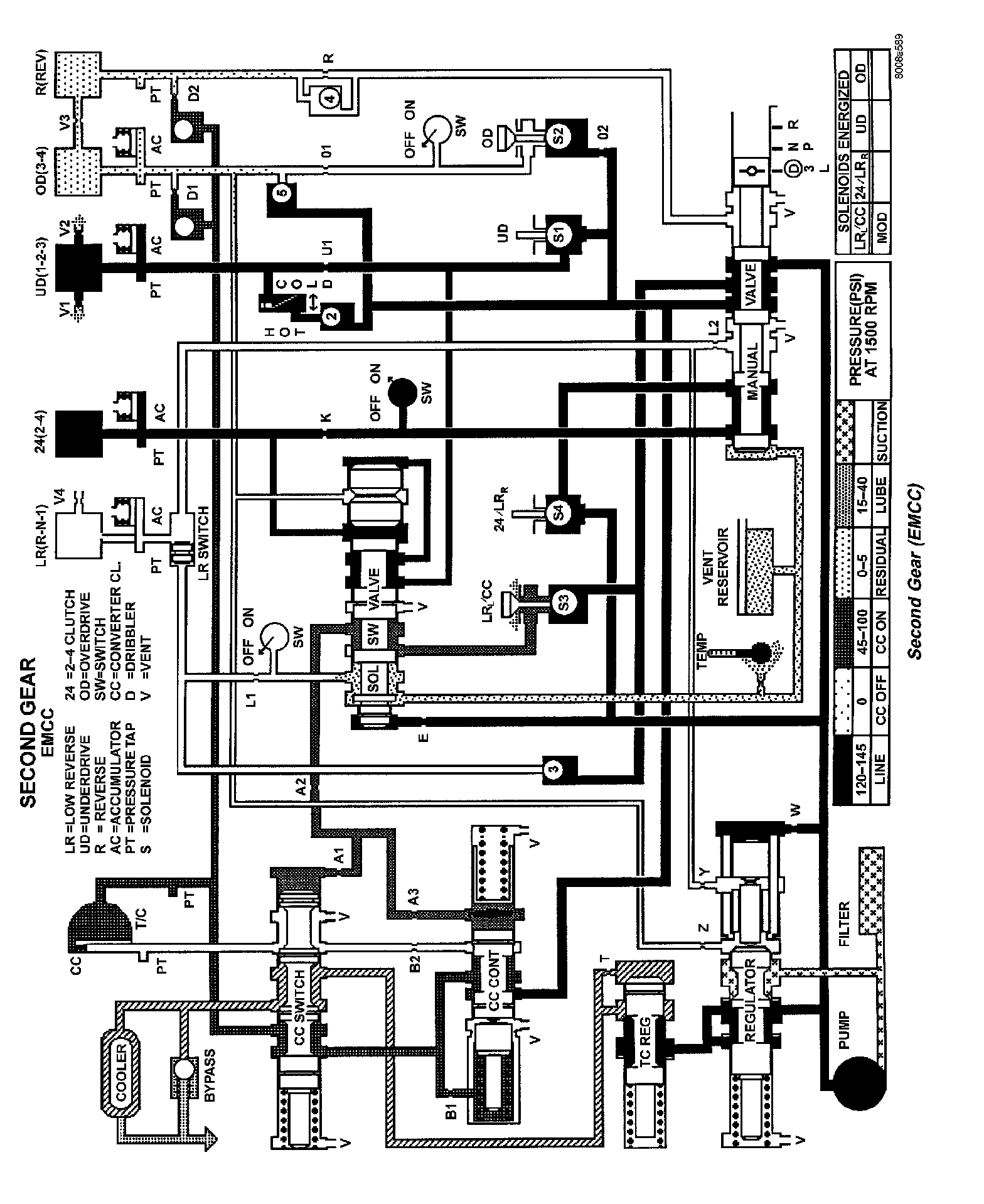

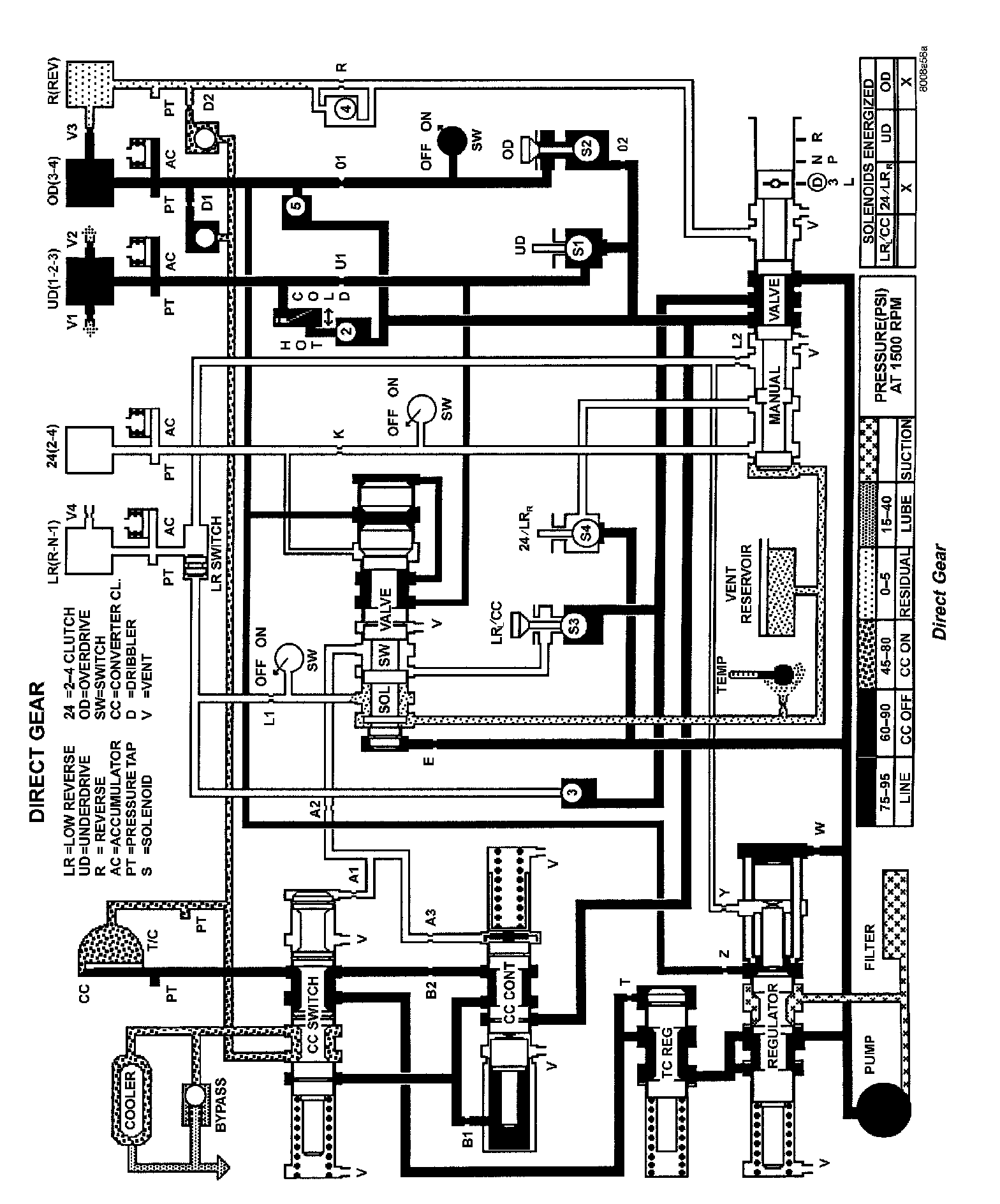

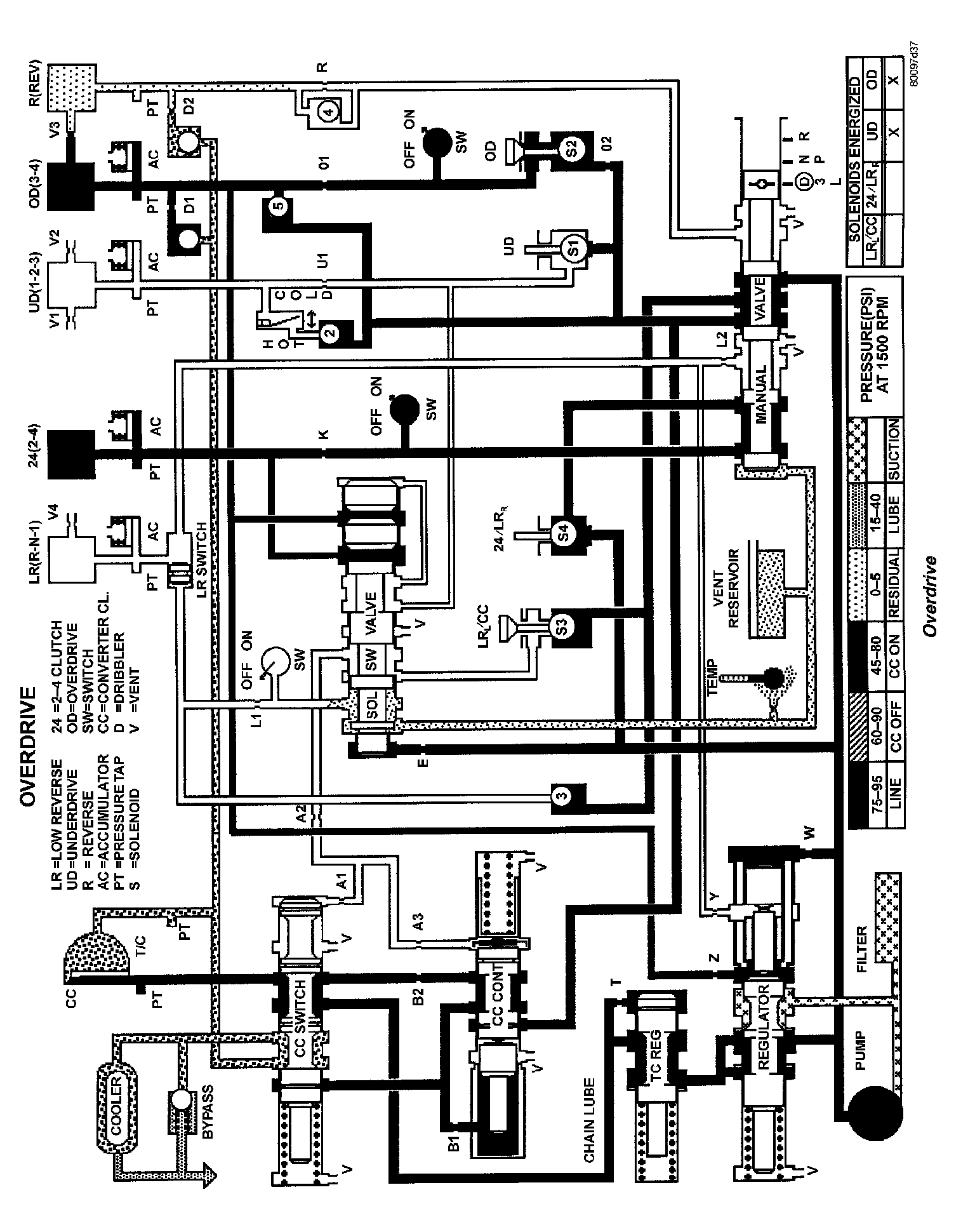

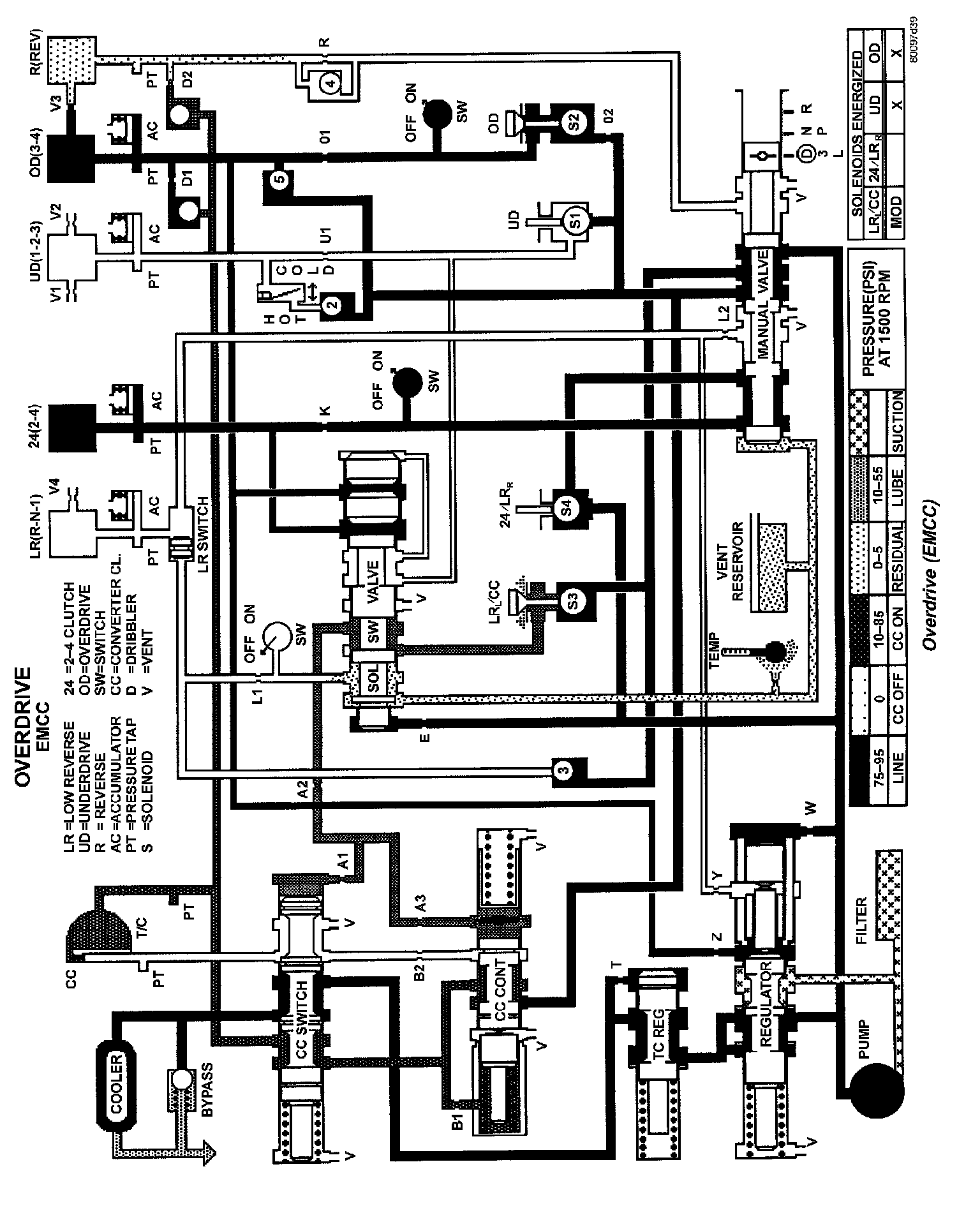

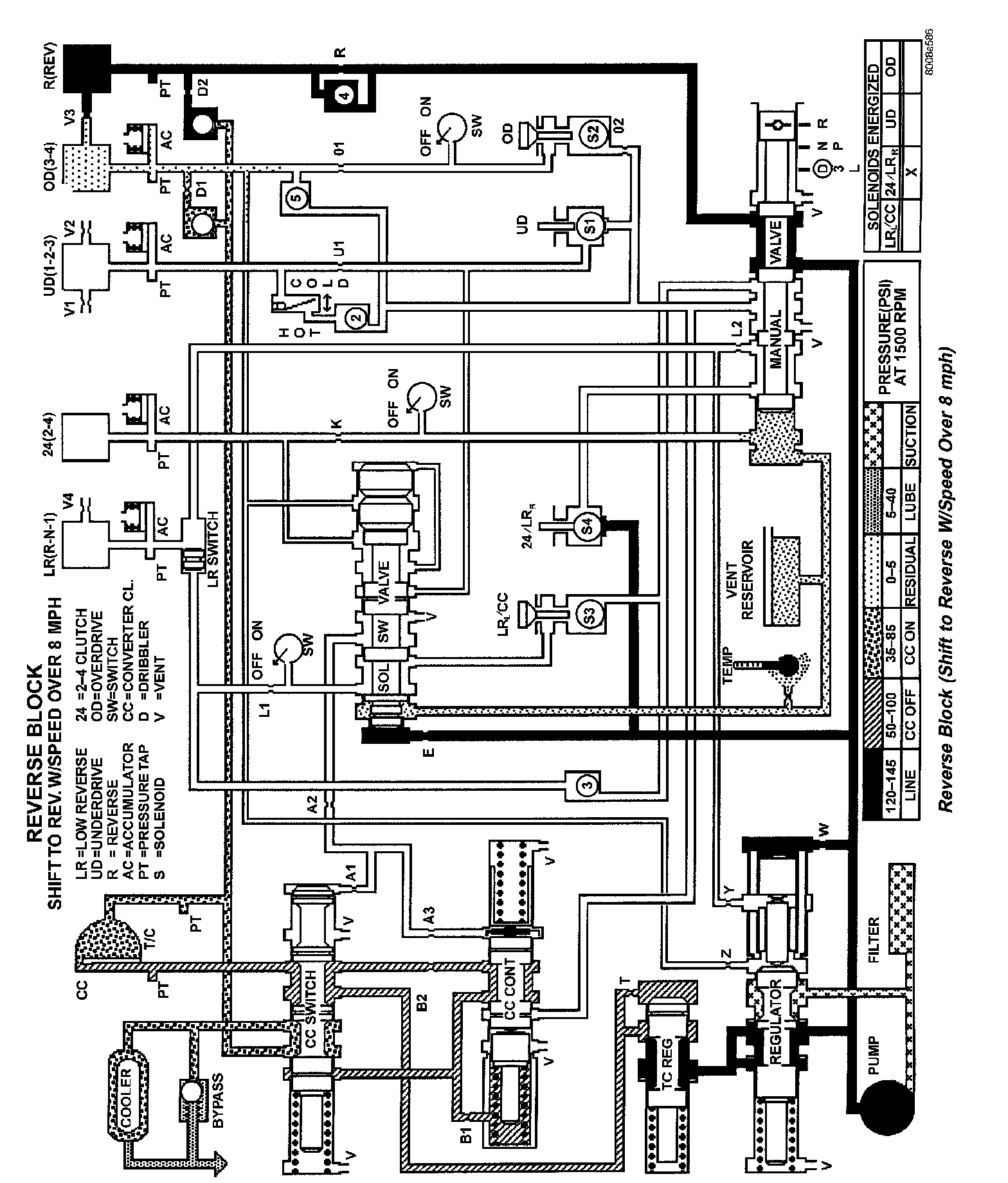

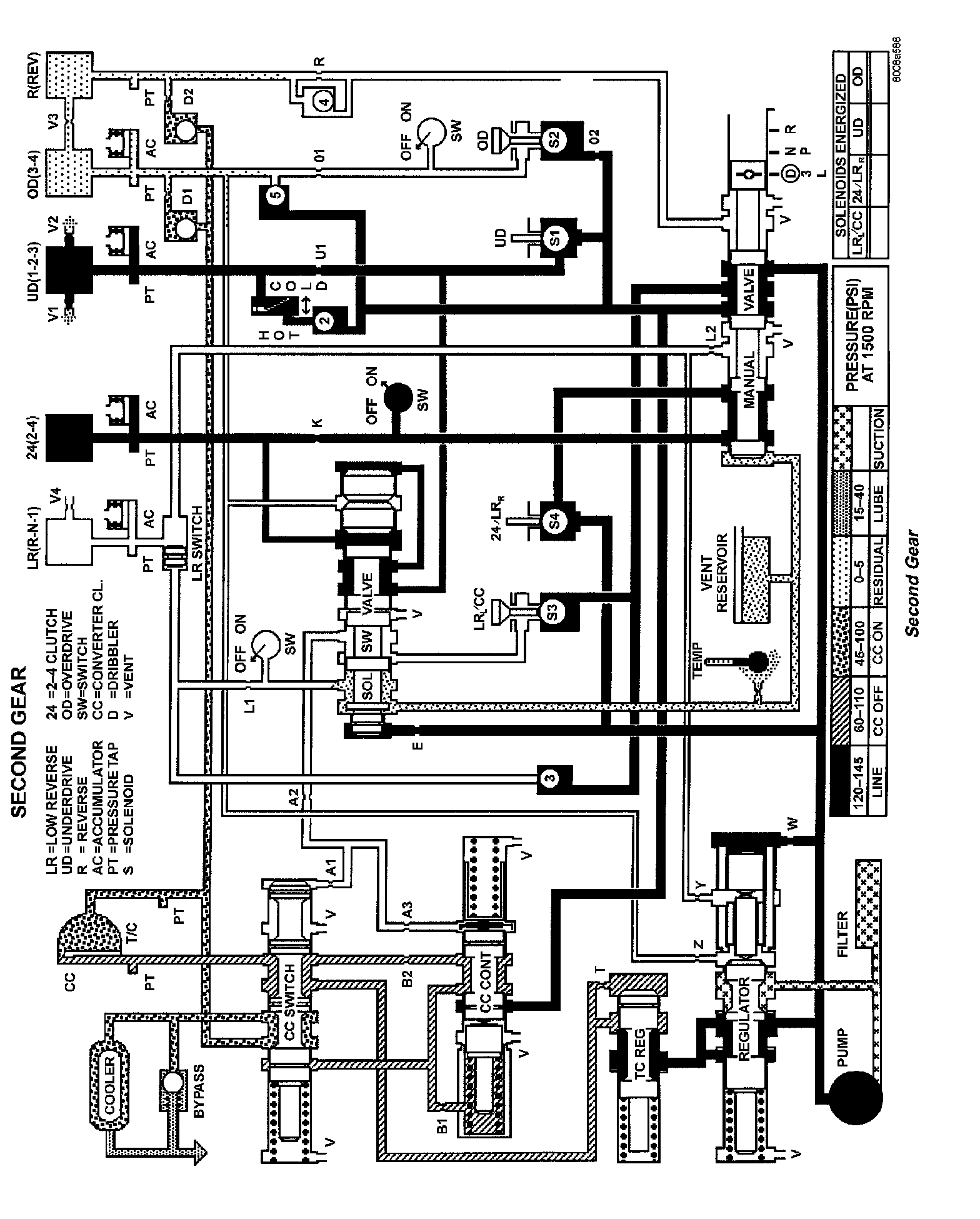

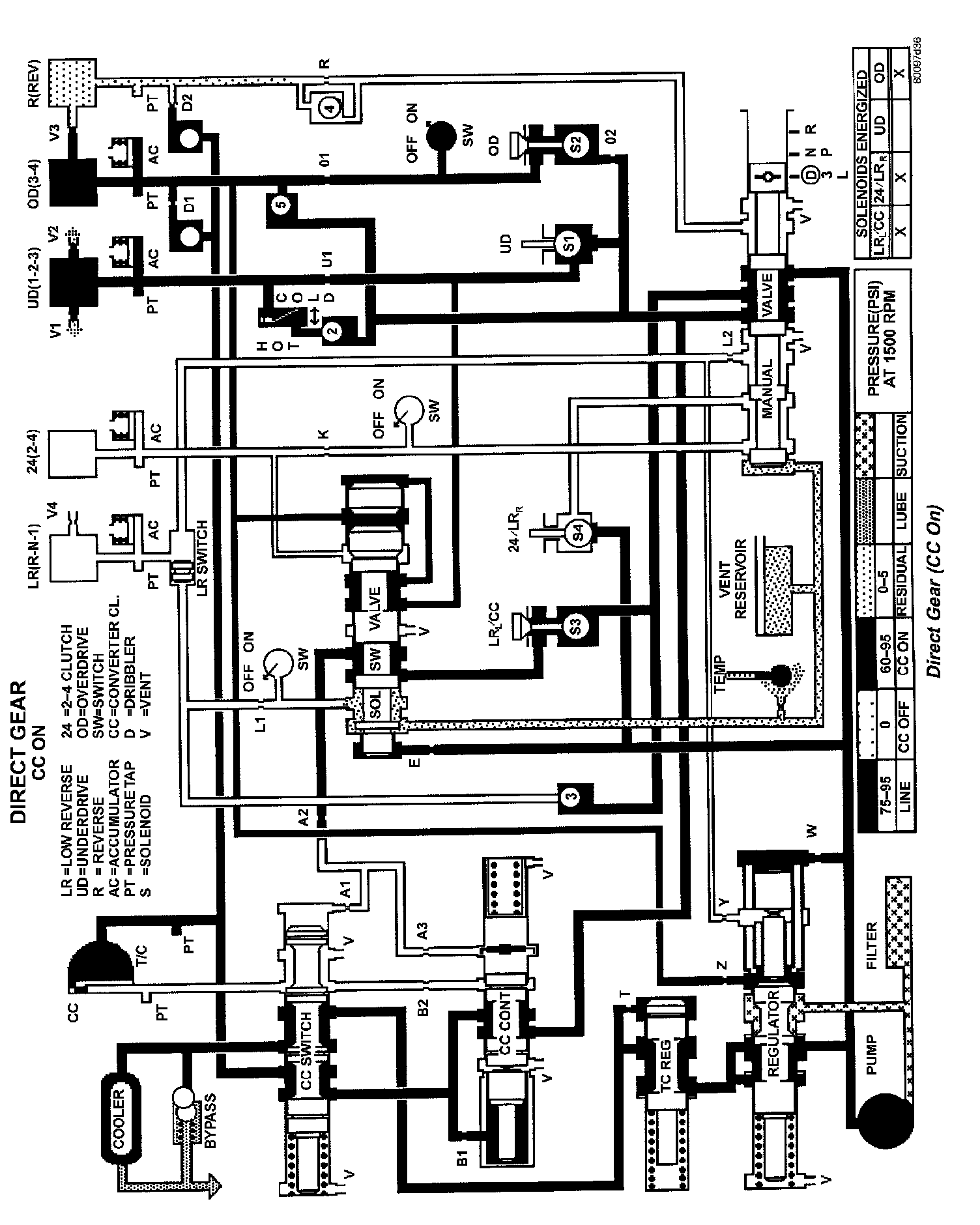

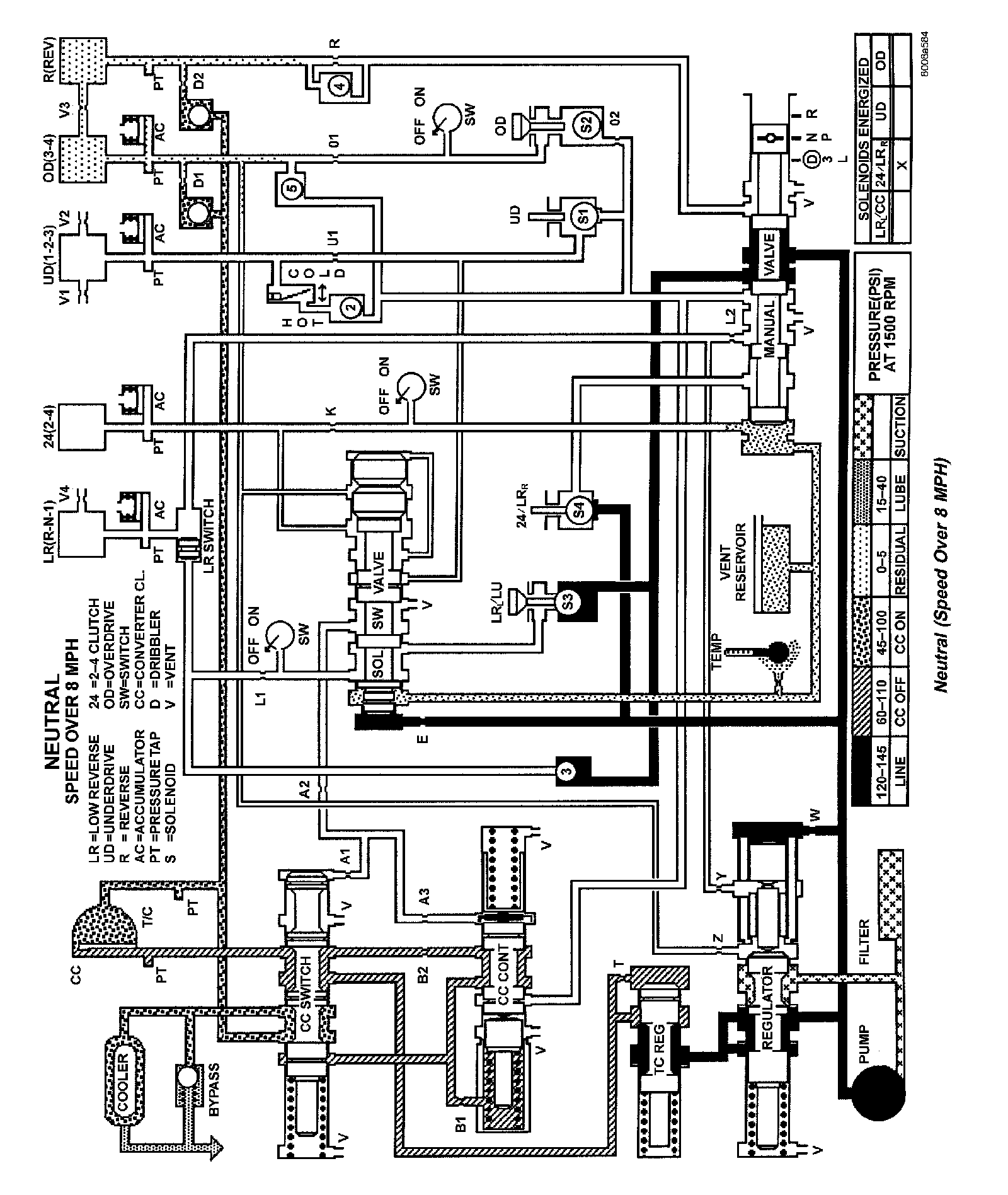

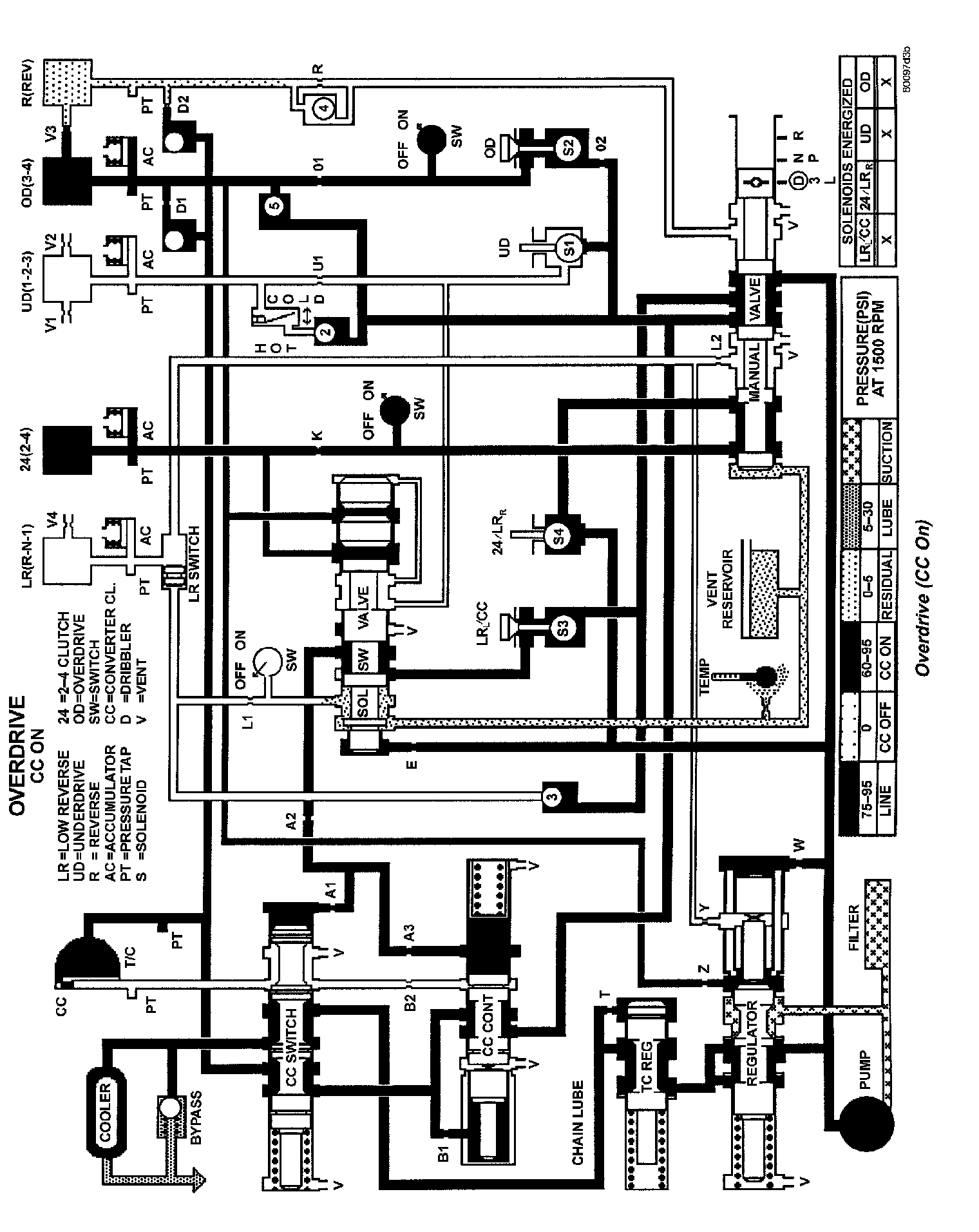

41TE TRANSAXLE HYDRAULIC SCHEMATICS





1 of 12





2 of 12





3 of 12





4 of 12





5 of 12





6 of 12





7 of 12





8 of 12





9 of 12





10 of 12





11 of 12





12 of 12
