Front Suspension

DIAGNOSIS AND TESTING - SHOCK ASSEMBLY (FRONT)

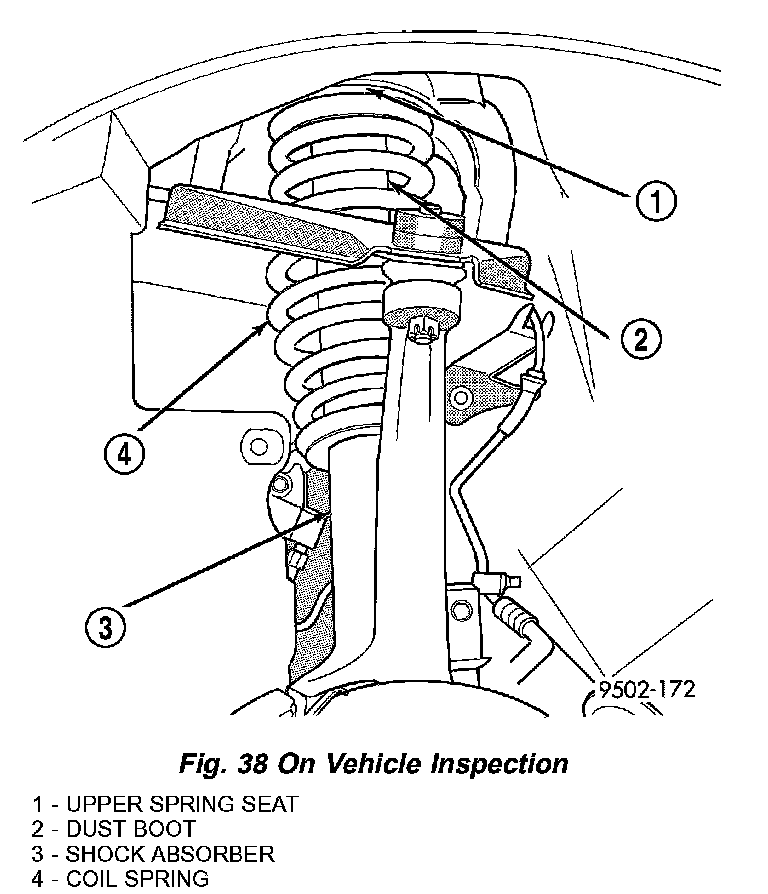

1. Inspect for damaged or broken coil springs (Fig. 38).
2. Inspect for torn or damaged shock absorber dust boots (Fig. 38).
3. Lift the dust boot and inspect the shock absorber for evidence of fluid running from the upper end of fluid reservoir. (Actual leakage will be a stream of fluid running down the side and dripping off the lower end of the shock absorber). A slight amount of seepage between the shock absorber rod and the seal is not unusual and does not affect performance of the shock absorber. Also inspect jounce bumpers for signs of damage or deterioration (Fig. 38).
