Wiring Diagram Index

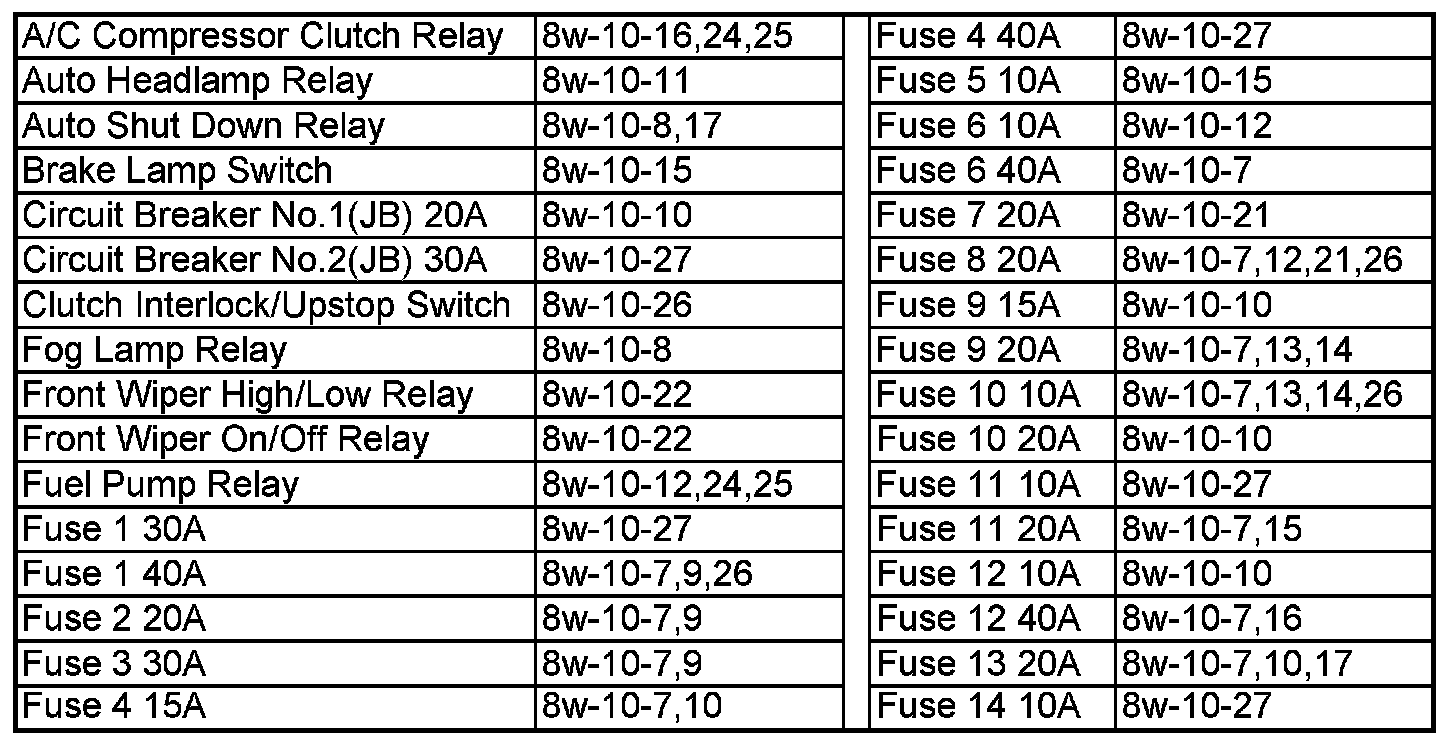

Power Distribution Circuits (A/C Compressor Clutch Relay - Fuse 14(10A)):

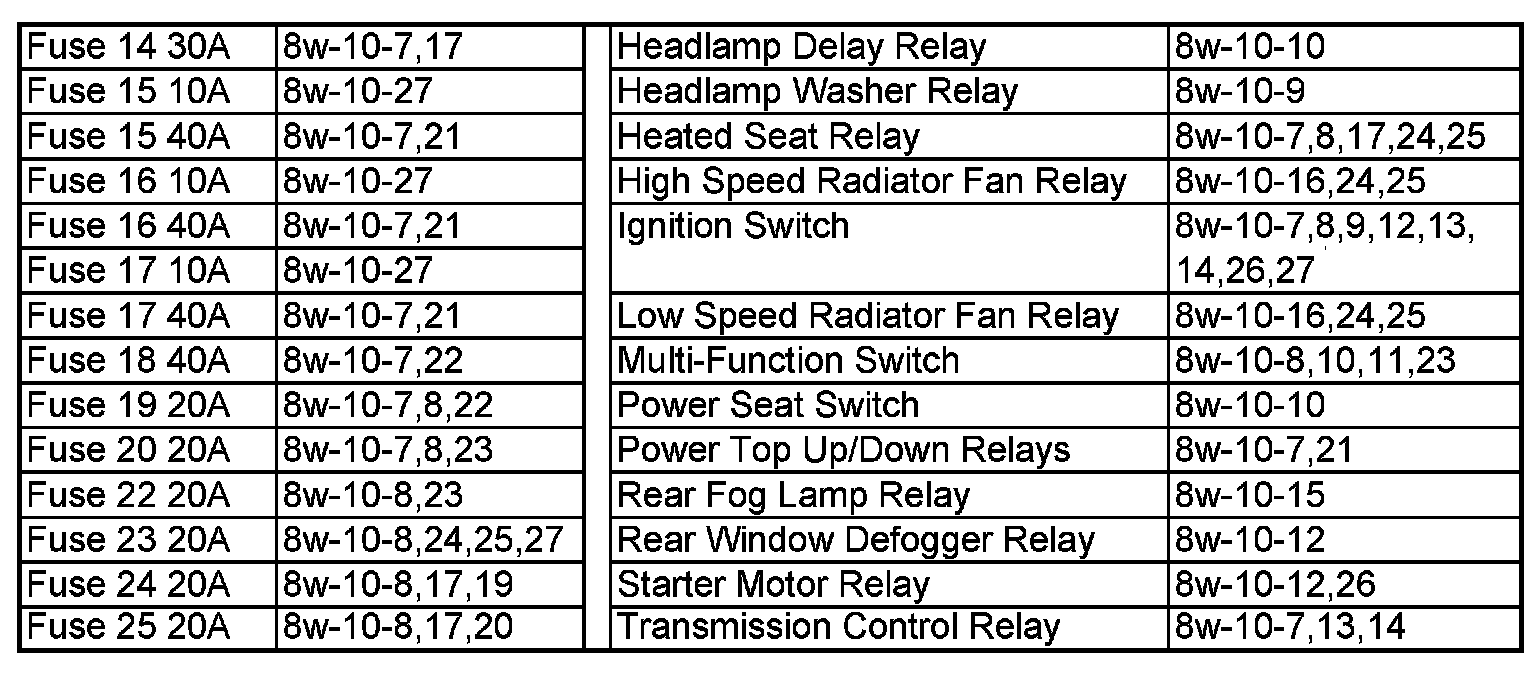

Power Distribution Circuits (Fuse 14(30A) - Transmission Control Relay):

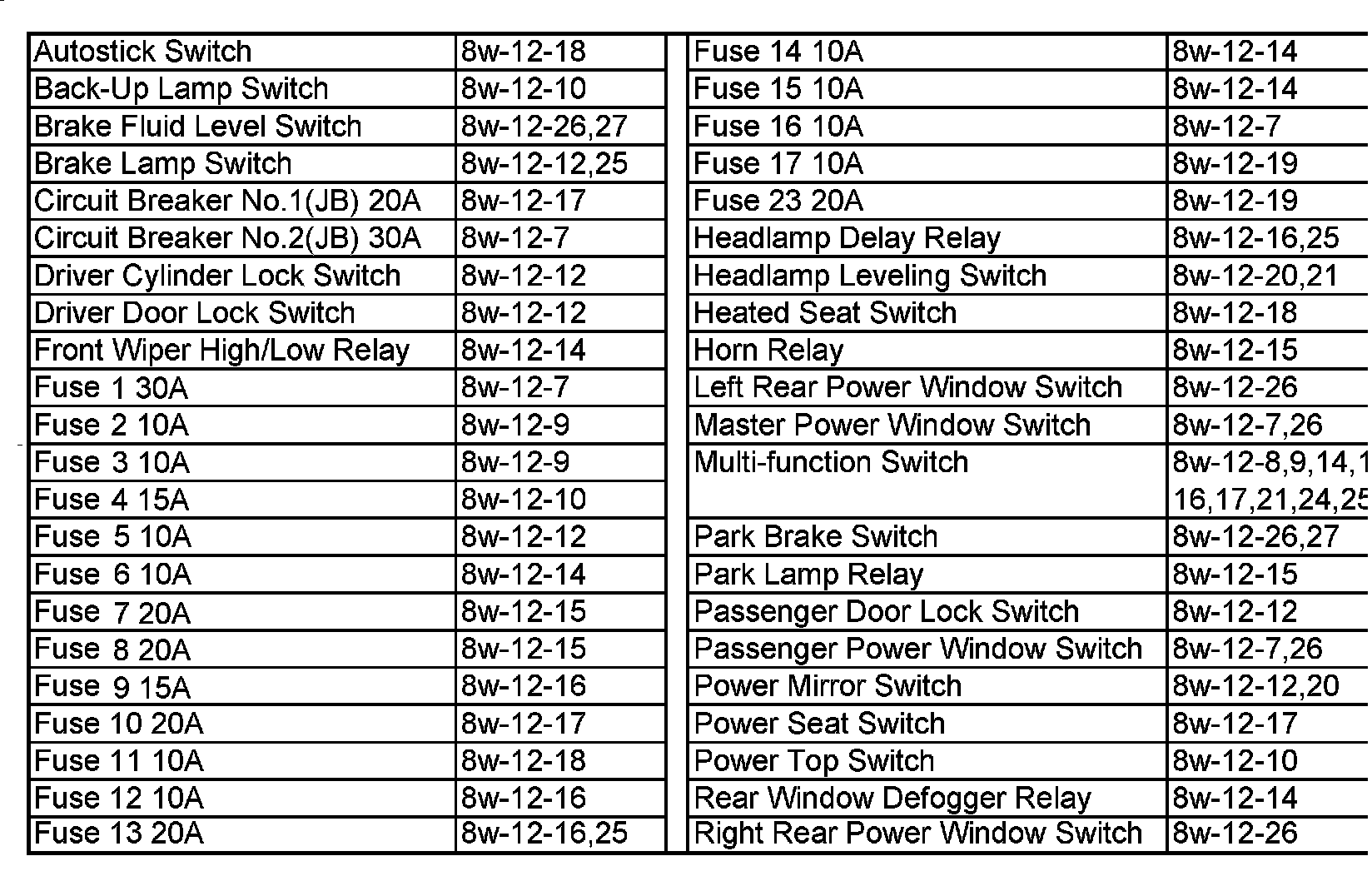

͒�2Autostick Switch - Right Rear Power Window Switch:
